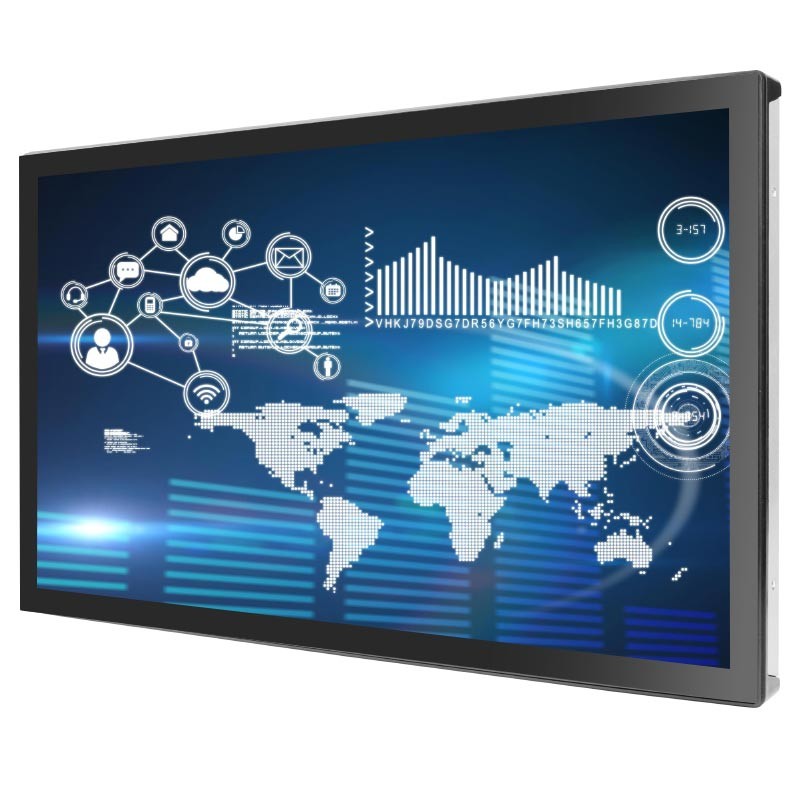

21.5" Industrial Touchscreen Computer 10 Point With Capacitive Technology

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Screen	21.5 Inch	Contrast Ratio	3000:1(Typ.)/2000:1(Min.)
Suggested Resolution	1280×800	Response Time	20(Typ.)/ 25(Max.)
I/O Interface	1-COM, 1-Type_c, 2-USB, 1-RJ45, 1-HDMI, 1-DC 12V, 1-Audio, 1-SIM, 1-TF	Display Active Area	476(H) X 268(V)mm
Touch Screen Transparency	85%	Product Name	Industrial Touchscreen Computer
High Light	21.5" Industrial Touchscreen Computer , Capacitive Industrial Touchscreen Computer , 10Point Industrial Touch screen Computer

Leave a Message

Product Description

PCAP Touch Industrial Touchscreen Computer 21.5 Inch Touch Pc

Industrial Touchscreen Computer Main Features

Projected-Capacitive technology, 10-point multi-touch, very sensitive and accurate
Grade A LCD panel, high resolution 1920x1080
Open frame industrial touchscreen computer, real IP65 waterproof
With various I/O interfaces, support a variety of third-party peripherals
Support system: Windows7, Windows 8, Windows10, Linux
Other sizes can be optional (7’’- 43’’)

Industrial Touchscreen Computer Specifications

KTP-215M-008
Display	Screen	21.5 inch
	Resolution	1920 x 1080
	According to the proportion	16:9
	Brightness	212nit(Typ.)/170(Min.)
	Contrast	3000:1(Typ.)/2000:1(Min.)
	Response Time	20(Typ.)/ 25(Max.)
	View angle	89/89/89/89(Typ.)/80/80/80/80(Min.)(CR≥10)
	Active Display Area	476(H) x 268(V)mm

PC Configuration	CPU	4 core Cortex-A17
	Run	2GB
	Storage	16G

Touch Screen	Touch Method	Capacitive Touch
	Touch Surface Hardness	6H
	Touch Screen Transparency	85%

I/O interface	1-COM, 1-Type_c, 2-USB, 1-RJ45, 1-HDMI, 1-DC 12V, 1-Audio, 1-SIM, 1-TF

Other parameters	Cooling System	Fanless
	Enclosure Material	Metal
	Weight（N.W/G.W）	5.5Kg(1pcs) / 12.3Kg(2pcs in one package)
	Package dimensions	605395200(mm)(2pcs in one package)
	Waterproof Rating	IP65 ( Only for front panel )
	Power Consumption	≤30W
	Working Temperature	0 ~ 50 °C
	Storage Temperature	-20~60°C
	Stroage Humidity	20%~80%
	Stroage Humidity	10%~90%
	Product Size	515.8307.352 (mm)
	Warranty	1 year
	Certification	CCC, ETL, FCC, CE, CB, RoHS

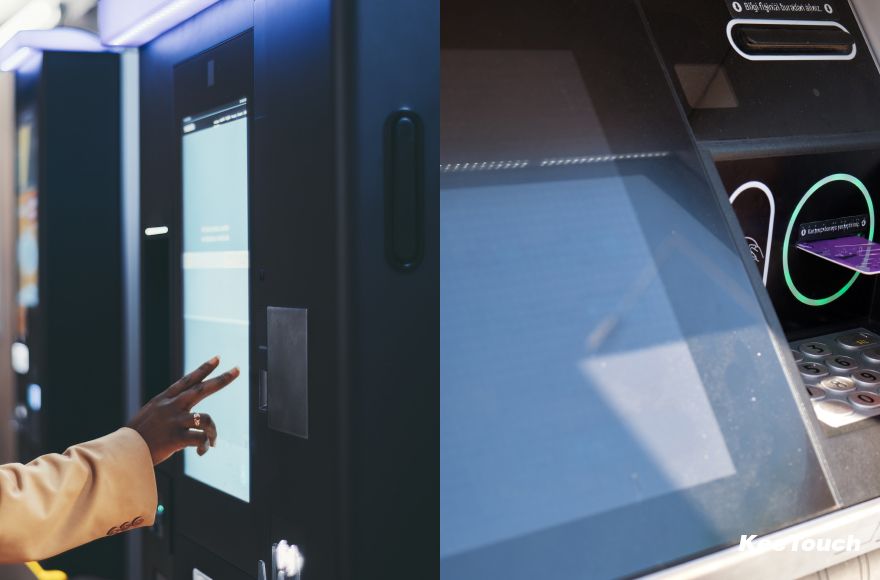

Applications

Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers.
Business Organizations: supermarkets, large-scale shopping malls, exclusive agencies, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, and pharmacies.
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; · Non-profit Organizations: Telecommunications, post offices, hospitals, schools.
