1920x1080 Resolution Industrial Touchscreen Computer 15 Inch

1920x1080 Resolution Industrial Touchscreen Computer 15 Inch
1920x1080 Resolution Industrial Touchscreen Computer 15 Inch 1920x1080 Resolution Industrial Touchscreen Computer 15 Inch 1920x1080 Resolution Industrial Touchscreen Computer 15 Inch 1920x1080 Resolution Industrial Touchscreen Computer 15 Inch 1920x1080 Resolution Industrial Touchscreen Computer 15 Inch
Place of OriginShenzhen,China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0150U-CA4P(KTP-150M-002-02)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability2000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pure LCD Panel Brightness300cd/m²Touch Monitor Brightness255cd/m²
Horizontal Viewing Angle(left/right)80°/80°Vertical Viewing Angle(up/down)70°/70°
Operating Temp.0~50°COperating RH20%~80%
Storage Temp.-20~60°CStorage RH10%~90%
High Light

1920x1080 Industrial Touchscreen Compute

,

FCC Industrial Touchscreen Compute

,

15 Inch AIO Touchscreen Computer

Leave a Message
Product Description

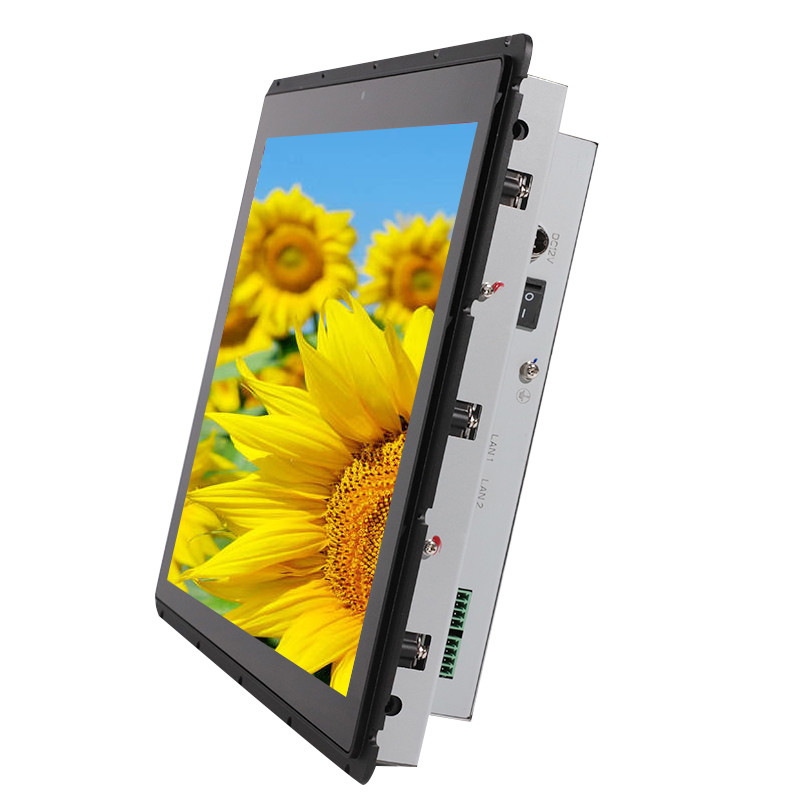

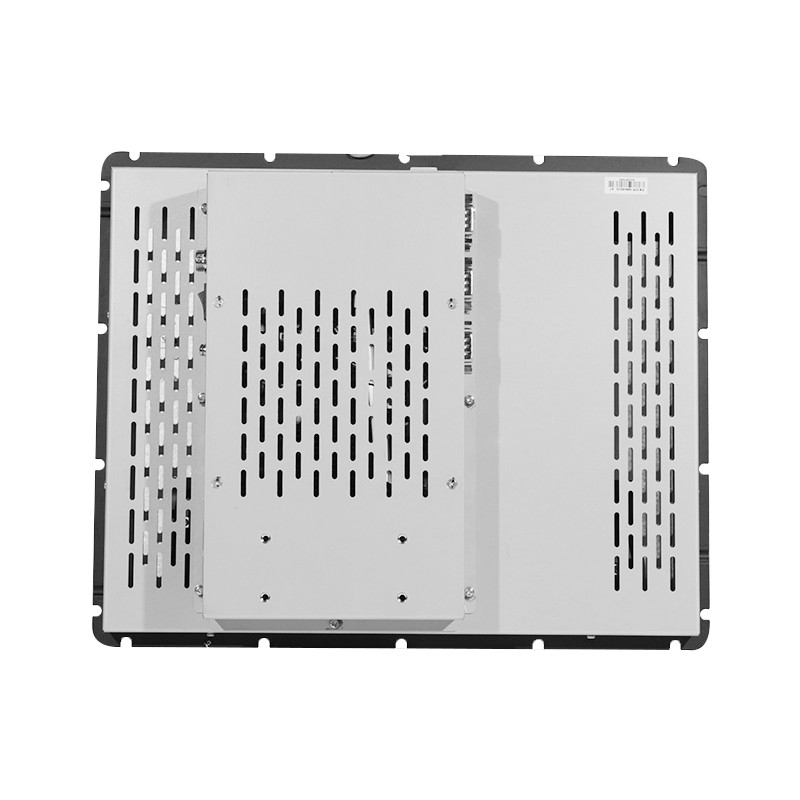

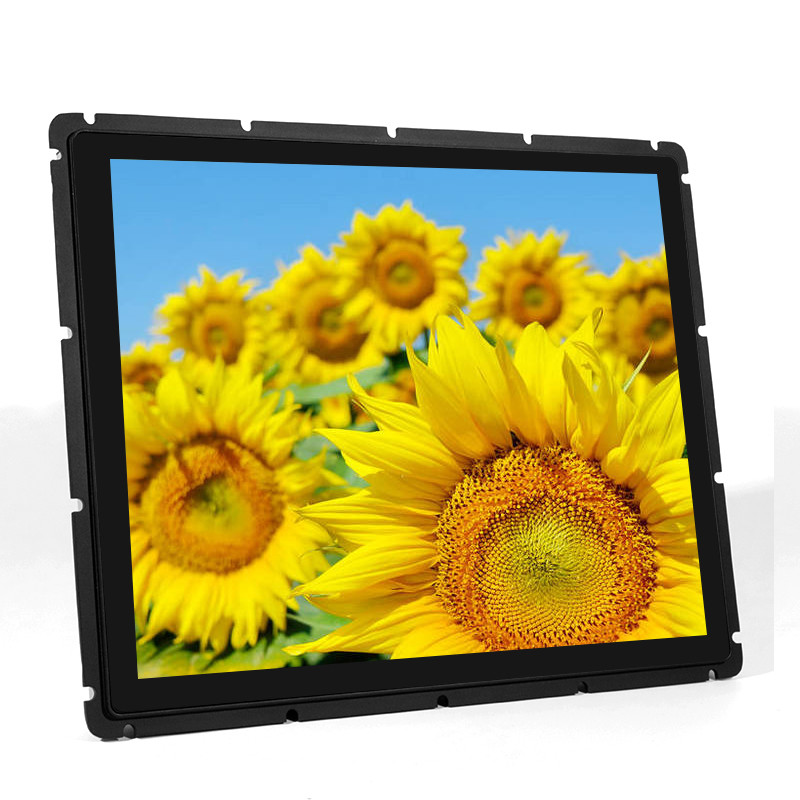

15 inch Industrial Touchscreen Computer 1920x1080 Resolution Industrial Grade



Description of Industrial Touchscreen Computer



This 15 inch industrial touchscreen computer review comes with Projected Capacitive touch screen with high resolution and wide viewing angle. It is industrial grade all-in-one touch computer, sleek and fashionable. Also, with various I/O ports, support a range of third-party peripherals. In addition, the CPU configurations can be customized per customer’s individual requirements.






Industrial Touchscreen Computer Specifications



 Complete Machine

 Model No.

 KOT-0150U-CA4P (P/N:KTP-150M-002-02)

 Series

 All-in-One Touch Computer

 Display Type

5:4 Ratio 15" TFT-LCD

 Active Area

304.1*228.1 (mm)

 Monitor Dimensions (W*H*D)

360.5*292*72 (mm)

 Suggested Resolution

1024*768 @ 60Hz

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

300cd/m2

With Touch Monitor

255cd/m2

 Response Time (Typ.)

25ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 80°/80°

 Vertical(up/down)

 70°/70°

 Contrast Ratio (Typ.)

700:1

 Frequency (H/V)

37.9~80KHz / 60~75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 Computer parameters

CPU

Freescale i.HX6Q(4 Core)

RAM

Onboard memory: Support DDR3, 2GB(default); Onboard storage: 8GB(default) EMMC Flash

Interface

4*USB, 1*HDMI, 5* serial port, LAN*1

LVDS

LVDS*1 (dual channel),support 24Bit

HDMI

Support HDMI2.0, Max Resolution: 1080p@120Hz

LAN

 RJ45(10/100/1000Mbps)

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

15" Capacitive touch screens

Touch input

USB

Response Time

≤8ms

Hardness

6H

Light Transmittance

≥85%

Support System

Android/windows(optional)

Active Area

305.1*229.1 (mm)

Thickness

4.3±0.2 (mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%






Application:



industrial touchscreen computer solution are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



79





Advantages of PCAP Industrial Touchscreen Computer



1. Multitouch capability: PCAP touchscreens support multitouch gestures such as pinch-to-zoom and swipe, making them more intuitive and user-friendly.



2. High-resolution display: high brightness panel pc typically have high-resolution displays, providing sharp and clear visuals for applications such as machine control, process monitoring, and data visualization.



3. Flexibility: industrial touchscreen computer linux can be integrated with various hardware and software systems to meet specific application requirements. They can also be mounted in different orientations and configurations to fit different installation spaces.Overall, PCAP industrial touchscreen computers offer a reliable, durable, and user-friendly solution for a wide range of industrial applications.





Why choose us?


1. We are a leading provider of industrial grade touch products and touch solutions since 2006.



2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.



3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.



4. Professional after-sales team at any time to provide services to customers.






FAQ



1. Can you produce the Industrial Touchscreen Computer according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



2. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



3. What is your delivery time for the Industrial Touchscreen Computer?

3-5 work days for inventory orders, 7-15 business days for bulk production.
