High Brightness 21.5 Inch Touch Monitor 16:9 Ratio Anti Vandal Anti Glare

High Brightness 21.5 Inch Touch Monitor 16:9 Ratio Anti Vandal Anti Glare
High Brightness 21.5 Inch Touch Monitor 16:9 Ratio Anti Vandal Anti Glare High Brightness 21.5 Inch Touch Monitor 16:9 Ratio Anti Vandal Anti Glare High Brightness 21.5 Inch Touch Monitor 16:9 Ratio Anti Vandal Anti Glare High Brightness 21.5 Inch Touch Monitor 16:9 Ratio Anti Vandal Anti Glare High Brightness 21.5 Inch Touch Monitor 16:9 Ratio Anti Vandal Anti Glare
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0215U-CA4PH(KOT-215P-028)
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

carton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pure LCD Panel Brightness (Typ.)1500cd/m²Touch Monitor Brightness (Typ.)1245cd/m²
Video InputVGA/DVI/HDMIViewing Angle(Typ.at CR>10))89°/89°/89°/89°
Contrast Ratio (Typ.)1000:1Display Type16:9 Ratio 21.5" TFT-LCD
Product NameHigh Brightness Touch MonitorAgency ApprovalsCCC, UL, FCC, CE, CB, RoHS
High Light

21.5 Inch Touch Monitor Anti Vandal

21.5 Inch Touch Monitor Anti Glare

,

1245cd/m² High Brightness Touch Monitor

Leave a Message
Product Description

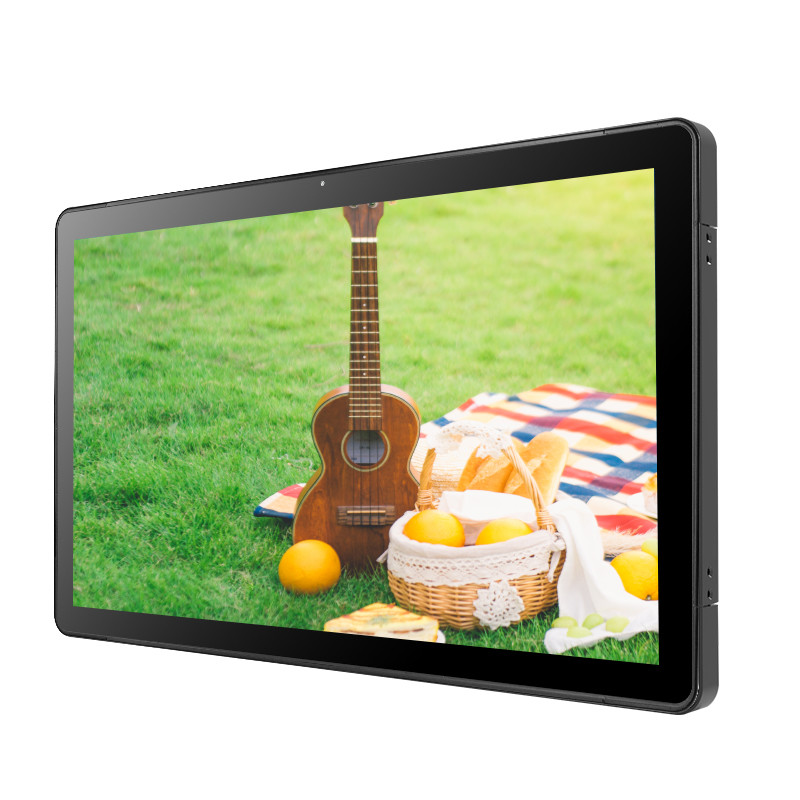

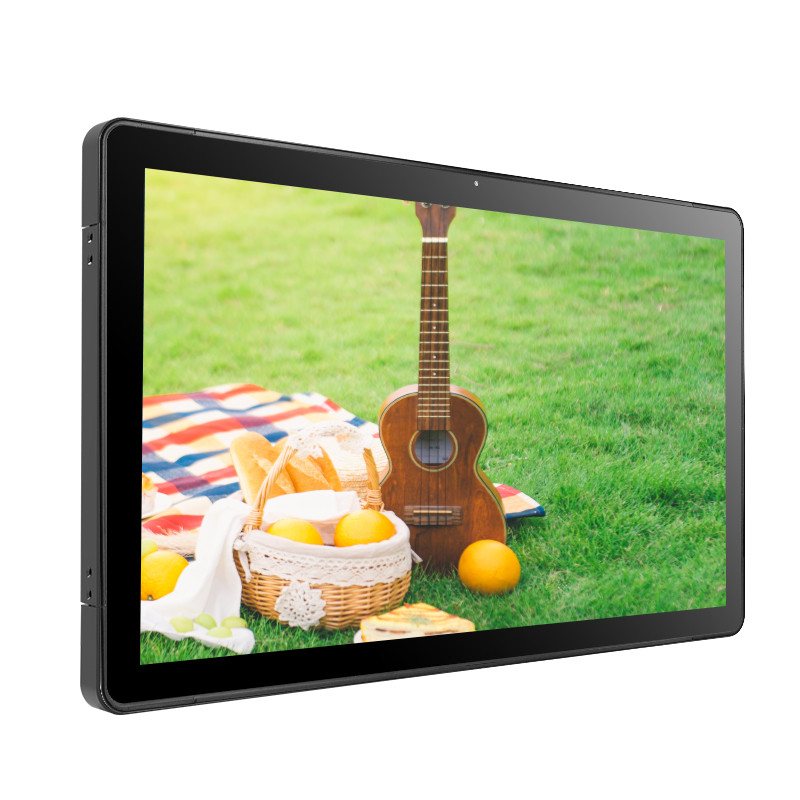

21.5 Inch High Brightness Touch Monitor 16:9 Ratio Anti-Vandal Anti-Glare



This 21.5 inch high brightness touch monitor delivers high durability, accuracy and multi-touch support, which can be used normally in very harsh environments. It is an anti-glare, dust-proof, vandal-proof and IP65 front side waterproof high brightness touch monitor. VGA, DVI and HDMI interfaces are provided for use, USB port for touch. In addition, other sizes (7''-43'') are available.


High Brightness Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0215U-CA4PH(P/N:KOT-215P-028)

 Series

  OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

Active Area

477.6*269.6(mm)

 Monitor Dimensions (W*H*D)

535.1*327.1*56.4(mm)

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD   Panel

1500cd/m²

With Touch Monitor

1245cd/m²

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI/HDMI

 Frequency (H/V)

40~90KHz / 50~75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

-15~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

30,000 Hours

 LED Back Light Life (Typ.)

30,000 Hours

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Touch screen Type

 21.5”Projected Capacitive Touchscreen,

 Touch System Interface

 USB(or Serial port,one point)

 Support System

 10 points in win7

 Regular Warranty

1 year


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

High Brightness Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
