21.5 Inch High Brightness Touch Monitor 1920x1080 High Resolution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Regular Warranty | 1 Year | Frequency (H/V) | 40～90KHz / 50～75Hz |
|---|---|---|---|
| Operating Temp. | -20～70°C | Operating RH | 20%～80% |
| Storage Temp. | -30～80°C | Storage RH | 10%～90% |
| Response Time (Typ.) | 5ms | Support System | 10 Points In Win7 |
| High Light | 90KHz High Brightness Touch Monitor,CCC High Brightness Touch Monitor,1920x1080 21.5 Inch Touch Monitor | ||
Product Description

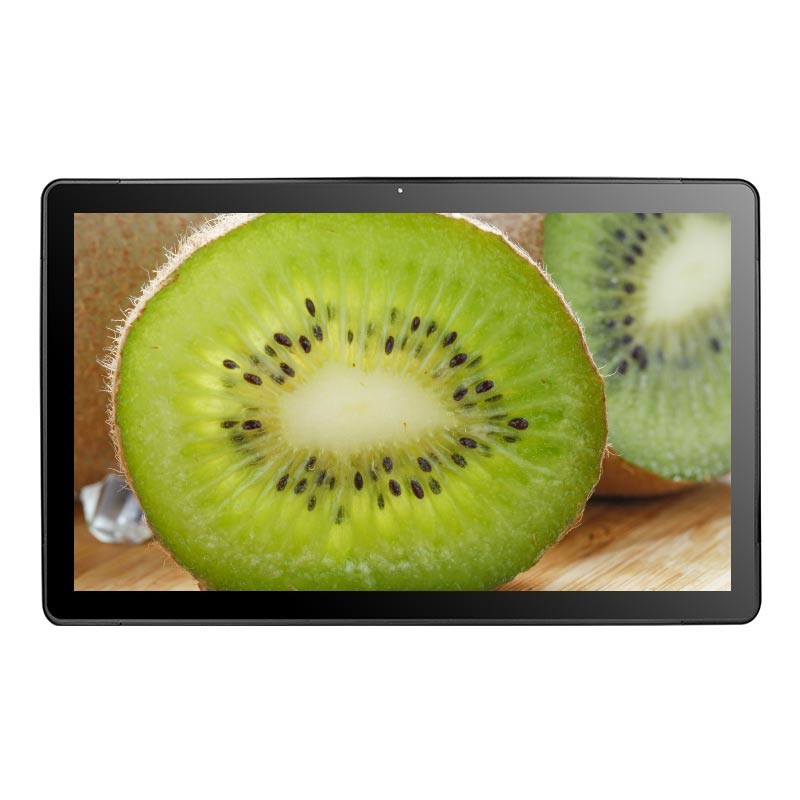

21.5 Inch High Brightness Touch Monitor 1920x1080 High Resolution
High Brightness Touch Monitor Main Features
This high brightness PCAP touch monitor comes with features as following: 1920x1080 high resolution, 16:9 ratio, full viewing angle and 1000:1 contrast ratio. Moreover, it delivers anti-glare and vandal-proof function. VGA and HDMI interfaces are provided for use, a USB port for touch input. Support various systems, such as XP, WIN7, WIN8, WIN10, Linux, Android. Also, with over 40 engineers, OEM and ODM are welcomed.
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0215U-CA4P(P/N:KOT-215P-028-02) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 476.1*268.1(mm) | |
Monitor Dimensions (W*H*D) | 535.1*327.1*67.3(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1500cd/m² |
With Touch Monitor | 1275cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 89°/89° |
Vertical(up/down) | 89°/89° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/HDMI | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | -20～70°C |
Operating RH | 20%～80% | |
Storage Temp. | -30～80°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
Weight（N.W/G.W） | 8.3Kg（1pcs）16.8Kg(2 pcs in one package) | |
Package dimensions | 635*190*435mm | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 21.5” Projected Capacitive Touchscreen, | |
Touch System Interface | USB | |
Support System | 10 points in win7 | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of High Brightness Touch Monitor
1.Improved visibility: High brightness touch monitors are designed to produce brighter and clearer images, which makes them ideal for use in bright environments such as outdoor displays, retail stores, and other high-traffic areas. This improved visibility ensures that the content displayed on the screen is easily readable and visible even in direct sunlight.
2.Enhanced user experience: High brightness touch monitors offer an enhanced user experience due to their responsive touch screen technology.
3.Increased durability: High brightness touch monitors are designed to withstand harsh environments, including extreme temperatures and humidity levels. This increased durability ensures that the device can operate optimally in various settings, including outdoor environments.
4.Flexibility: High brightness touch monitors can be used in a wide range of settings, including retail stores, hospitals, museums, and outdoor events. They can be used to display information, interactive exhibits, and other content, making them a versatile solution for many applications.
5.Cost-effective: High brightness touch monitors are a cost-effective solution for many applications. They eliminate the need for separate touch screen devices, reducing the total cost of ownership. Additionally, they can be used in a wide range of settings, reducing the need for multiple displays.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7. Do you give any discount for the high brightness touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
