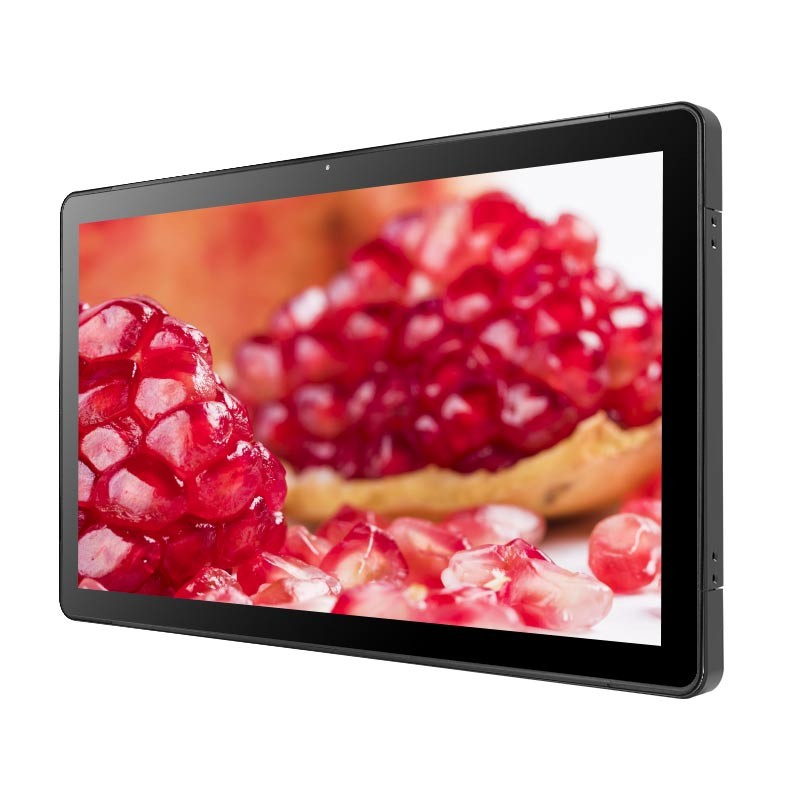

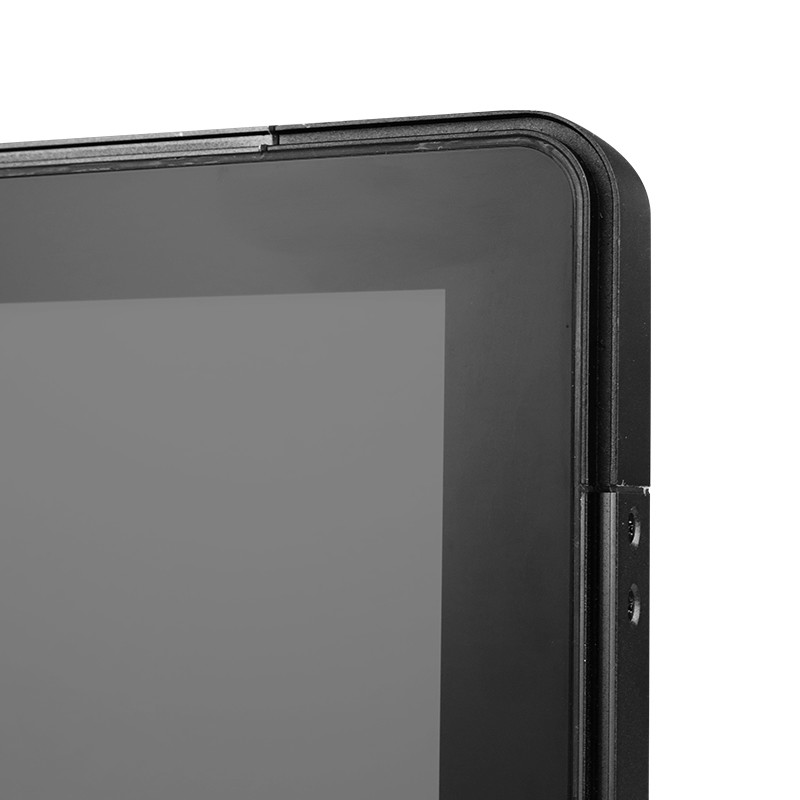

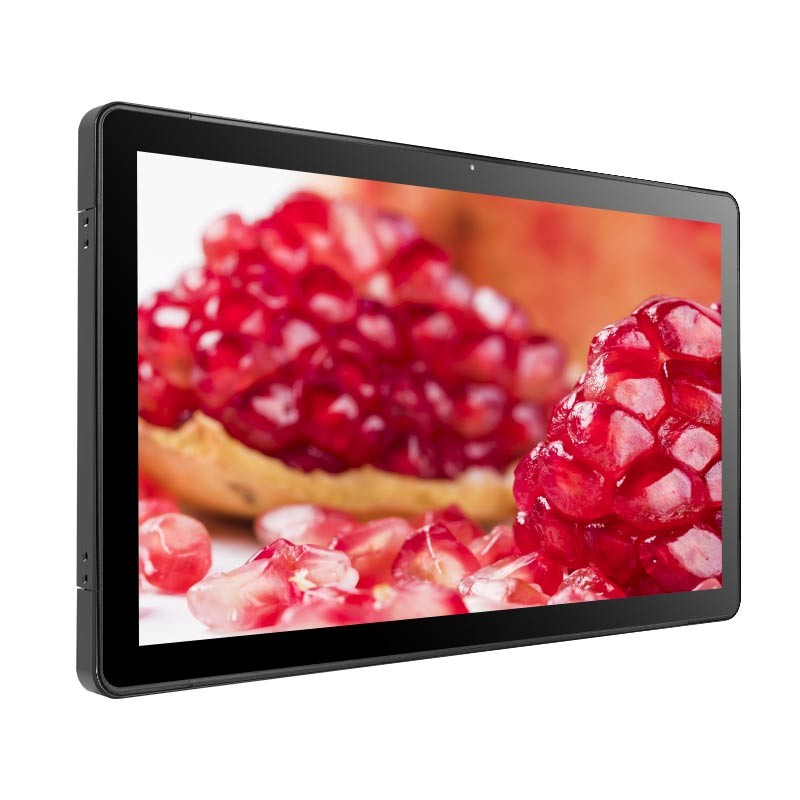

1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks

1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks
1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks 1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks 1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks 1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks 1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks 1500 Nits 21.5 Inch High Brightness Touch Monitor For Outdoor Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-215P-028-02
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

carton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 21.5" TFT-LCD
Active Area476.1*268.1(mm)Suggested Resolution1920*1080 @ 60Hz
Support Colors16.7MBrightness (Typ.)Pure LCD Panel:1500cd/m²
Response Time (Typ.)5msContrast Ratio (Typ.)1000:1
High Light

IP65 Waterproof High Brightness Touch Monitor

,

1500cd/m² High Brightness Touch Monitor

,

Outdoor Kiosks 21.5 Inch Touch Monitor

Leave a Message
Product Description


21.5 Inch High Brightness Touch Monitor 1500 Nits For Outdoor Kiosks


High Brightness Touch Monitor Main Features

With PCAP touchscreen technology, multi touch, great interactive experience

High brightness touch monitor, readable under direct sunlight

High resolution, contrast ratio, super image quality with full viewing angle

Anti-glare and IP65 surface waterproof high brightness touch monitor

VGA & HDMI interfaces, USB port for touch

Support system: XP, WIN7, WIN8, WIN10, Linux, Android

Other sizes can be offered (7''- 43'')




High Brightness Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0215U-CA4P(P/N:KOT-215P-028-02)

 Series

  OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

Active Area

476.1*268.1(mm)

 Monitor Dimensions (W*H*D)

535.1*327.1*67.3(mm)

 Suggested Resolution

1920*1080 @  60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

1500cd/m²

With Touch Monitor

1275cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/HDMI

 Frequency (H/V)

40~90KHz / 50~75Hz

 Power Supply

Type:   External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating  Temp.

-20~70°C

Operating RH

20%~80%

Storage  Temp.

-30~80°C

Storage RH

10%~90%

 MTBF

30,000  Hours

 LED Back Light Life (Typ.)

30,000  Hours

 Weight(N.W/G.W)

8.3Kg(1pcs)16.8Kg(2 pcs in one package)

 Package   dimensions

635*190*435mm

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Touch screen Type

 21.5” Projected Capacitive Touchscreen,

 Touch System Interface

 USB


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.
