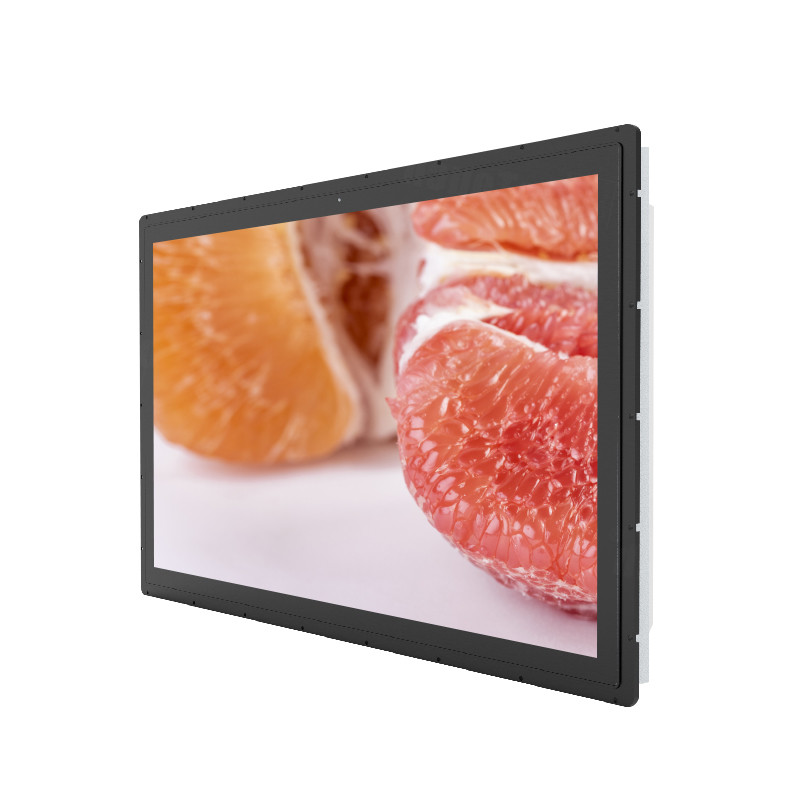

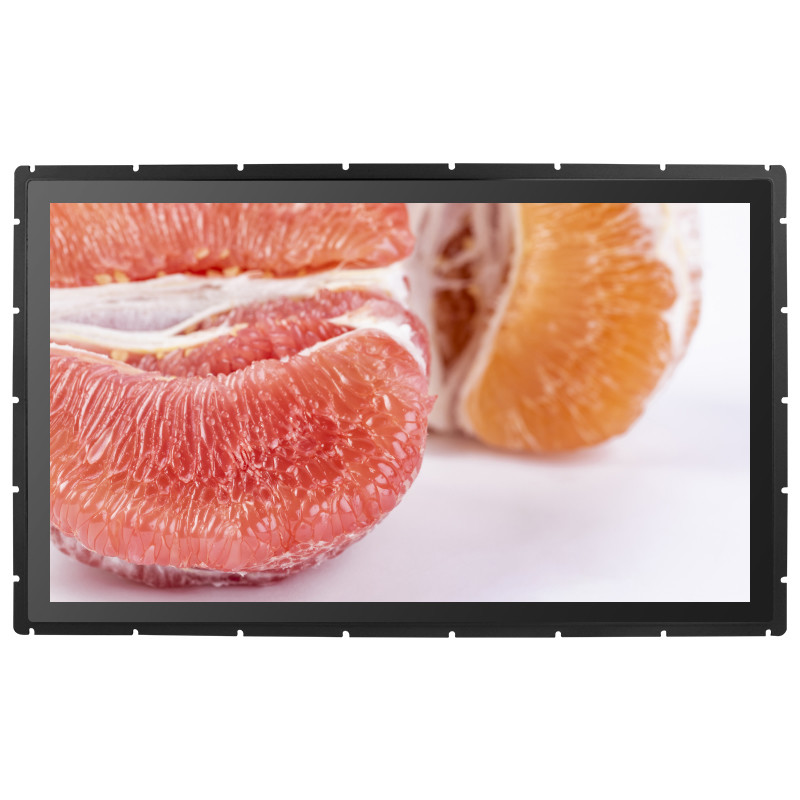

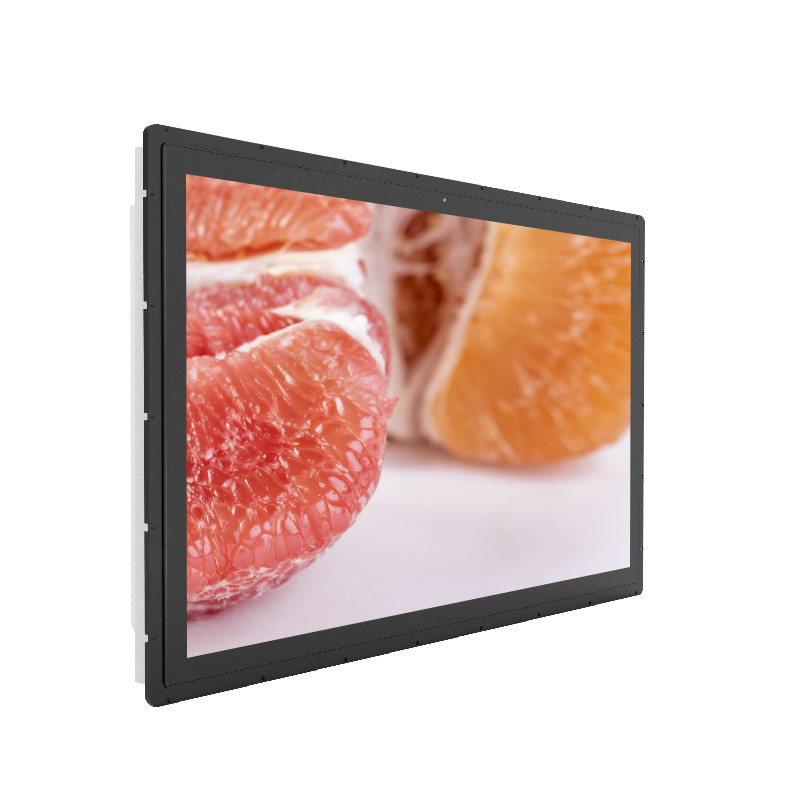

32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors

32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors
32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors 32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors 32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors 32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors 32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors 32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-320P-025(KOT-0320U-CA4PH)
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

carton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 32" TFT-LCD
Suggested Resolution1920x1080 @ 60HzSupport Colors16.7M
Response Time≤10msSupport SystemXP,WIN7,WIN8,WIN10,Linux,Android
Light Transmittance≥83%Hardness6H
High Light

1000 Nits High Brightness Touch Monitor

,

2000 Nits High Brightness Touch Monitor

,

Sunlight Visible 32 Inch Touch Monitor

Leave a Message
Product Description


32 Inch High Brightness Touch Monitor 1000-2000 Nits Sunlight Visible For Outdoors



High Brightness Touch Monitor Main Features

This PCAP touch monitor comes with features as following: 1920x1080 high resolution, 16:9 ratio, full viewing angle and 4000:1 contrast ratio. Also, it has anti-glare, anti-vandal and IP65 surface waterproof functions. VGA, DVI and HDMI interfaces are provided, and a USB port for touch input. Multiple mounting methods are available, including VESA mount, horizontal and vertical brackets mount. Also, we offer customized services.




High Brightness Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0320U-CA4PH(P/N:KOT-320P-025)

 Series

  OT

 Display Type

16:9 Ratio 32" TFT-LCD

 Active Area

698.4*392.85 (mm)

 Monitor Dimensions (W*H*D)

780*474*84.2(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

1000cd/m² , 1500cd/m² , 2000cd/m²

With Touch Monitor

850cd/m² , 1250cd/m² , 1650cd/m²

 Response Time (Typ.)

6.5ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

4000:1(Typ.)/3000:1(Min.)

 Video Input

VGADVIHDMI

 Frequency (H/V)

60~73KHz / 47~63Hz

 Power Supply

Type: External brick

Display voltage: DC 24V/ 10A
 Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

30,000  Hours

 LED Back Light Life (Typ.)

30,000  Hours

 Power Consumption

≤150W/190W/240W

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

32" Capacitive touch screens

Touch  input

USB

Response Time

≤10ms

Hardness

≥6H

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Products Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.


2. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What package do you provide?

Our package usually is carton.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


6. What are the shipping ways?

We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


7. Do you give any discount for the high brightness touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
