4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness

4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness
4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness 4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness 4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness 4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness 4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness 4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-320P-025(KOT-0320U-CA4PH)
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

carton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 32" TFT-LCD
Suggested Resolution1920x1080 @ 60HzOperating Temp.0~50°C
Operating RH20%~80%Storage Temp.-20~60°C
Storage RH10%~90%Regular Warranty1 Year
High Light

Vandal Proof 32 Inch Touch Monitor

,

IP65 32 Inch Touch Monitor

,

TFT LCD High Brightness Touch Monitor

Leave a Message
Product Description

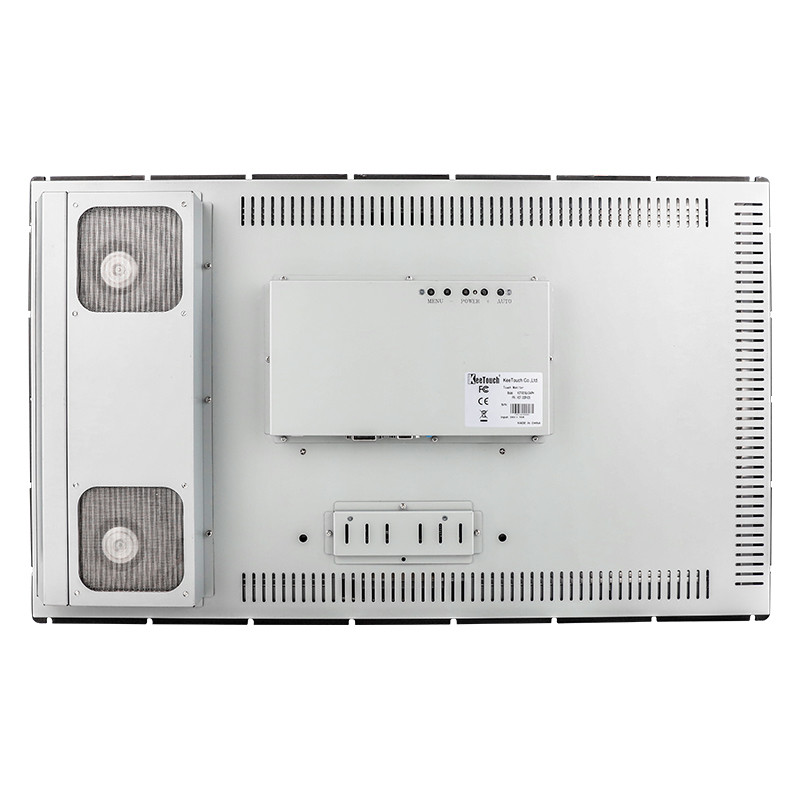

32 Inch High Brightness Touch Monitor 4000:1 High Contrast Ratio



High Brightness Touch Monitor Main Features

This high brightness touch monitor comes with anti-glare, vandal-proof and IP65 waterproof functions, full viewing angle, high contrast ratio, delivering high quality image with super touch Experience. It provides VGA & DVI & HDMI interfaces, also USB for touch input. With over 40 engineers, OEM and ODM services are offered. Besides, other sizes (7''-43'') are available.




High Brightness Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0320U-CA4PH(P/N:KOT-320P-025)

 Series

  OT

 Display Type

16:9 Ratio 32" TFT-LCD

 Active Area

698.4*392.85 (mm)

 Monitor Dimensions (W*H*D)

780*474*84.2(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

1000cd/m² , 1500cd/m² , 2000cd/m²

With Touch Monitor

850cd/m² , 1250cd/m² , 1650cd/m²

 Response Time (Typ.)

6.5ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

4000:1(Typ.)/3000:1(Min.)

 Video Input

VGADVIHDMI

 Frequency (H/V)

60~73KHz / 47~63Hz

 Power Supply

Type: External brick

Display voltage: DC 24V/ 10A
Input (line) voltage:100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

30,000 Hours

 LED Back Light Life (Typ.)

30,000 Hours

 Mount Interface

 Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

32" Capacitive touch screens

Touch  input

USB

Hardness

≥6H

Light Transmittance

≥83%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Products Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)


5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
