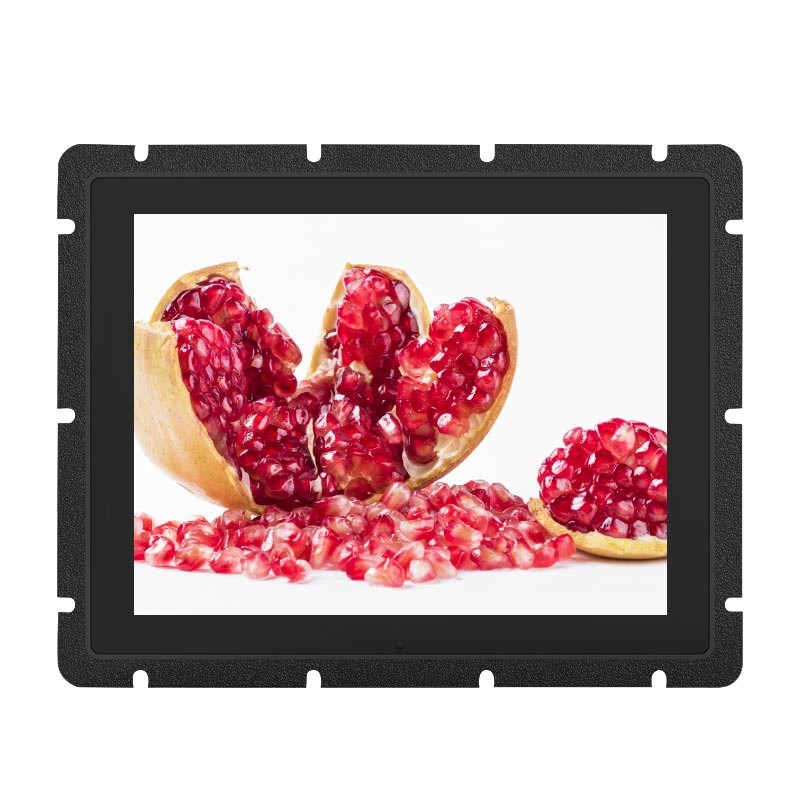

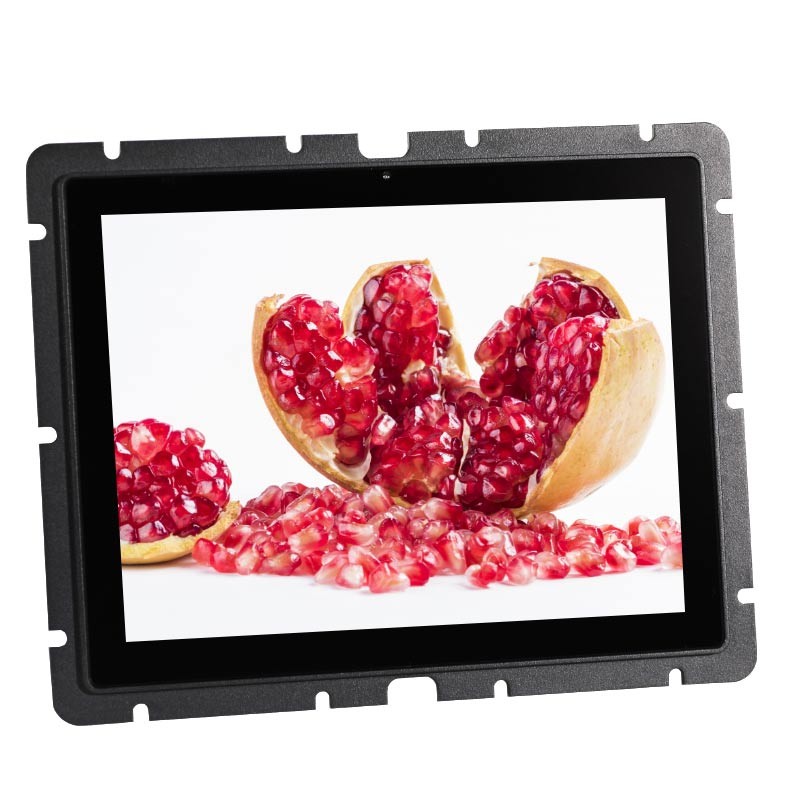

High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved

High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0104U-CA4PH (KOT-104P-010)
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

2pcs in one package
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type4:3 Ratio 10.4" TFT-LCD
Suggested Resolution1024*768 @ 60HzSupport Colors16.2M
Response Time16msContrast Ratio (Typ.)1000:1
Video InputVGA/DVIFrequency (H/V)30~80KHz / 60~75Hz
High Light

10.4 Inch Outdoor Touch Monitor

,

1500Nits Outdoor Touch Monitor

,

ETL High Brightness Touch Monitor

Leave a Message
Product Description


10.4 Inch High Brightness Touch Monitor 1500 Nits For Outdoor Use



High Brightness Touch Monitor Main Features

KeeTouch PCAP touch screen, multi-touch points, great interactive experience

High brightness, visible under direct sunlight

1000:1 high contrast ratio, high image quality with broad viewing angle

Anti-vandal high brightness touch monitor

VGA & DVI interfaces, USB for touch

Support system: XP, WIN7, WIN8, WIN10, Linux, Android

Other sizes are optional (7''- 43'')




High Brightness Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0104U-CA4PH(P/N:KOT-104P-011)

 Series

  OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

213*160.2(mm)

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

≥1500cd/m²

With Touch Monitor

≥1240cd/m²

 Response Time (Typ.)

16ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 80°/80°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

 1000:1

 Video Input

 VGA/DVI

 Frequency (H/V)

 30~80KHz / 60~75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

-15~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

≥ 30,000 Hours

 LED Back Light Life (Typ.)

≥ 30,000 Hours

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤18W

 Mount Interface

 1.VESA 75mm

 2.Mount   bracket, horizontal or vertical mount

 Weight(N.W/G.W)

 2.2Kg(1pcs) /6.4Kg(2pcs in one package)

 Package dimensions

 350*221*298(mm)(2pcs in one package)

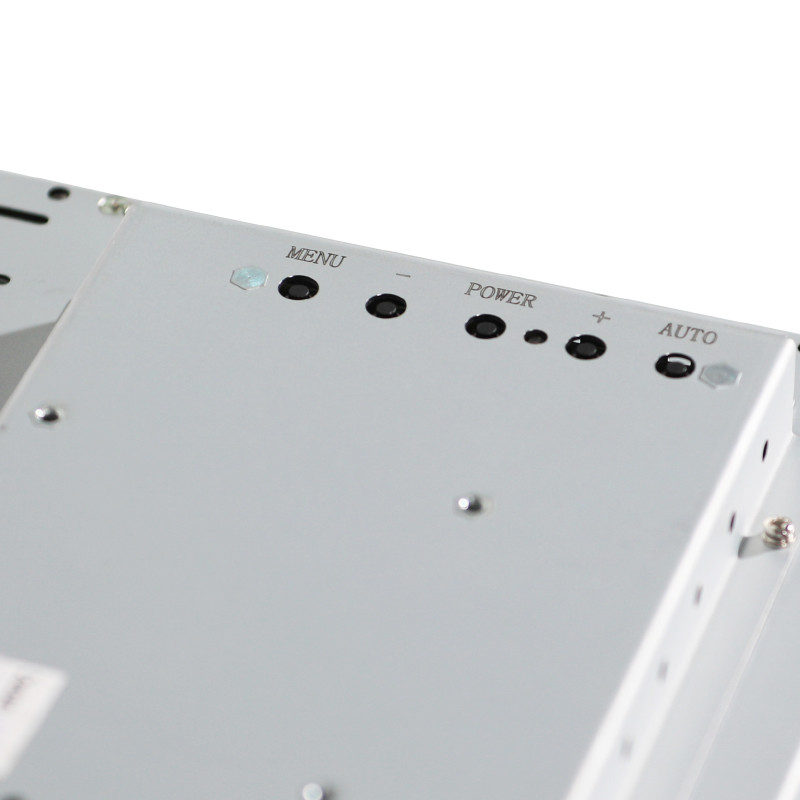

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

10.4" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>80%

Support System

Multi-Touch : WIN7、WIN8、WIN10

Single Touch : XP

Active Area

215.6*163(mm)

Thickness

3.75±0.2mm

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Products Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.


2. What's your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the high brightness touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
