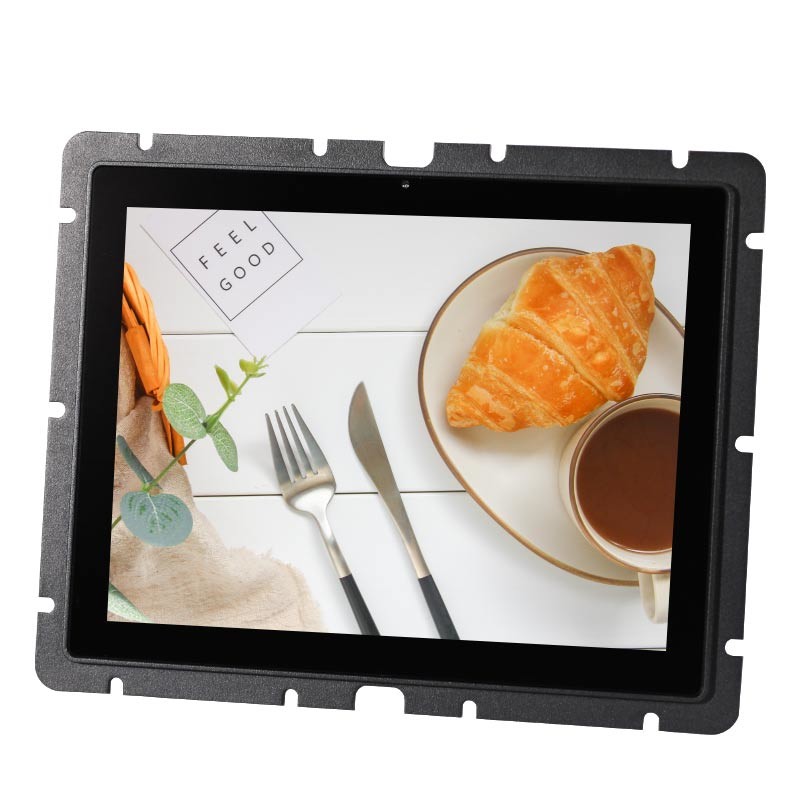

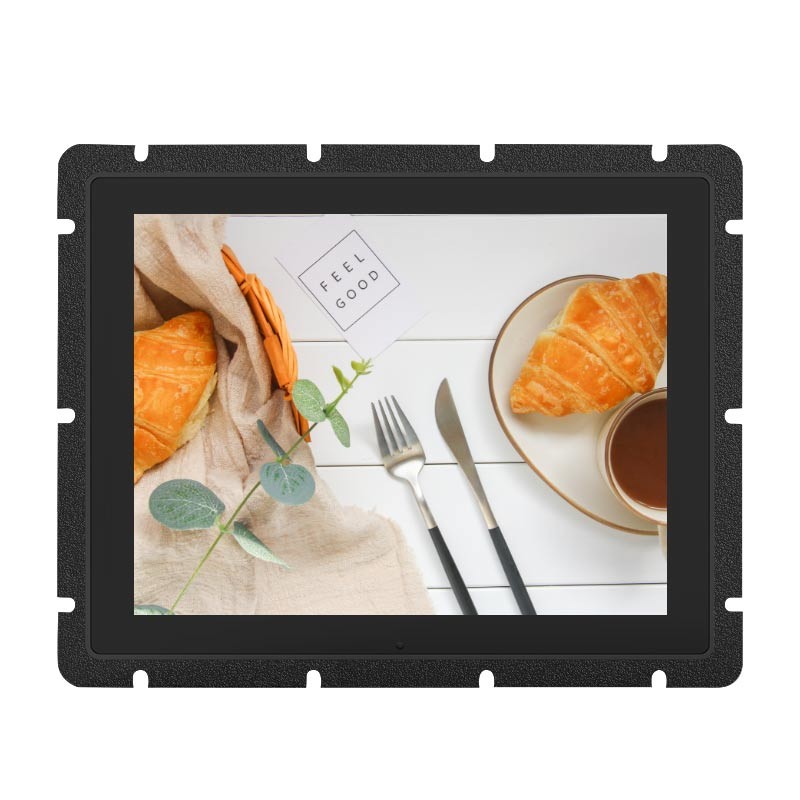

10.4 Inch High Brightness Touch Monitor 1000:1 Contrast Ratio For Kiosks
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | KeeTouch |
| Certification | CCC, UL, FCC, CE, CB, RoHS |
| Model Number | KOT-0104U-CA4PH (KOT-104P-010) |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
Packaging Details | 2pcs in one package |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10000 Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temp. | -15～50°C | Operating RH | 20%～80% |
|---|---|---|---|
| Storage Temp. | -20～60°C | Storage RH | 10%～90% |
| Response Time | 16ms | Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI | Frequency (H/V) | 30～80KHz / 60～75Hz |
| High Light | ODM High Brightness Touch Monitor,Anti Vandal Kiosk Touch Monitor,10.4 Inch Kiosk Touch Monitor | ||
Product Description
10.4 Inch High Brightness Touch Monitor 1000:1 Contrast Ratio For Kiosks
High Brightness Touch Monitor Main Features
This high brightness touch monitor comes with anti-vandal functions, broad viewing angle, high contrast ratio, delivering super quality image with great touch experience. It provides VGA &DVI interfaces, also USB for touch input. With over 40 engineers, OEM and ODM services can be for your option. Besides, other sizes (7''-43'') are available.
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0104U-CA4PH (P/N:KOT-104P-011) | |
Series | OT | |
Display Type | 4:3 Ratio 10.4" TFT-LCD | |
Active Area | 213*160.2(mm) | |
Monitor Dimensions (W*H*D) | 276.4*219.4*43.5(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | ≥1500cd/m² |
With Touch Monitor | ≥1240cd/m² | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -15～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥ 30,000 Hours | |
LED Back Light Life (Typ.) | ≥ 30,000 Hours | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤18W | |
Mount Interface | 1.VESA 75mm 2.Mount bracket, horizontal or vertical mount | |
Package dimensions | 350*221*298(mm)(2pcs in one package) | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 10.4" capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Light Transmittance | >80% |
Support System | Multi-Touch : WIN7、WIN8、WIN10 Single Touch : XP |
Active Area | 215.6*163(mm) |
Touch Test | ≥ 50,000,000 次 |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Products Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a manufacturer of touch solution, founded in 2006, located in Shenzhen, China.
2. What's your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
