10.4 Inch High Brightness Touch Monitor Anti Vandal With PCAP Multi Touch

10.4 Inch High Brightness Touch Monitor Anti Vandal With PCAP Multi Touch
10.4 Inch High Brightness Touch Monitor Anti Vandal With PCAP Multi Touch 10.4 Inch High Brightness Touch Monitor Anti Vandal With PCAP Multi Touch 10.4 Inch High Brightness Touch Monitor Anti Vandal With PCAP Multi Touch 10.4 Inch High Brightness Touch Monitor Anti Vandal With PCAP Multi Touch
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0104U-CA4PH
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability2000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suggested Resolution1024*768 @ 60HzContrast Ratio (900:1
Video InputVGA/DVIActive Area211.1*158.4(mm)
Brightness-Pure LCD Panel≥1000cd/m²Display Type4:3 Ratio 10.4" TFT-LCD
Product NameHigh Brightness Touch MonitorTouch InputUSB
Display VoltageDC 12V±5% 3.3AResponse Time (Typ.)16ms
High Light

10.4 Inch High Brightness Touch Monitor

,

High Brightness Touch Monitor Anti Vandal

,

Multi Touch PCAP Touch Monitor

Leave a Message
Product Description

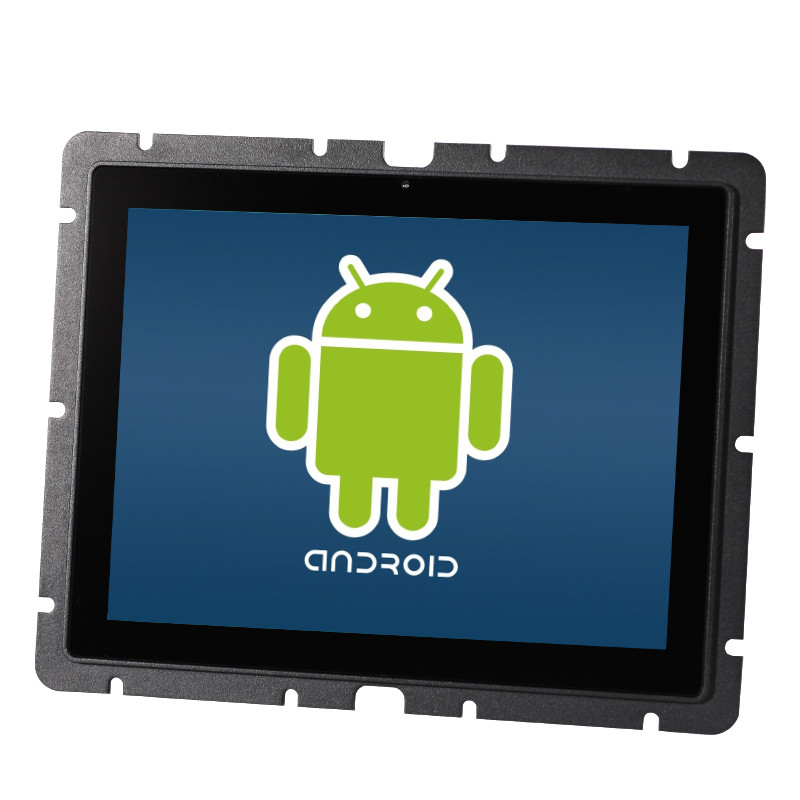

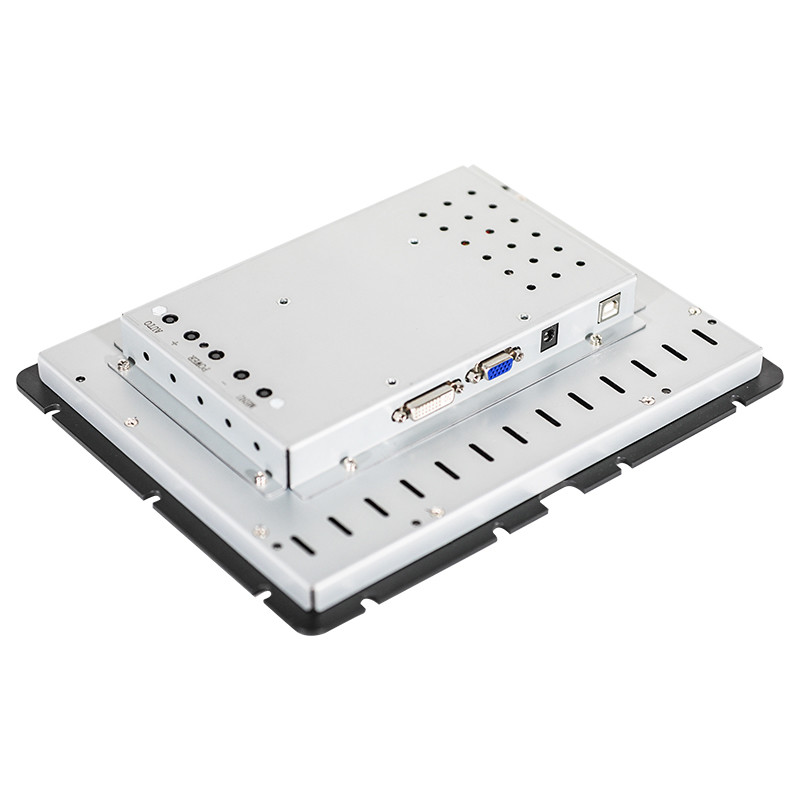

10.4 Inch Anti-Vandal High Brightness Touch Monitor With PCAP Multi Touch


High Brightness Touch Monitor Main Features


  • Anti-glare, anti-vandal high brightness touch monitor

  • PCAP multi touch screen, high quality touch experience

  • High brightness:1000 - 2000 cd/m2 optional

  • Pure flat designed high brightness touch monitor, IP65 frontside waterproof

  • Interface: DVI + VGA interfaces,

  • Touch Input: USB

  • Support OS: XP,WIN7,WIN8,WIN10




High Brightness Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0104U-CA4PH (P/N:KOT-104P-011)

 Series

 OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

211.1*158.4(mm)

 Monitor Dimensions (W*H*D)

 276.4*219.4*43.5(mm)

 Suggested Resolution

1024*768 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

≥1000cd/m2

With Touch Monitor

≥800cd/m2

 Response Time (Typ.)

16ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 75°/75°

 Vertical(up/down)

 75°/75°

 Contrast Ratio (Typ.)

 900:1

 Video Input

 VGA/DVI

 Frequency (H/V)

 30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥ 30,000 Hours

 LED Back Light Life (Typ.)

≥ 30,000 Hours

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤18W

 Mount Interface

 1.VESA 75mm

 2.Mount bracket, horizontal or vertical mount



 Weight（N.W/G.W）

 2.2Kg(1pcs) /6.4Kg(2pcs in one package)

 Package dimensions

 350*221*298(mm)(2pcs in one package)

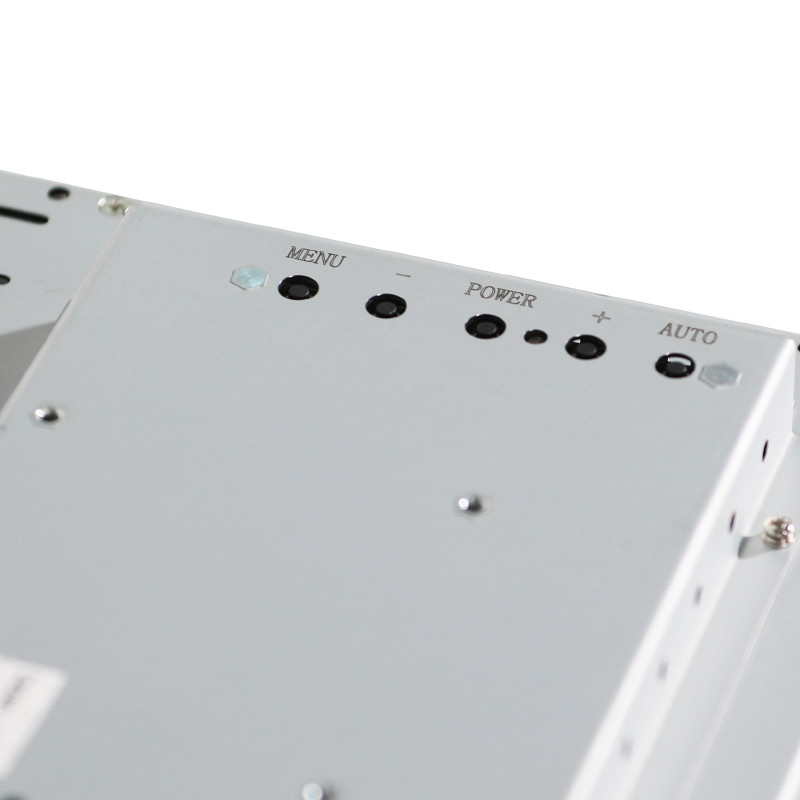

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

10.4" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>80%

Support System

Multi-Touch : WIN7、WIN8、WIN10

Single Touch : XP

Active Area

213*160.2(mm)

Thickness

3.75±0.2mm

Touch Test

≥ 50,000,000 次

Input Voltage

DC 5V±5%





Applications



1.Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.



2. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;



3. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
