1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch

1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch
1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch 1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch 1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch 1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch 1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch 1000 cd/m² PCAP High Brightness Touch Monitor, Open Frame LCD Touch Monitor 27 Inch
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0270U-CA4PH
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability2000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
LED Back Light Life30,000 HoursSuggested Resolution1920*1080 @ 60Hz
Contrast Ratio (3000:1Video InputVGA/HDMI
Active Area597.6*336.15(mm)Brightness-Pure LCD Panel1000cd/m²
Brightness-With Touch Monitor850cd/m²Product NameHigh Brightness Touch Monitor
High Light

PCAP High Brightness Touch Monitor

,

1000cd/M2 High Brightness Touch Monitor

,

Open Frame Lcd Touch Monitor 27Inch

Leave a Message
Product Description

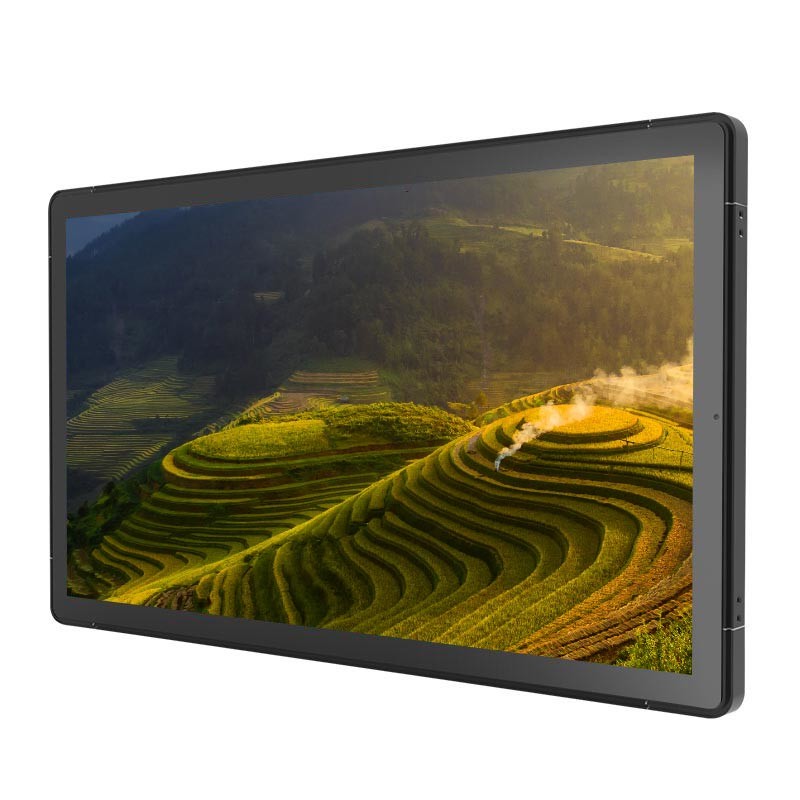

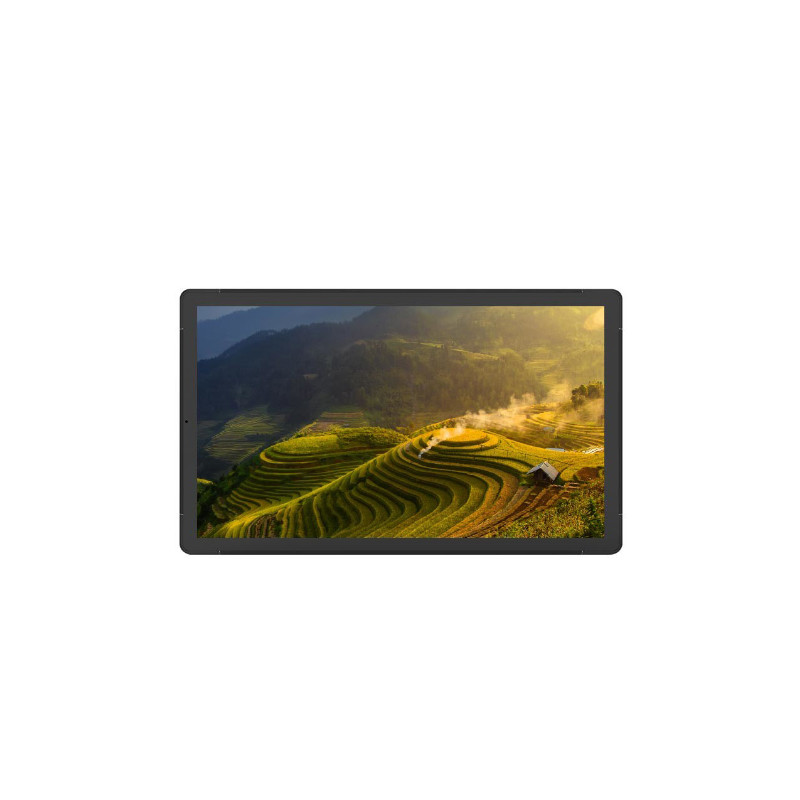

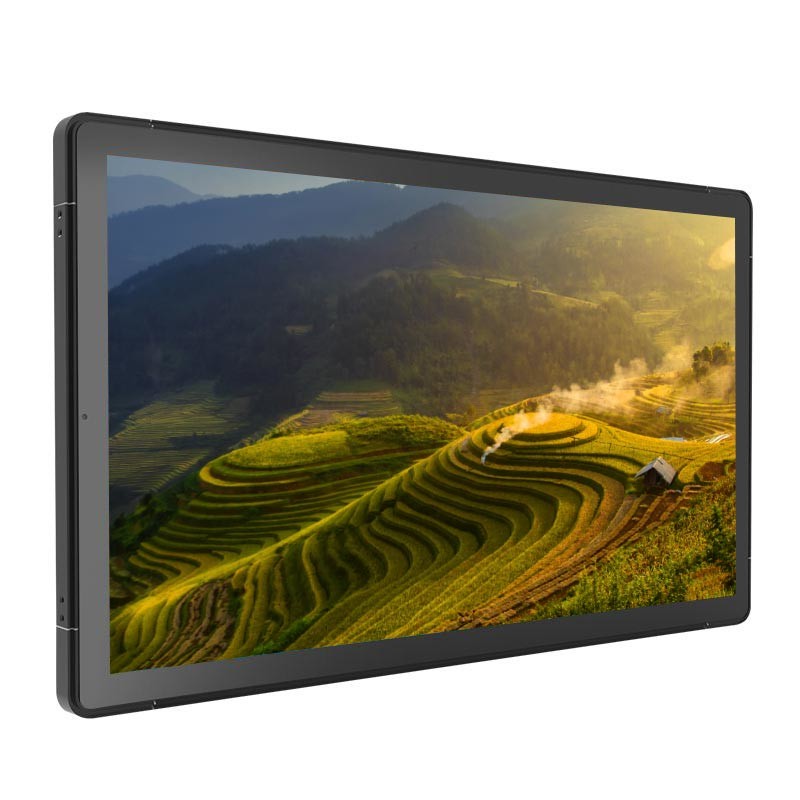

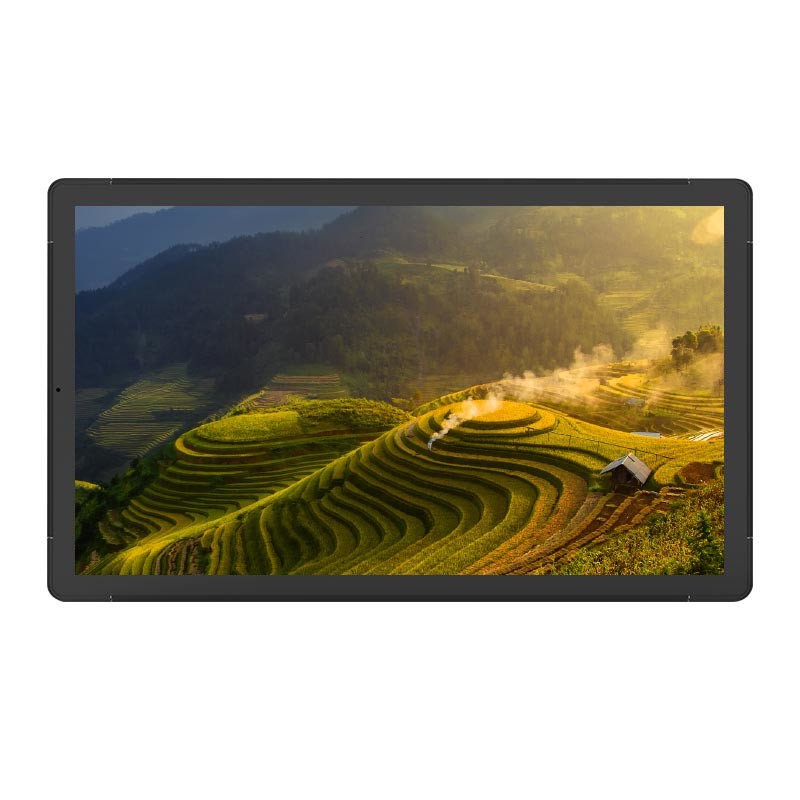

27 Inch High Brightness Touch Monitor Open Frame PCAP 1000cd/M²


High Brightness Touch Monitor Main Features


  • Multi-points PCAP touch panel, high sensitive and fast-response

  • Anti-glare, vandal-proof and dust-proof

  • High brightness touch monitor sunlight readable,1000 - 2000 nits optional

  • VGA+HDMI interfaces,USB for touch

  • Pure flat design, sleek and fashionable with IP65 surface waterproof function

  • Multiple mounting options include VESA mount, horizontal or vertical brackets mount

  • With high quality industrial panel, lasting touch, durable in harsh environment

  • Other sizes are optional (7''- 43'')




High Brightness Touch Monitor Specifications



 Complete Machine

 Model No.

 KOT-0270U-CA4PH (P/N:KOT-270P-005-01)

 Series

 OT

 Display Type

16:9 Ratio 27" TFT-LCD

Active Area

597.6*336.15(mm)

 Monitor Dimensions (W*H*D)

655.9*394.4*87(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

1000cd/m2

With Touch Monitor

850cd/m2

 Response Time (Typ.)

12ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

3000:1

 Video Input

VGA/HDMI

 Frequency (H/V)

30～80KHz / 50～76Hz

 Power Supply

Type: External brick

Display voltage: DC 24V 7A ±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

30,000 Hours

 LED Back Light Life (Typ.)

30,000 Hours

 Power Consumption

Standby Power: 2.5W / Operating Power: ≤120W

Mount Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount

 Weight（N.W/G.W）

12.5Kg/17.35Kg

 Package dimensions

80.5*23.3*55.3cm

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Touch screen Type

 27”Projected Capacitive Touchscreen

 Touch System Interface

 USB

 Support System

 10 points in win7,Win xp 1 point

 Regular Warranty

1 year



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Applications



Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



110




FAQ


1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the High Brightness Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the High Brightness Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



6. What is your delivery time for the High Brightness Touch Monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
