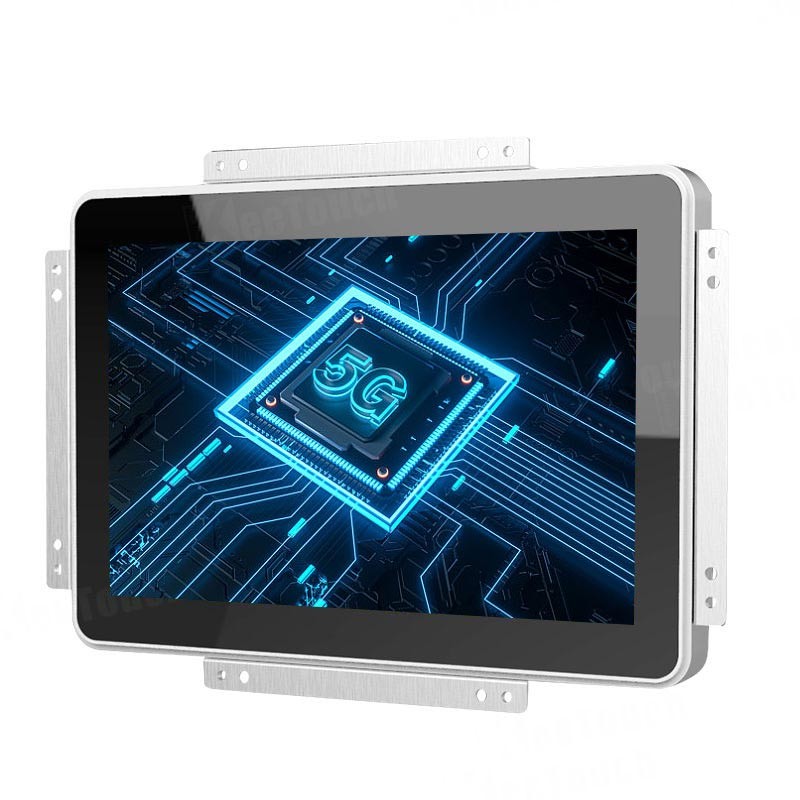

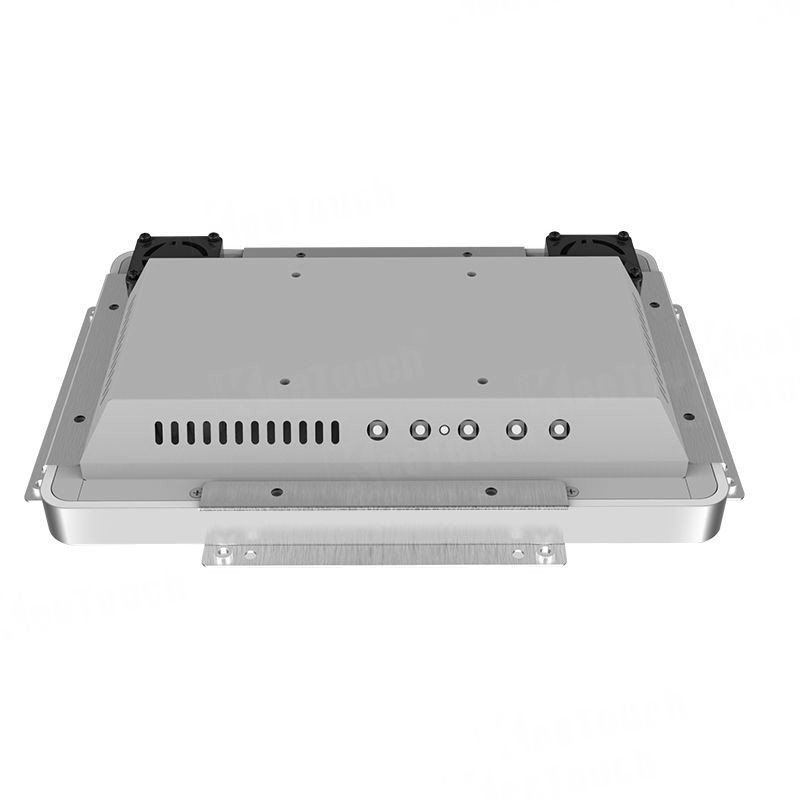

1020cd/M² High Brightness Touch Monitor 10.1 Inch For Outdoor Smart Lockers

1020cd/M² High Brightness Touch Monitor 10.1 Inch For Outdoor Smart Lockers
1020cd/M² High Brightness Touch Monitor 10.1 Inch For Outdoor Smart Lockers 1020cd/M² High Brightness Touch Monitor 10.1 Inch For Outdoor Smart Lockers 1020cd/M² High Brightness Touch Monitor 10.1 Inch For Outdoor Smart Lockers
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-101P-001
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability2000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTSuggested Resolution1280*800 WXGA
Contrast Ratio (800:1Video InputVGA/HDMI/DVI
Active Area216.96*135.6(mm)Brightness-Pure LCD Panel≥1200cd/m²
Brightness-With Touch Monitor≥1020cd/m²Product NameHigh Brightness Touch Monitor
High Light

1020cd/M2 High Brightness Touch Monitor

,

Smart Lockers High Brightness Touch Monitor

Leave a Message
Product Description


10.1 Inch High Brightness Touch Monitor 1020cd/㎡Outdoor Smart Lockers


High Brightness Touch Monitor Main Features


  • PCAP multi-touch high brightness touch monitor, sensitive touch and fast-response

  • Visible under direct sunlight, 1000 - 2000cd/㎡optional

  • High contrast, high resolution with wide viewing angle

  • Water-proof and dust-proof functions

  • Pure flat high brightness touch monitor with IP65 waterproof function

  • HDMI,VGA , DVI interfaces,USB for touch

  • Operation system: Windows 7,Windows 8 and Windows 10

  • Other sizes are optional (8''- 43'')




High Brightness Touch Monitor Specifications


Complete Machine

Model No.

KOT-0101U-CA4PHB (P/N:KOT-101P-001)

Series

OT

Display Type

16:10 Ratio 10.1" TFT-LCD,LED backlight

Active Area

216.96*135.6(mm)

Monitor Dimensions (W*H*D)

259.5*182.5*50(mm)

Suggested Resolution

1280*800 WXGA

Support Colors

16.2M



Brightness (Typ.)

Pure LCD Panel

≥1200cd/m2

With Touch Monitor

≥1020cd/m2

Response Time (Typ.)

16ms



Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

85°/85°

Contrast Ratio (Typ.)

800:1

Video Input

VGA/DVI/HDMI

Frequency (H/V)

30～80KHz / 60～75Hz

Heat Dissipation

Fan Cooling



Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

-20～65°C

Operating RH

60℃, RH 90%

Storage Temp.

-25～70°C

Storage RH

10%～90%

MTBF

≥ 50,000 Hours

LED Back Light Life (Typ.)

≥ 50,000 Hours

Power Consumption

Standby Power: ≤15W / Operating Power: ≤18W

Mount Interface

1. VESA 75mm

2. Mount bracket, horizontal or vertical mount

Weight（N.W/G.W）

2.1Kg(1pcs) /7.5Kg(2pcs in one package)

Package dimensions

415*255*295mm(2pcs in one package)



OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, ETL, FCC, CE, CB, RoHS

Regular Warranty

1 year


Touch Screen

Touch Type

10.1" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>85%

Support System

Multi-Touch : WIN7、WIN8、WIN10 Si

ngle Touch : XP

Active Area

219.2*137.8(mm)

Thickness

3.75±0.2mm

Touch Test

≥ 50,000,000 次

Input Voltage

DC 5V±5%



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.






Applications



KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



84





FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the high brightness touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
