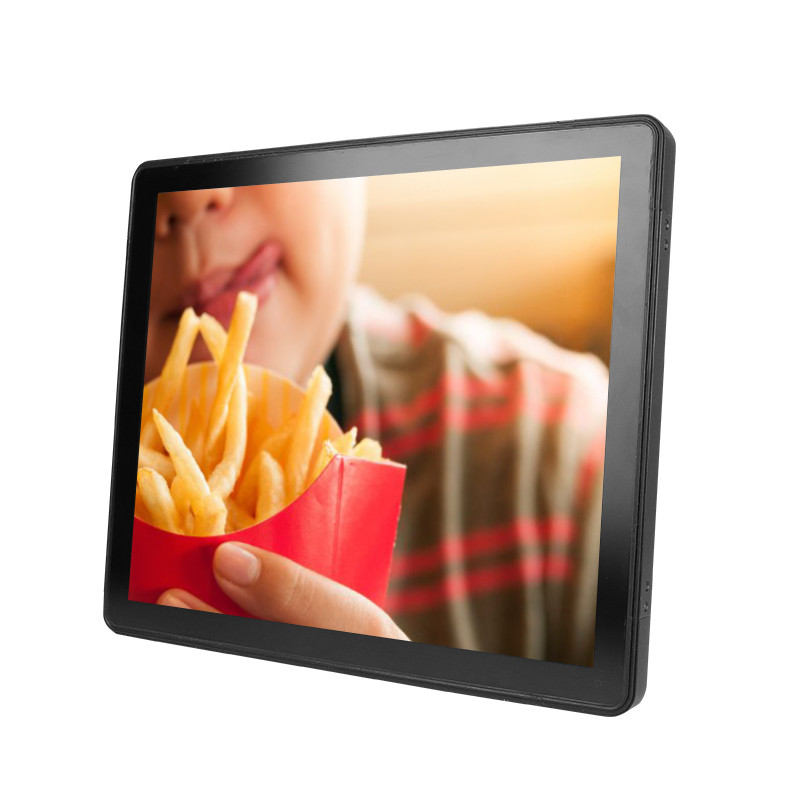

High Brightness PCAP 19 Inch Open Frame Monitor With VGA HDMI Interfaces

High Brightness PCAP 19 Inch Open Frame Monitor With VGA HDMI Interfaces
High Brightness PCAP 19 Inch Open Frame Monitor With VGA HDMI Interfaces High Brightness PCAP 19 Inch Open Frame Monitor With VGA HDMI Interfaces High Brightness PCAP 19 Inch Open Frame Monitor With VGA HDMI Interfaces High Brightness PCAP 19 Inch Open Frame Monitor With VGA HDMI Interfaces
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-190P-056(KOT-0190U-CA4PH)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability2000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Support Colors16.7MSuggested Resolution1280*1024 @ 60Hz
Contrast Ratio (1000:1Video InputVGA/HDMI
Active Area378*302.5 (mm)Brightness-Pure LCD Panel≥1000cd/m²
Display Type5 : 4 Ratio 19" TFT-LCDProduct NameHigh Brightness Touch Monitor
High Light

PCAP 19 inch open frame monitor

,

19 inch open frame monitor VGA

,

HDMI 19 Inch Touch Monitor

Leave a Message
Product Description


19 Inch High Brightness Touch Monitor Open Frame With VGA


High Brightness Touch Monitor Main Features


  • PCAP multi-touch panel, free of drift and great touch experience

  • Readable under direct sunlight, 1000 - 2000 nits optional

  • High resolution, high contrast ratio, superior clarity image with wide viewing angle

  • Anti-glare,anti-vandal and dust-proof high brightness touch monitor

  • Pure flat high brightness touch monitor, IP65 water-proof

  • VGA+HDMI interfaces,USB for touch

  • Operation system: XP, Windows 7,Windows 8 and Windows 10

  • Other sizes can be offered (8''- 43'')




High Brightness Touch Monitor Specifications


Complete Machine

Model No.

KOT-0190U-CA4PH（P/N:KOT-190P-056）

Series

OT

Display Type

5 : 4 Ratio 19" TFT-LCD

Active Area

378*302.5 (mm)

Monitor Dimensions (W*H*D)

433.8*358.5*67.1(mm)

Suggested Resolution

1280*1024 @ 60Hz

Support Colors

16.7M



Brightness (Typ.)

Pure LCD Panel

1000cd/m2

With Touch Monitor

830cd/m2

Response Time (Typ.)

8ms



Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/HDMI

Frequency (H/V)

40～90KHz / 50～75Hz





Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz







Environment

Operating Temp.

-10～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

30,000 Hours

LED Back Light Life (Typ.)

30,000 Hours



OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, ETL, FCC, CE, CB, RoHS

Touch screen Type

19” Projected Capacitive Touchscreen

Touch System Interface

USB

Support System

1point touch in XP,10 points touch in win7,win8 OS

Regular Warranty

1 year


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Applications



KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



68




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the high brightness touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
