Anti Glare High Brightness Touch Monitor IP65 Waterproof 10.4 Inch

Anti Glare High Brightness Touch Monitor IP65 Waterproof 10.4 Inch
Anti Glare High Brightness Touch Monitor IP65 Waterproof 10.4 Inch Anti Glare High Brightness Touch Monitor IP65 Waterproof 10.4 Inch Anti Glare High Brightness Touch Monitor IP65 Waterproof 10.4 Inch Anti Glare High Brightness Touch Monitor IP65 Waterproof 10.4 Inch
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0104U-CA4PH
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability2000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTSuggested Resolution1024*768 @ 60Hz
Contrast Ratio (900:1Video InputVGA/DVI
Active Area211.1*158.4(mm)Brightness-Pure LCD Panel≥1000cd/m²
Display Type4:3 Ratio 10.4" TFT-LCDProduct NameHigh Brightness Touch Monitor
High Light

Anti Glare High Brightness Touch Monitor

,

High Brightness Touch Monitor IP65

,

10.4 Inch Touch Monitor IP65

Leave a Message
Product Description

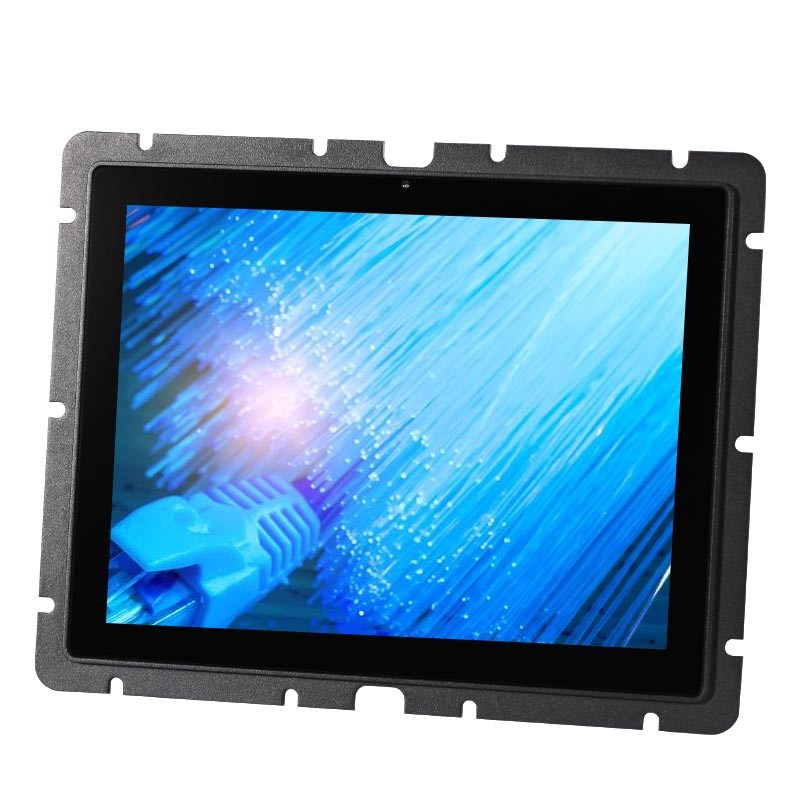

10.4 Inch High Brightness Touch Monitor Anti-Glare IP65 Waterproof


High Brightness Touch Monitor Main Features


  • Anti-glare, anti-vandal high brightness touch monitor

  • PCAP multi touch screen, high quality touch experience

  • High brightness, readable under direct sunlight, 1000 - 2000 cd/m2 optional

  • Pure flat designed high brightness touch monitor, IP65 frontside waterproof

  • DVI + VGA interfaces,USB for touch

  • Support system: XP,WIN7,WIN8,WIN10

  • Other sizes can be offered (8''- 43'')




High Brightness Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0104U-CA4PH (P/N:KOT-104P-011)

 Series

 OT

 Display Type

4:3 Ratio 10.4" TFT-LCD

 Active Area

211.1*158.4(mm)

 Monitor Dimensions (W*H*D)

 276.4*219.4*43.5(mm)

 Suggested Resolution

1024*768 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

≥1000cd/m2

With Touch Monitor

≥800cd/m2

 Response Time (Typ.)

16ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 75°/75°

 Vertical(up/down)

 75°/75°

 Contrast Ratio (Typ.)

 900:1

 Video Input

 VGA/DVI

 Frequency (H/V)

 30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥ 30,000 Hours

 LED Back Light Life (Typ.)

≥ 30,000 Hours

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤18W

 Mount Interface

 1.VESA 75mm

 2.Mount bracket, horizontal or vertical mount



 Weight（N.W/G.W）

 2.2Kg(1pcs) /6.4Kg(2pcs in one package)

 Package dimensions

 350*221*298(mm)(2pcs in one package)

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

10.4" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>80%

Support System

Multi-Touch : WIN7、WIN8、WIN10

Single Touch : XP

Active Area

213*160.2(mm)

Thickness

3.75±0.2mm

Touch Test

≥ 50,000,000 次

Input Voltage

DC 5V±5%




Applications



KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



186




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
