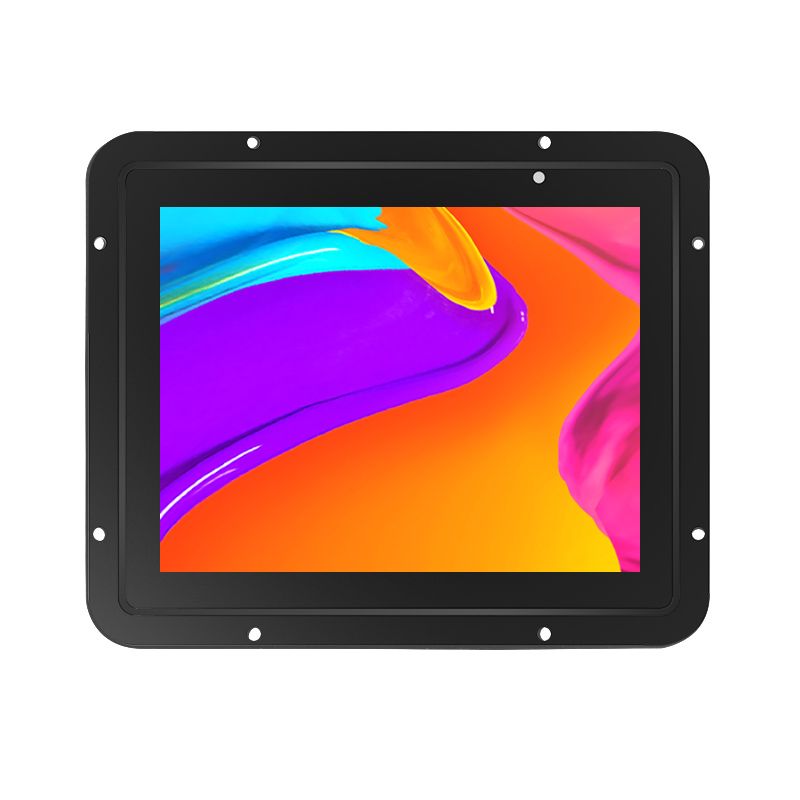

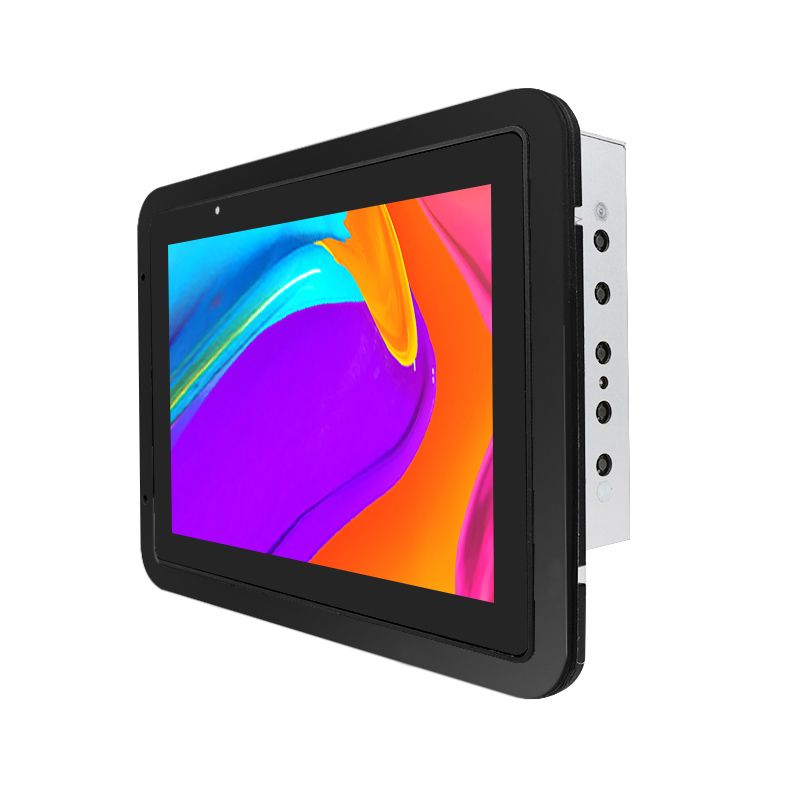

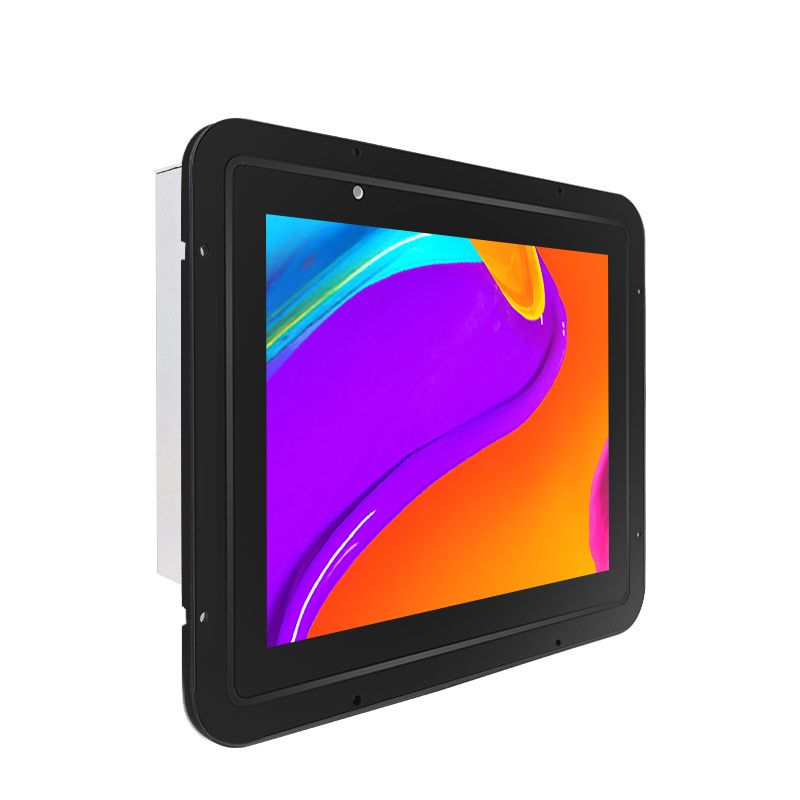

Dust Proof 8 Inch Industrial Monitor Touch Screen Open Frame Multifunctional
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Brightness Touch Monitor | Suggested Resolution | 1024*768 @ 60Hz |
|---|---|---|---|
| Contrast Ratio ( | 1000:1 | Video Input | VGA/HDMI |
| Active Area | 163*122.5(mm) | Brightness-Pure LCD Panel | ≥1000cd/m² |
| Display Type | 4:3 Ratio 8" TFT-LCD | Touch Input | USB |
| Response Time | ≤10ms | ||
| High Light | DustProof 8 Inch Industrial Monitor,Open Frame 8 Inch Industrial Monitor,Multifunctional Monitor Touch Screen Open Frame | ||
Product Description
8 Inch Industrial Open Frame Touch Screen Display Monitor With High Brightness Option
KeeTouch Touch Screen Display Monitor Main Features:
Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
IP65 grade water-proof,dust-proof for front panel.
Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
Compatible with various industrial systems/application.
Support Resistive touch, SAW touch, IR touch, Capacitive touch.
CCC, ETL, FCC, CE, CB, RoHS certificate.
Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
KeeTouch Touch Screen Display Monitor Main Features:
Complete Machine | ||
Model No. | KOT-0080U-CA4PH (P/N:KOT-008C-005) | |
Series | OT | |
Display Type | 4:3 Ratio 8" TFT-LCD | |
Active Area | 163*122.5(mm) | |
Monitor Dimensions (W*H*D) | 214*177*40.7(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | ≥1000cd/m2 |
With Touch Monitor | ≥850cd/m2 | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% 3.3A | |
Environment | Operating Temp. | -15～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥ 30,000 Hours | |
LED Back Light Life (Typ.) | ≥ 30,000 Hours | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤13W | |
Mount Interface | Mount bracket, horizontal or vertical mount | |

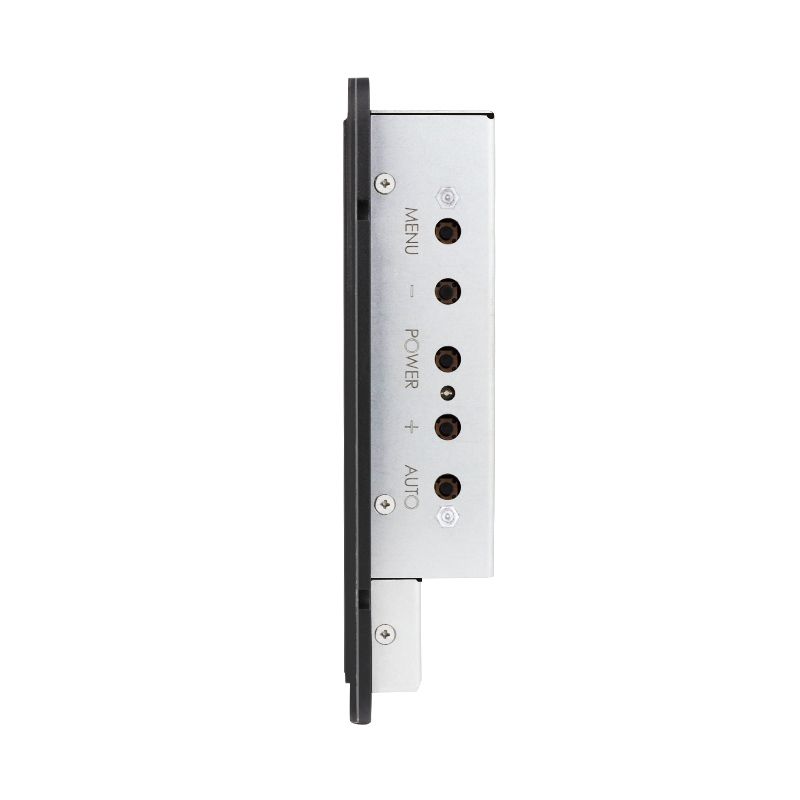

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 8" capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | >80% |
Support System | Multi-Touch : WIN7、WIN8、WIN10 Single Touch : XP |
Touch Test | ≥ 50,000,000 次 |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications

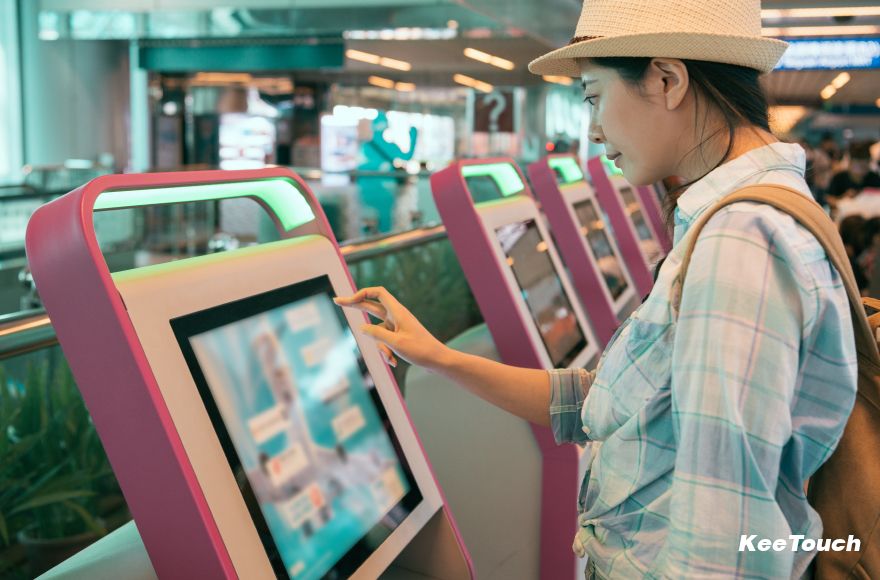

Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
lPublic Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
lBusiness Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
lFinancial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; · Non-profit Organizations: Telecommunications, post offices, hospital, schools;
lReal Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
lEntertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.
2. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
3. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
4. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
5. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
6. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
