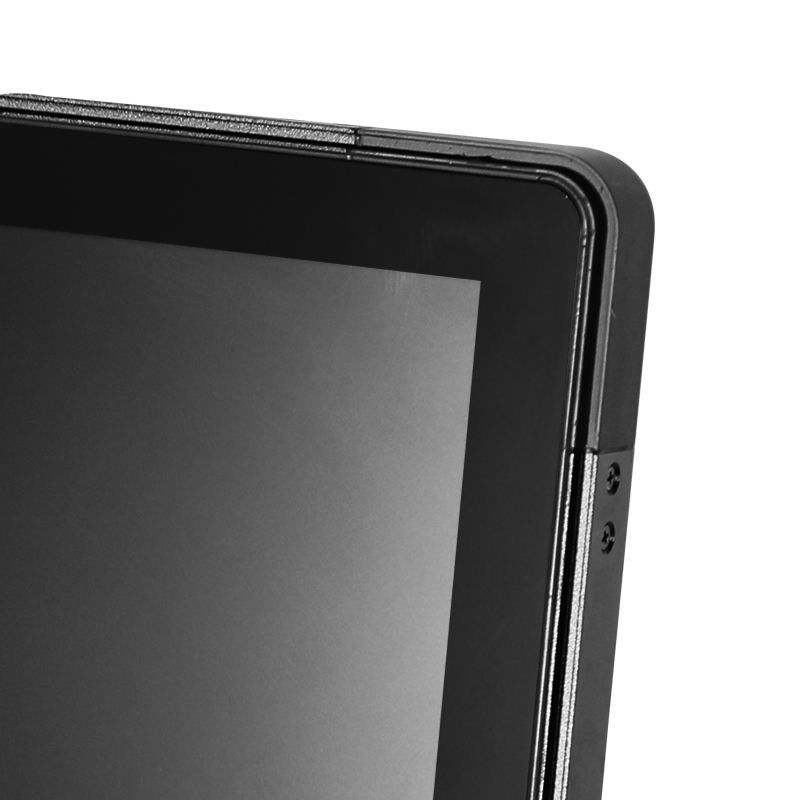

27" Open Frame Touchscreen Monitor 1000cd/㎡ Brightness For Self Service Kiosks

27
27 27 27 27 27 27
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0270U-CA4PH
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

carton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
LED Back Light Life30,000 HoursSuggested Resolution1920*1080 @ 60Hz
Contrast Ratio (3000:1Video InputVGA/HDMI
Active Area597.6*336.15(mm)Brightness-Pure LCD Panel1000cd/m²
Brightness-With Touch Monitor850cd/m²Product NameHigh Brightness Touch Monitor
Viewing Angle(Typ.at CR＞10))Horizontal (left/right) 89°/89°  Vertical(up/down) 89°/89°Frequency (H/V)30～80KHz / 50～76Hz
MTBF≥ 30,000 Hours

High Light

27" Open Frame Touchscreen Monitor

,

Open Frame Touchscreen Monitor 1000cd/M2

,

Kiosks monitor touch open frame

Leave a Message
Product Description


27" Inch Open Frame High Brightness PCAP Touch Monitor For Self Service Kiosks



High Brightness Touch Monitor Main Features

Multi-points PCAP touch panel, high sensitive and fast-response

Anti-glare,vandal-proof and dust-proof, IP65 surface waterproof function

High brightness sunlight readable,1000 - 2000 nits optional

Support Resistive touch, SAW touch , IR touch, Capacitive touch.

Compatible with various industrial systems/application.




High Brightness Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0270U-CA4PH (P/N:KOT-270P-005-01)

 Series

 OT

 Display Type

16:9 Ratio  27" TFT-LCD

Active Area

597.6*336.15(mm)

 Monitor Dimensions (W*H*D)

655.9*394.4*87(mm)

 Suggested Resolution

1920*1080 @  60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

1000cd/m²

With Touch Monitor

850cd/m²

 Response Time (Typ.)

12ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

3000:1

 Video Input

VGA/HDMI

 Frequency (H/V)

30～80KHz / 50～76Hz

 Power Supply

Type: External brick

Display voltage: DC 24V 7A ±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

30,000 Hours

 LED Back Light Life (Typ.)

30,000 Hours

Mount   Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount

 Weight（N.W/G.W）

12.5Kg/17.35Kg

 Package dimensions

80.5*23.3*55.3cm

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Touch screen Type

 27”Projected Capacitive Touchscreen

 Touch System Interface

 USB

 Support System

 10 points in win7,Win xp 1 point

 Regular Warranty

1 year


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Application:

Retail

Gaming

Kiosk

self-service

Finance

Transit

Conference

Education

Healthcare

public service

e-commerce

Hotels

restaurants





Advantages of High Brightness Touch Monitor

1.Improved visibility: High-brightness PCAP touch monitors typically have a brightness level of 1000 nits or more, which makes them ideal for use in bright environments such as outdoor settings or areas with high ambient light.

2.Enhanced durability: PCAP touch monitors are known for their durability and resistance to scratches, abrasions, and vandalism. The touch screens are made of tempered glass, which is tough and resistant to impact damage.

3.Accurate touch response: PCAP touch screens are highly responsive and offer accurate touch detection, even when used with gloves or in wet conditions.

4.Multi-touch support: High-brightness PCAP touch monitors support multi-touch gestures, which means that users can interact with the screen using multiple fingers at once. This makes it easier to perform complex operations and to manipulate images or data on the screen.

5.Customizable: High-brightness PCAP touch monitors can be customized to meet specific requirements, such as different screen sizes, aspect ratios, and brightness levels.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.


2. What's your MOQ?

Our minimum order quantity is 1pc only.


3. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)


4. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.


5. What are the shipping ways?

We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


6. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.
