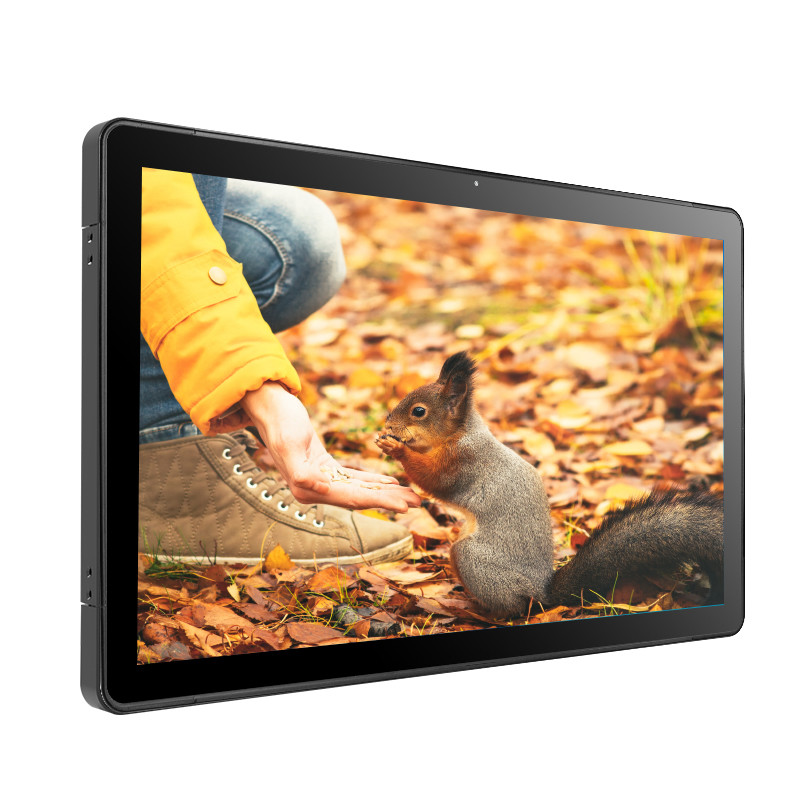

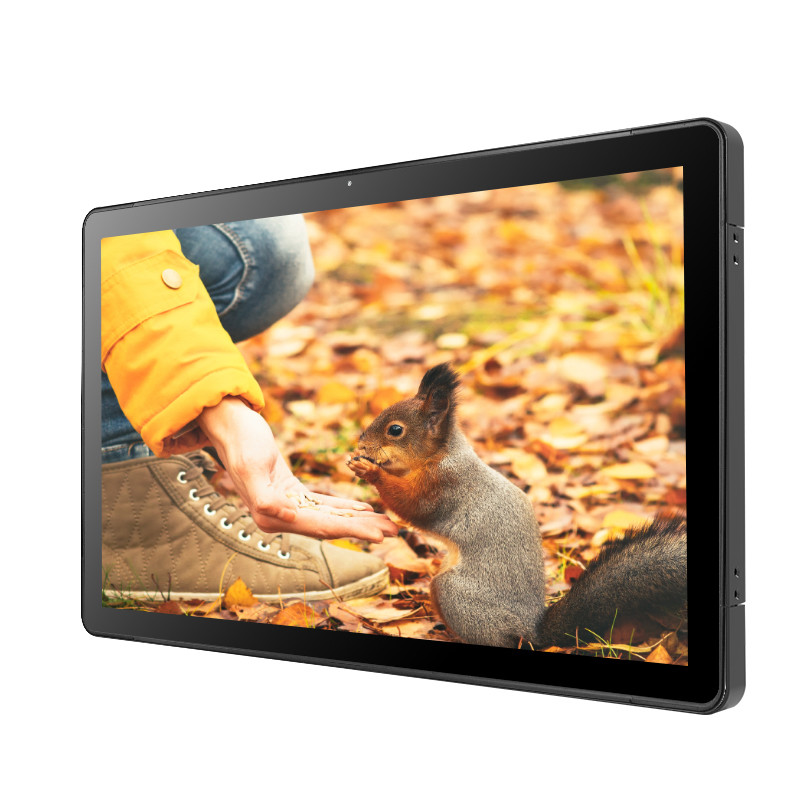

21.5 Inch High Brightness Touch Monitor Screen 1500 Nits For Outdoors ODM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Support Colors | 16.7M | Suggested Resolution | 1920*1080 @ 60Hz |
|---|---|---|---|
| Series | OT | Video Input | VGA/DVI/HDMI |
| Active Area | 477.6*269.6(mm) | Brightness-Pure LCD Panel | 1500cd/m² |
| Display Type | 16:9 Ratio 21.5" TFT-LCD | Product Name | High Brightness Touch Monitor |
| High Light | 21.5 Inch High Brightness Touch Monitor,High Brightness Touch Monitor 1500Nits,ODM high brightness touch screen | ||
Product Description
21.5 Inch High Brightness Touch Monitor 1500 Nits Sunlight Visible For Outdoors
High Brightness Touch Monitor Main Features
PCAP multi-touch panel, high-sensitivity and fast response
Sunlight light visible, 1000 -2000 nits optional, great for outdoor use
High resolution and high contrast ratio LCD panel with full viewing angle
Anti-glare,vandal-proof and IP65 front side waterproof high brightness touch monitor
Pure flat designed, sleek and fashionable high brightness touch monitor
VGA+DVI+HDMI interfaces,USB for touch input
Operation system: XP, Windows 7, Windows 8 and Windows 10
Other sizes are available (8''- 43'')
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0215U-CA4PH (P/N:KOT-215P-028) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 477.6*269.6(mm) | |
Monitor Dimensions (W*H*D) | 535.1*327.1*56.4(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1500cd/m² |
With Touch Monitor | 1245cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 89°/89° |
Vertical(up/down) | 89°/89° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -15～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 21.5” Projected Capacitive Touchscreen, | |
Touch System Interface | USB(or Serial port, one point) | |
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of High Brightness Touch Monitor
1. Improved visibility: High brightness touch monitors are designed to produce brighter and clearer images, which makes them ideal for use in bright environments such as outdoor displays, retail stores, and other high-traffic areas. This improved visibility ensures that the content displayed on the screen is easily readable and visible even in direct sunlight.
2. Enhanced user experience: High brightness touch monitors offer an enhanced user experience due to their responsive touch screen technology.
3. Increased durability: High brightness touch monitors are designed to withstand harsh environments, including extreme temperatures and humidity levels. This increased durability ensures that the device can operate optimally in various settings, including outdoor environments.
4. Flexibility: High brightness touch monitors can be used in a wide range of settings, including retail stores, hospitals, museums, and outdoor events. They can be used to display information, interactive exhibits, and other content, making them a versatile solution for many applications.
5. Cost-effective: High brightness touch monitors are a cost-effective solution for many applications. They eliminate the need for separate touch screen devices, reducing the total cost of ownership. Additionally, they can be used in a wide range of settings, reducing the need for multiple displays.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What's your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the high brightness touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay. (L/C can be negotiable）
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
