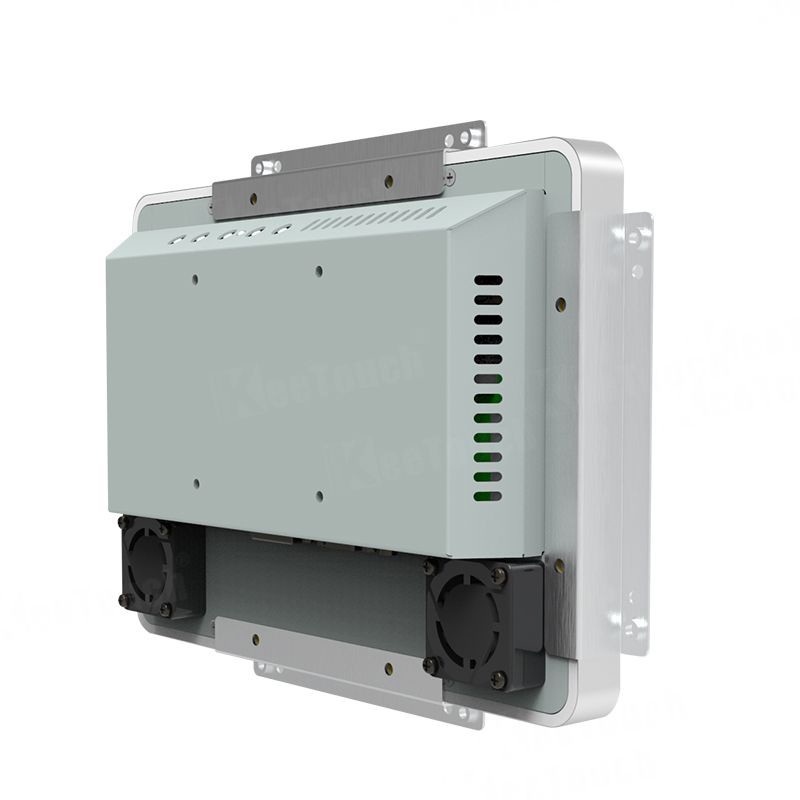

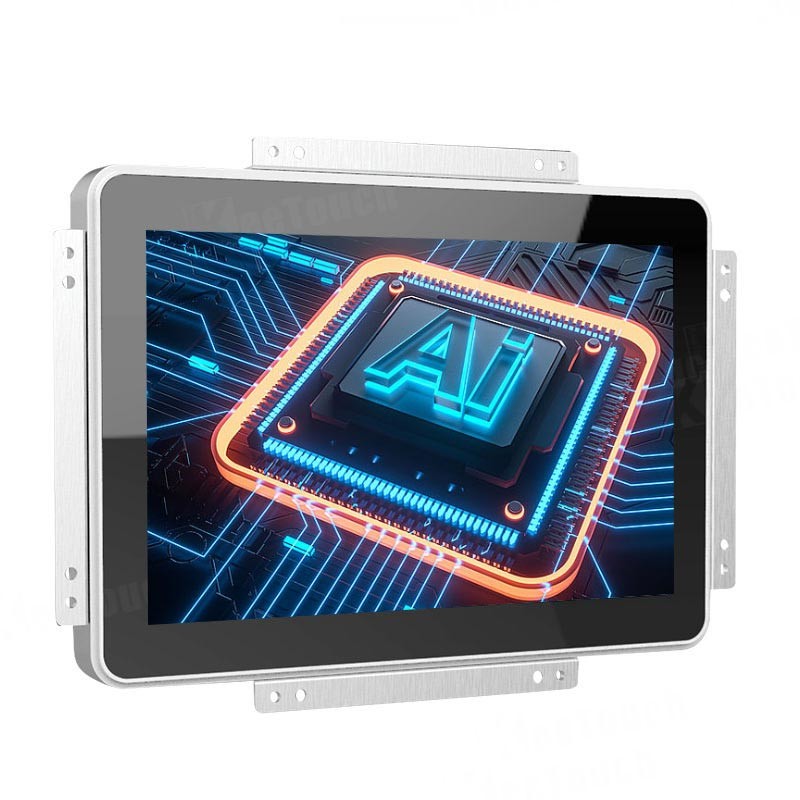

10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suggested Resolution | 1280*800 WXGA | Contrast Ratio ( | 800:1 |
|---|---|---|---|
| Video Input | VGA/HDMI/DVI | Active Area | 216.96*135.6(mm) |
| Brightness-Pure LCD Panel | ≥1200cd/m² | Brightness-With Touch Monitor | ≥1020cd/m² |
| Product Name | High Brightness Touch Monitor | Mount Interface | 1. VESA 75mm 2. Mount Bracket, Horizontal Or Vertical Mount |
| OSD Control | Buttons AUTO,+,POWER,-,MENU Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | Power Supply | Display Voltage: DC 12V±5% 3.3A |
| High Light | 10.1Inch Capacitive Touch Screen Monitor,Capacitive Touch Screen Monitor 1020cd/M²,Capacitive 10.1 inch touch screen monitor | ||
Product Description
10.1 inch High Brightness Monitor with capacitive touch screens for outdoor
High Brightness Touch Monitor Main Features
Anti-glare, anti-vandal high brightness touch monitor
PCAP multi touch screen, high quality touch experience
High brightness:1000 - 2000 cd/m² optional
Pure flat designed high brightness touch monitor, IP65 frontside waterproof
Interface: DVI + VGA interfaces,
Touch Input: USB
Support OS: XP,WIN7,WIN8,WIN10
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0101U-CA4PHB (P/N:KOT-101P-001) | |
Series | OT | |
Display Type | 16:10 Ratio 10.1" TFT-LCD,LED backlight | |
Active Area | 216.96*135.6(mm) | |
Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) | |
Suggested Resolution | 1280*800 WXGA | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | ≥1200cd/m² |
With Touch Monitor | ≥1020cd/m² | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 85°/85° | |
Contrast Ratio (Typ.) | 800:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Heat Dissipation | Fan Cooling | |
Power Supply | Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -20～65°C |
Operating RH | 60℃, RH 90% | |
Storage Temp. | -25～70°C | |
Storage RH | 10%～90% | |
MTBF | ≥ 50,000 Hours | |
LED Back Light Life (Typ.) | ≥ 50,000 Hours | |
Power Consumption | Standby Power: ≤15W / Operating Power: ≤18W | |
Weight（N.W/G.W） | 2.1Kg(1pcs) /7.5Kg(2pcs in one package) | |
Package dimensions | 415*255*295mm(2pcs in one package) | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 10.1" capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | >85% |
Support System | Multi-Touch : WIN7、WIN8、WIN10 Single Touch : XP |
Active Area | 219.2*137.8(mm) |
Thickness | 3.75±0.2mm |
Touch Test | ≥ 50,000,000 次 |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
2. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
3. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What's your MOQ?
Our minimum order quantity is 1pc only.
3. What is your warranty period?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
