Dust Proof Industrial High Brightness Touch Monitor 10.1 Inch IP65 Waterproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suggested Resolution | 1280*800 WXGA | Contrast Ratio ( | 800:1 |
|---|---|---|---|
| Video Input | VGA/HDMI/DVI | Active Area | 216.96*135.6(mm) |
| Brightness-Pure LCD Panel | ≥1200cd/m² | Brightness-With Touch Monitor | ≥1020cd/m² |
| Product Name | High Brightness Touch Monitor | MTBF | ≥ 50,000 Hours |
| Support System | Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP | Touch Input | USB |
| Sample | On Stock | Leadtime | 7-15 Days |
| High Light | DustProof High Brightness Touch Monitor,High Brightness Touch Monitor 10.1Inch,Waterproof ip65 industrial monitor | ||
Product Description

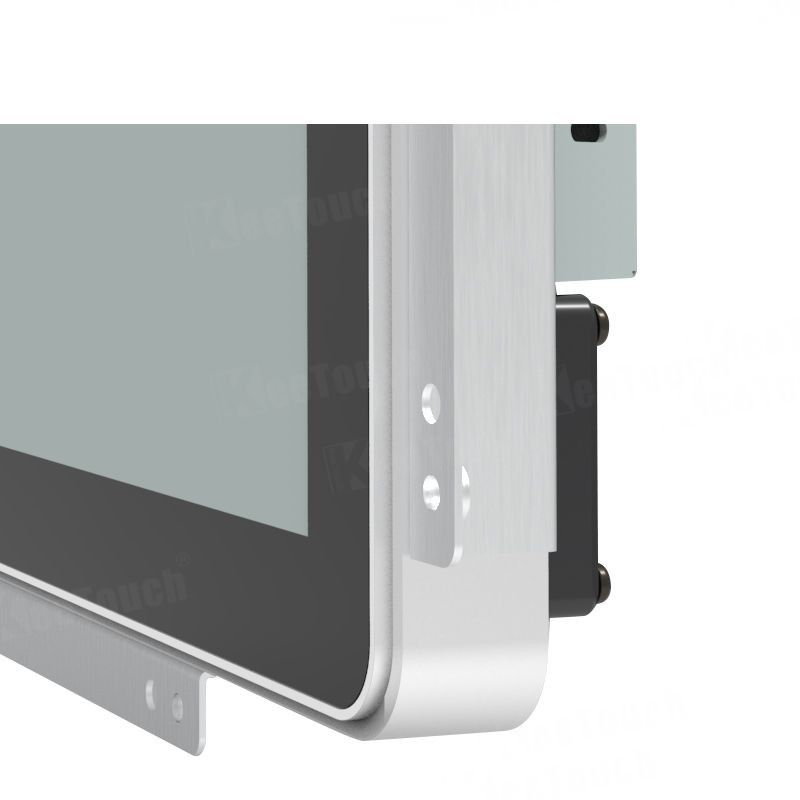

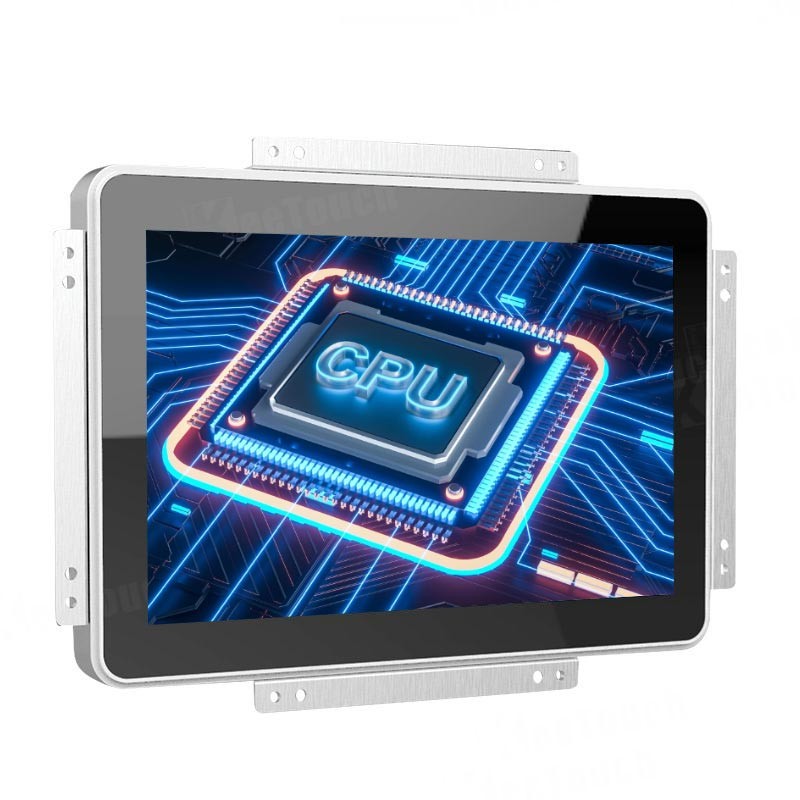

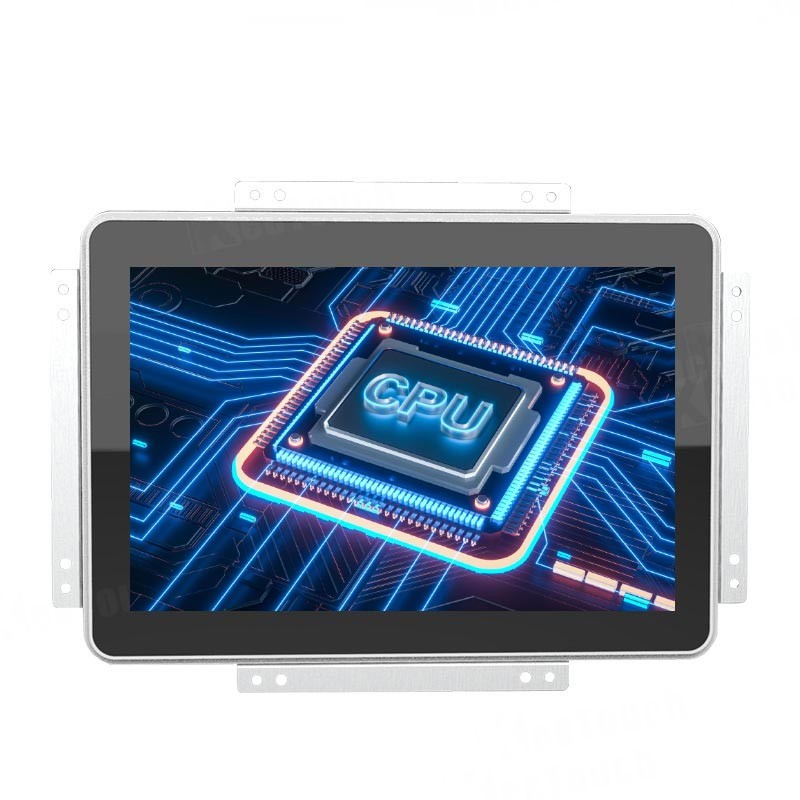

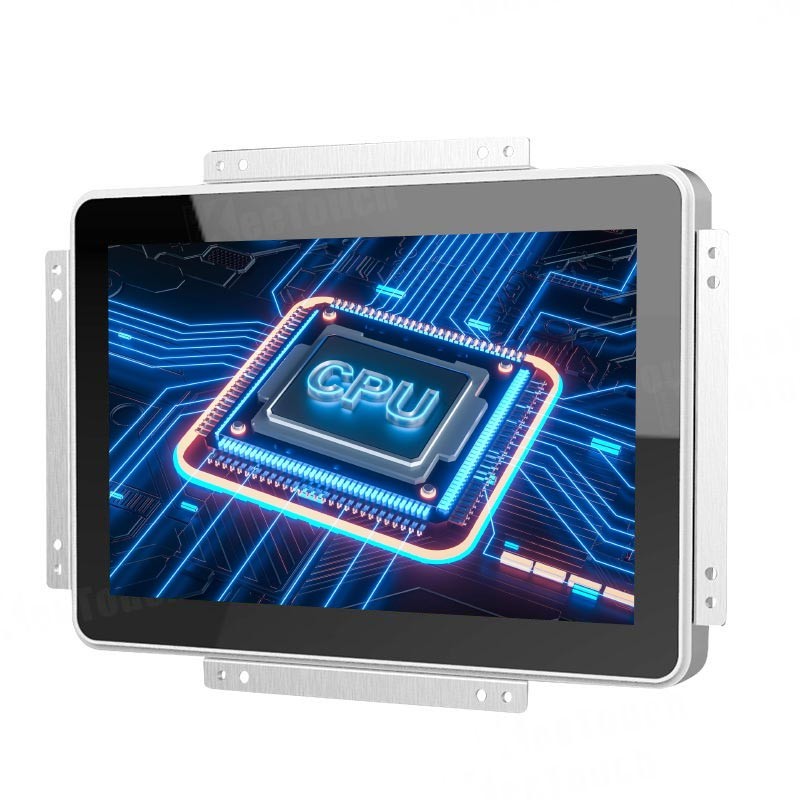

10.1 Inch High Brightness Touch Monitor with IP65 grade Waterproof
High Brightness Touch Monitor Main Features
Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
IP65 grade water-proof,dust-proof for front panel.
Aluminum alloy shell, good mechanical properties,better performance of heat dissipation.
Adopt industrial control HD LCD screen +LED backlight screen,highlight picture.
Compatible with various industrial systems/application.
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0101U-CA4PHB (P/N:KOT-101P-001) | |
Series | OT | |
Display Type | 16:10 Ratio 10.1" TFT-LCD,LED backlight | |
Active Area | 216.96*135.6(mm) | |
Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) | |
Suggested Resolution | 1280*800 WXGA | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | ≥1200cd/m² |
With Touch Monitor | ≥1020cd/m² | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 85°/85° | |
Contrast Ratio (Typ.) | 800:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Heat Dissipation | Fan Cooling | |
Power Supply | Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -20～65°C |
Operating RH | 60℃, RH 90% | |
Storage Temp. | -25～70°C | |
Storage RH | 10%～90% | |
MTBF | ≥ 50,000 Hours | |
LED Back Light Life (Typ.) | ≥ 50,000 Hours | |
Power Consumption | Standby Power: ≤15W / Operating Power: ≤18W | |
Weight（N.W/G.W） | 2.1Kg(1pcs) /7.5Kg(2pcs in one package) | |
Package dimensions | 415*255*295mm(2pcs in one package) | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch Screen | |
Touch Type | 10.1" capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Support System | Multi-Touch : WIN7、WIN8、WIN10 Single Touch : XP |
Active Area | 219.2*137.8(mm) |
Touch Test | ≥ 50,000,000 次 |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
1.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
2.Non-profit Organizations: Telecommunications, post offices, hospital, schools;
3.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
4.Entertainments: Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
FAQ
1. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
2. What package do you provide?
Our package usually is carton.
3. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
4. What are the shipping ways?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
