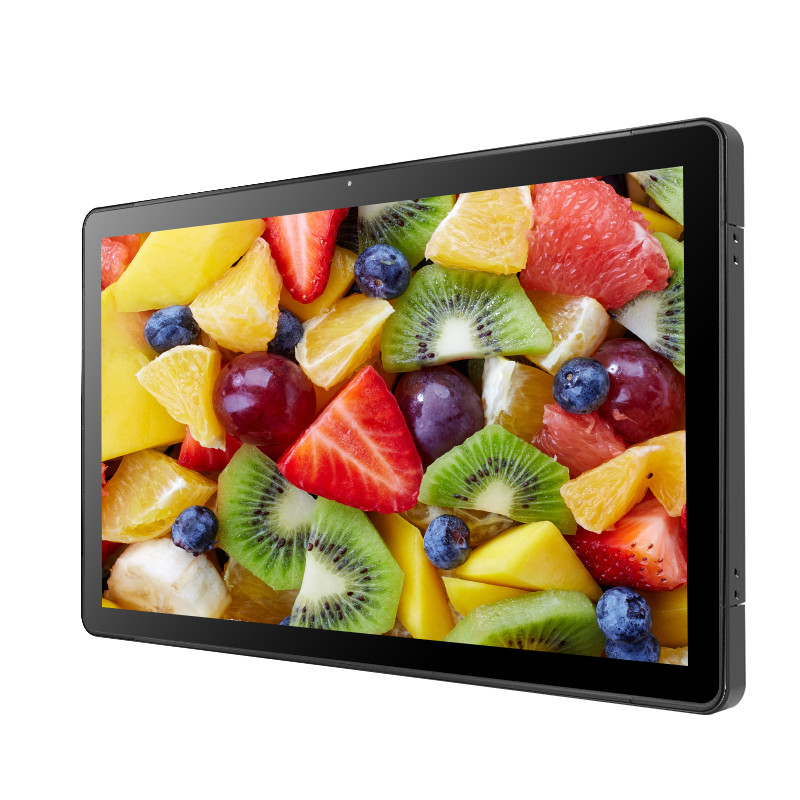

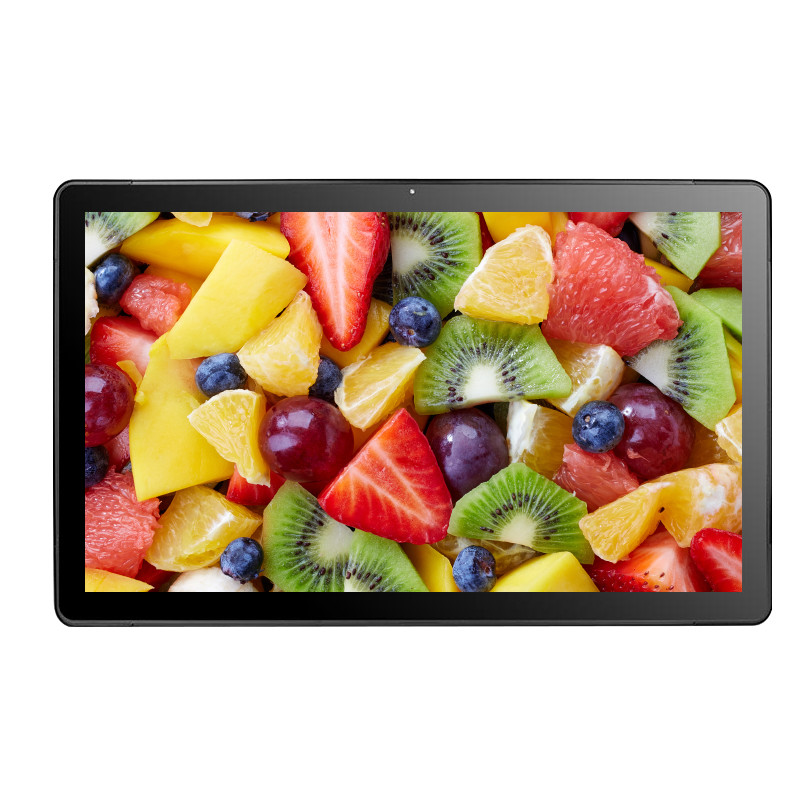

Industrial LCD Touch Screen Monitor 10 Point Capacitive 21.5 Inch Size
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Support Colors | 16.7M | Suggested Resolution | 1920*1080 @ 60Hz |
|---|---|---|---|
| Series | OT | Video Input | VGA/DVI/HDMI |
| Active Area | 477.6*269.6(mm) | Brightness-Pure LCD Panel | 1500cd/m² |
| Display Type | 16:9 Ratio 21.5" TFT-LCD | Product Name | High Brightness Touch Monitor |
| Agency Approvals | CCC, UL, FCC, CE, CB, RoHS | Touch Screen Type | 21.5”Projected Capacitive Touchscreen |
| MTBF | ≥ 30,000 Hours | ||
| High Light | LCD Touch Screen Monitor 10Point,21.5 Inch LCD Touch Screen Monitor,Industrial 10 point capacitive touch screen | ||
Product Description
Industrial 21.5 Inch High Brightness Outdoor Lcd Touch Screen Monitor 16:9 IP65
High Brightness Touch Monitor Main Features
1.HD Panel, Clear Presentation LED Backlight.
2.IP65 Front Panel Alluminum Alloy Enclouse.
3.Industrial Grade Rugged Design.
4.10-Point Capacitive Touchscreen.
5.Runs 24 Hours A Day.
6.Efficient Cooling System.
7.High And Low Temperature Resistant Design.
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0215U-CA4PH (P/N:KOT-215P-028) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 477.6*269.6(mm) | |
Monitor Dimensions (W*H*D) | 535.1*327.1*56.4(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1500cd/m² |
With Touch Monitor | 1245cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 89°/89° |
Vertical(up/down) | 89°/89° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -15～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 21.5”Projected Capacitive Touchscreen, | |
Support System | 10 points in win7 | |
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
1. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
2. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
3. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
4. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers.
Why choose us?
1.We are a leading provider of industrial grade touch products and touch solutions, founed in 2006.
2.Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3.Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4.Professional after-sales team at any time to provide services to customers.
FAQ
Q1. Are you a manufacturer?
A1:-Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
Q2: Can I buy samples placing orders?
A2:-Yes. Please feel free to contactus.
Q3: What is your lead time?
A3:-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q4: What is your payment term?
A4: -T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q5: What is the shipping method?
A5:-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX etc.).Please confirm with us before placing orders.
Q6: Do you support OEM/ODM?
A6: Yes we do.
