32 Inch High Brightness Touch Monitor Sunlight Readable For ATM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pure LCD Panel | 1500cd/m² | With Touch Monitor | 1250cd/m² |
|---|---|---|---|
| Video Input | VGA/DVI/HDMI | Active Area | 700.6*395.1 (mm) |
| Contrast Ratio (Typ.) | 4000:1 | Display Type | 16:9 Ratio 32" TFT-LCD |
| Product Name | High Brightness Touch Monitor | Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) 89°/89° Vertical(up/down) 89°/89° |
| Frequency (H/V) | 30～80KHz / 60～75Hz | Power Consumption | 130W |
| High Light | High Brightness Touch Monitor Sunlight Readable,32Inch High Brightness Touch Monitor,ATM sunlight readable monitor | ||
Product Description

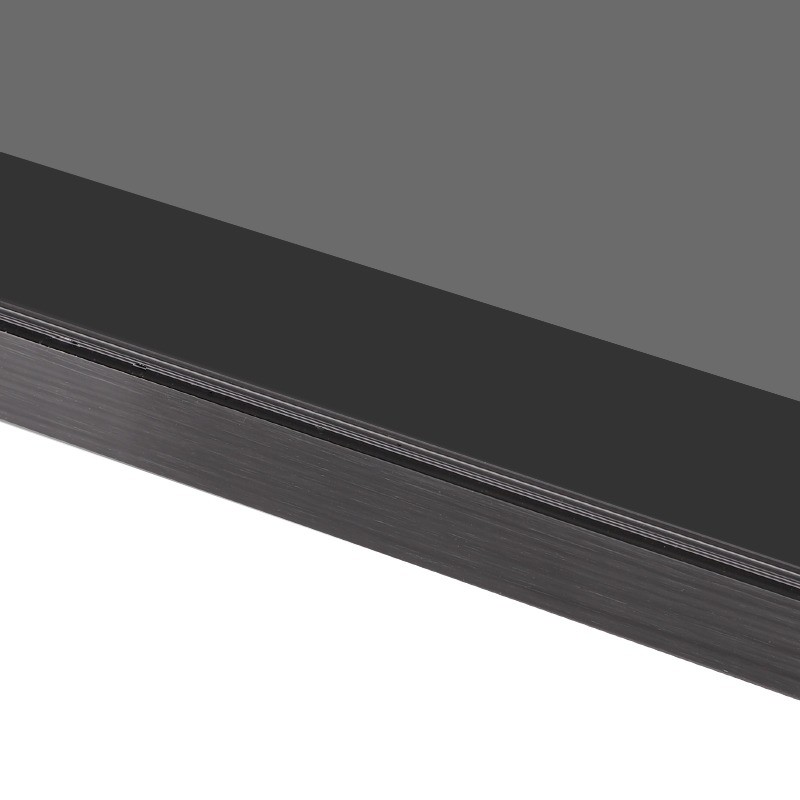

32" Inch Industrial Grade Sunlight Readable High Brightness Touch Screen ATM Monitor
High Brightness Touch Monitor Main Features
1. Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
2. Adopt industrial control HD LCD screen
3. LED backlight screen,highlight picture,perfect color.
4. Compatible with various industrial systems/application.
5. Support Resistive touch, SAW touch , IR touch, Capacitive touch.
6. Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0320U-CA4PH (P/N:KOT-320P-013) | |
Series | OT | |
Display Type | 16:9 Ratio 32" TFT-LCD | |
Active Area | 700.6*395.1 (mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Brightness (Typ.) | Pure LCD Panel | 1500cd/m² |
With Touch Monitor | 1250cd/m² | |
Response Time (Typ.) | 6ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 89°/89° |
Vertical(up/down) | 89°/89° | |
Contrast Ratio (Typ.) | 4000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 24V/ 5A | |
Environment | Operating Temp. | -15～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
Power Consumption | 130W | |
Mount Interface | 1.VESA 400*400 mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 32" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | ≥6H |
Light Transmittance | ≥83% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen.
② The support system is adjusted according the specific system and version.
Applications
1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
2. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What is your warranty period?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
