21.5" Projected Capacitive Touch Monitor , Waterproof Touch Screen Monitor For Banking
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Support Colors | 16.7M | Suggested Resolution | 1920*1080 @ 60Hz |
|---|---|---|---|
| Video Input | VGA/DVI/HDMI | Active Area | 477.6*269.6(mm) |
| Brightness-Pure LCD Panel | 1500cd/m² | Display Type | 16:9 Ratio 21.5" TFT-LCD |
| Product Name | High Brightness Touch Monitor | Agency Approvals | CCC, UL, FCC, CE, CB, RoHS |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) 89°/89° Vertical(up/down) 89°/89° | Warranty | 1 Year |
| Leadtime | 7-15 Days | Touch Input | USB |
| High Light | 21.5" Projected Capacitive Touch Monitor,Waterproof Projected Capacitive Touch Monitor,Banking Waterproof Touch Screen Monitor | ||
Product Description

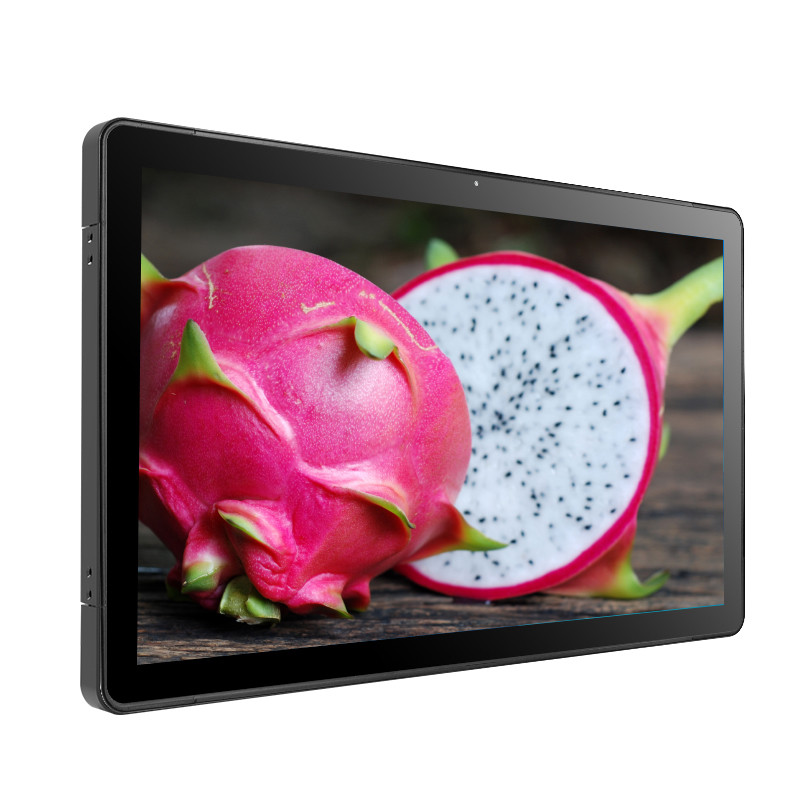

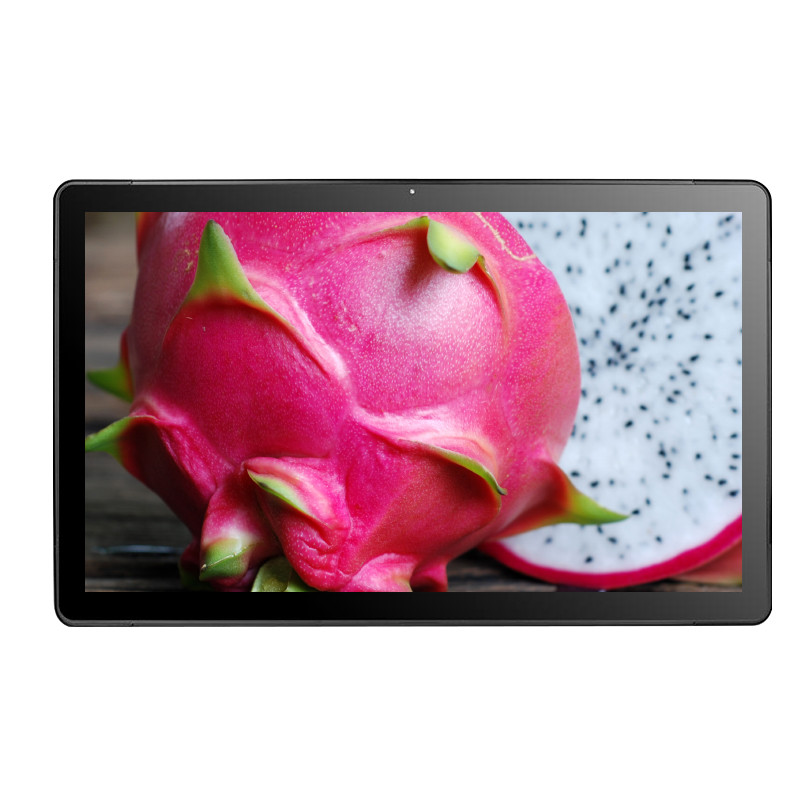

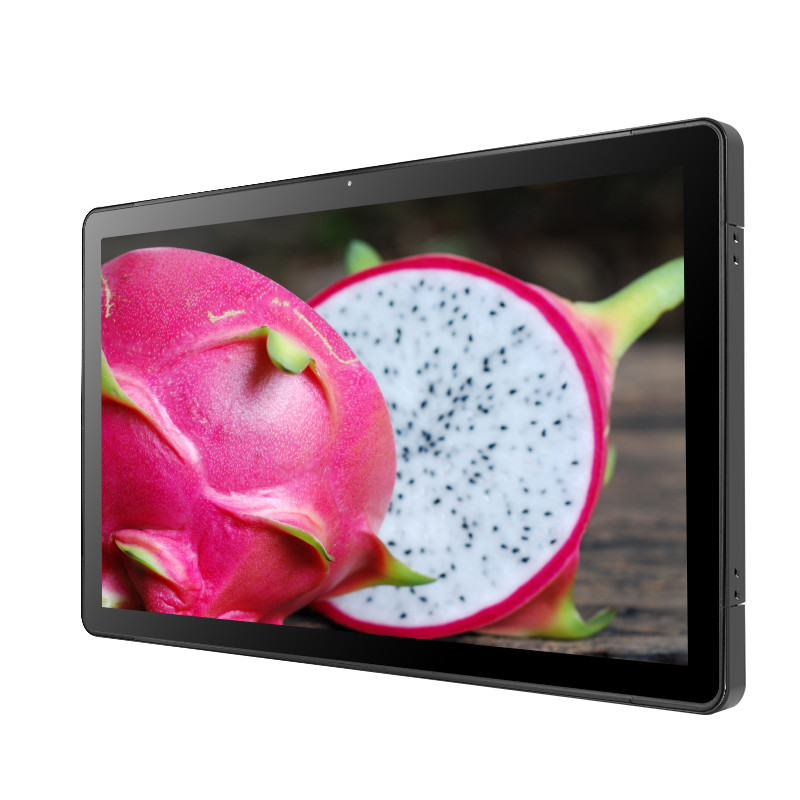

21.5 Inch IP65 Outdoor Waterproof High Brightness Capacitive Touch Screen Monitor For Banking
High Brightness Touch Monitor Main Features
1. Support embedded, wall-mounted,rack-mounted, desktop,VESA support.
2. IP65 grade water-proof, dust-proof for front panel.
3. Aluminum alloy shell, good mechanical properties, better performance of heat dissipation.
4. Adopt industrial control HD LCD screen +LED backlight screen, highlight picture, perfect color.
5. Compatible with various industrial systems/application.
6. Support Resistive touch, SAW touch, IR touch, Capacitive touch.
7. CCC, UL, FCC, CE, CB, RoHS certificate.
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0215U-CA4PH(P/N:KOT-215P-028) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 477.6*269.6(mm) | |
Monitor Dimensions (W*H*D) | 535.1*327.1*56.4(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1500cd/m² |
With Touch Monitor | 1245cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 89°/89° |
Vertical(up/down) | 89°/89° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -15～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 21.5”Projected Capacitive Touchscreen, | |
Support System | 10 points in win7 | |
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
2. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
3. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Why choose us?
1.Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What's your MOQ?
Our minimum order quantity is 1pc only.
3. What is your warranty period?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal,Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
