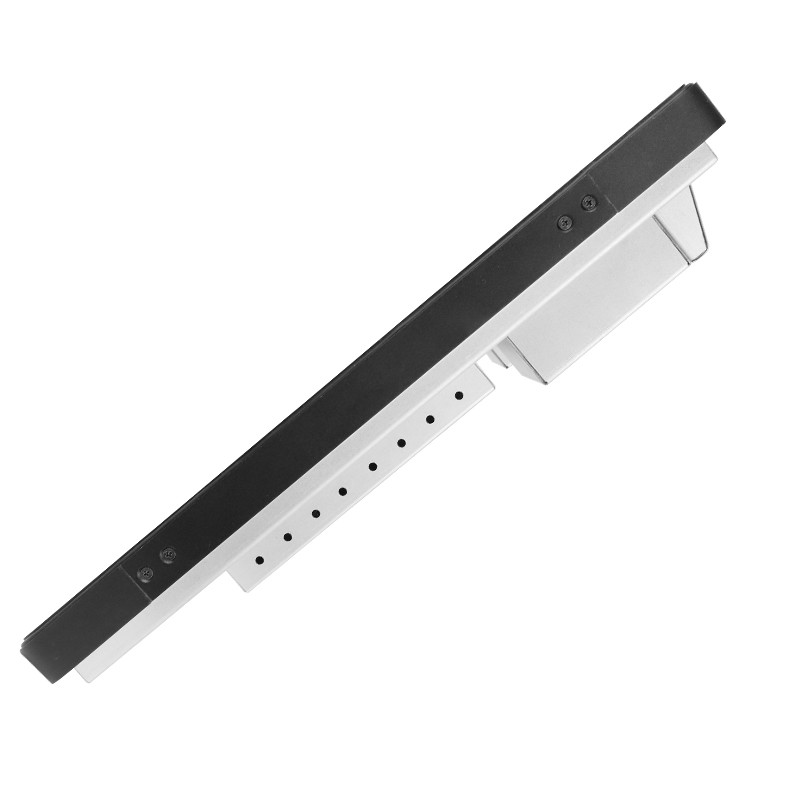

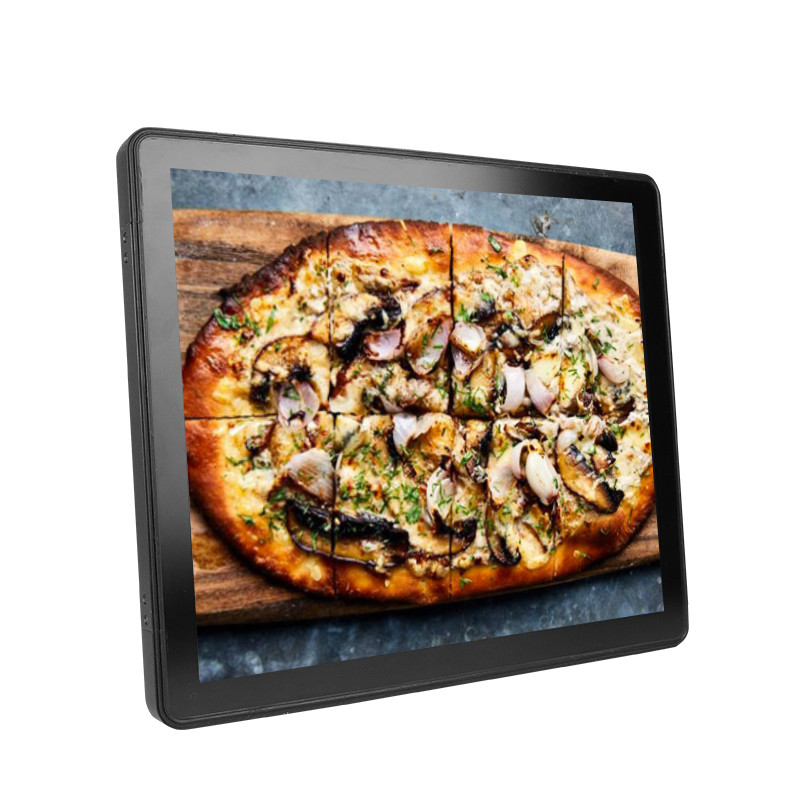

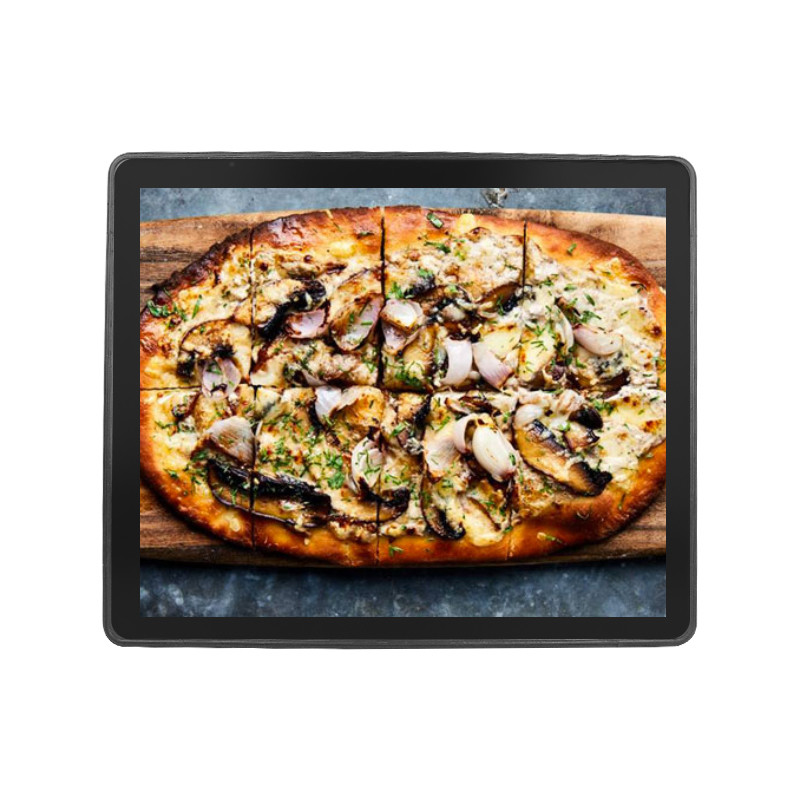

1000 Nit LCD High Brightness Touch Monitor 19 Inch For Kiosk Vending Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Support Colors | 16.7M | Suggested Resolution | 1280*1024 @ 60Hz |
|---|---|---|---|
| Contrast Ratio ( | 1000:1 | Video Input | VGA/HDMI |
| Active Area | 378*302.5 (mm) | Brightness-Pure LCD Panel | ≥1000cd/m² |
| Display Type | 5 : 4 Ratio 19" TFT-LCD | Product Name | High Brightness Touch Monitor |
| Touch Screen Type | 19”Projected Capacitive Touchscreen | Support System | Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Touch Input | USB | MTBF | ≥ 30,000 Hours |
| High Light | 1000Nit High Brightness Touch Monitor,High Brightness Touch Monitor 19Inch,Kiosk 19 Inch Touch Monitor | ||
Product Description
19 Inch 1000 Nit High Brightness Lcd Monitor For Kiosk, Vending Machine Touch Screen
High Brightness Touch Monitor Main Features
1. Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
2. IP65 grade water-proof,dust-proof for front panel.
3. Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
4. Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
5. Compatible with various industrial systems/application.
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0190U-CA4PH（P/N:KOT-190P-056） | |
Series | OT | |
Active Area | 378*302.5 (mm) | |
Monitor Dimensions (W*H*D) | 433.8*358.5*67.1(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1000cd/m² |
With Touch Monitor | 830cd/m² | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -10～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 19” Projected Capacitive Touchscreen | |
Touch System Interface | USB | |
Support System | 1point touch in XP,10 points touch in win7,win8 OS | |
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

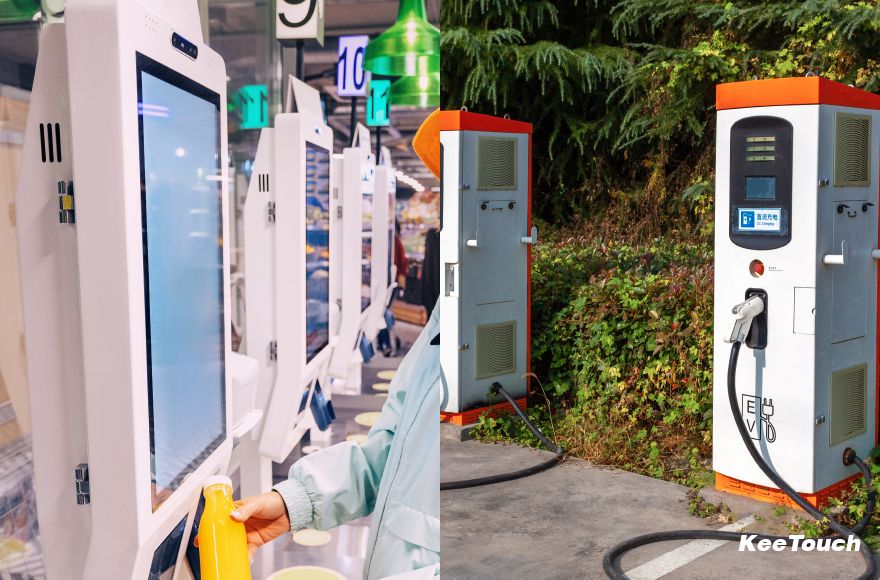

Applications
1. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
2. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
3. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
4. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Our Services & Strength
After Serive products manual & after service manual for each model
Before-sales support: Help customer designing item in reasonable, make our product to satisfy with customer demanding.
After-sales support:
1. Install the drivers for customer if in need.
2. Technical support any time
3. Service parts supplied in 3 years, 1 year as free for spare parts
4. Customer service and maintenance
5. Repair replacement and compensation of faulty products
6. Consulting,collecting feedback and resolving problem and improving model immediately
FAQ:
1. What is your warranty period?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
2. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
3. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.）
4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
5. What package do you provide?
Our package usually is carton.
6. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
7. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
