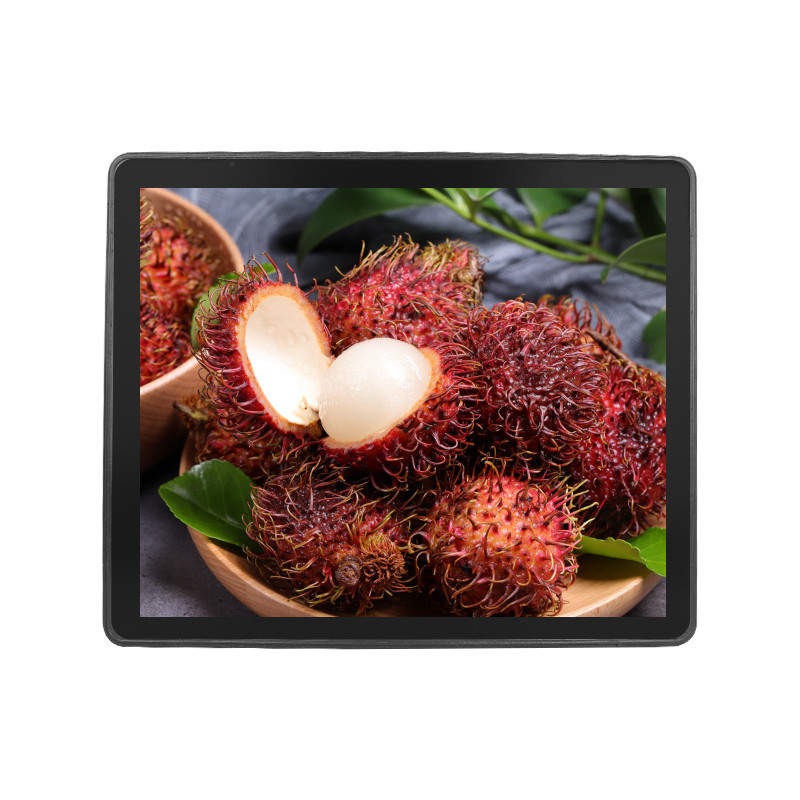

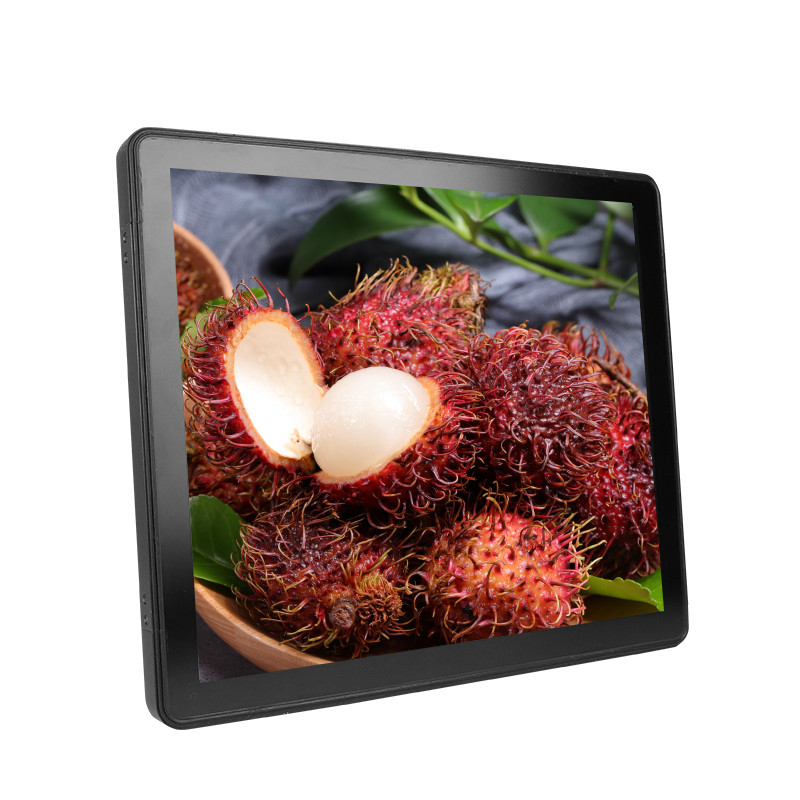

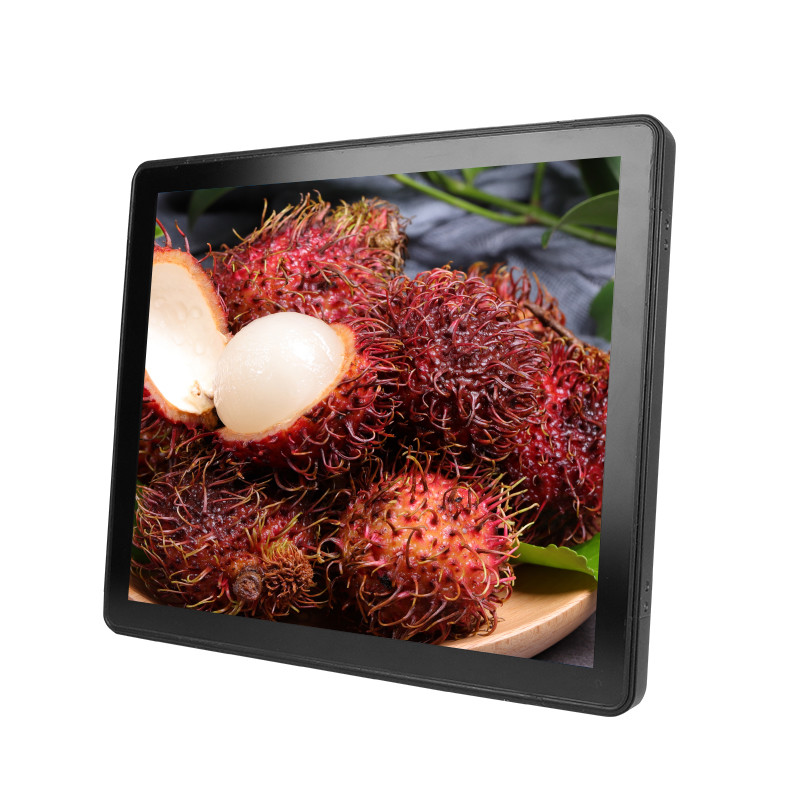

Flat Bezel 19 Inch Open Frame Touch Monitor , Touch Screen LCD Display 1280×1024 OEM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Support Colors | 16.7M | Suggested Resolution | 1280*1024 @ 60Hz |
|---|---|---|---|
| Contrast Ratio ( | 1000:1 | Video Input | VGA/HDMI |
| Active Area | 378*302.5 (mm) | Brightness-Pure LCD Panel | ≥1000cd/m² |
| Display Type | 5 : 4 Ratio 19" TFT-LCD | Product Name | High Brightness Touch Monitor |
| Viewing Angle(Typ.at CR＞10)) | 85°/85° | LED Back Light Life (Typ.) | 30,000 Hours |
| Touch System Interface | USB | ||
| High Light | LCD 19 inch open frame monitor,19 inch open frame monitor OEM,1280×1024 touch screen lcd display | ||
Product Description
19 Inch Flat Bezel Open Frame PCAP Touch Monitors High Brightness Touch Screen LCD Display
High Brightness Touch Monitor Main Features
1. 19 inch open frame display, Industrial level, IP65
2. 19 inch LCD screen 1280*1024
3. multi-points capacitive touch screen
4. metallic housing
5. VGA/HDMI port
6. Anti-glare, anti-explosion as option
7. higher brightness to 1000-1200nits
8. working temperature to -20℃-70℃
High Brightness Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0190U-CA4PH（P/N:KOT-190P-056） | |
Series | OT | |
Display Type | 5 : 4 Ratio 19" TFT-LCD | |
Active Area | 378*302.5 (mm) | |
Monitor Dimensions (W*H*D) | 433.8*358.5*67.1(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1000cd/m² |
With Touch Monitor | 830cd/m² | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -10～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |

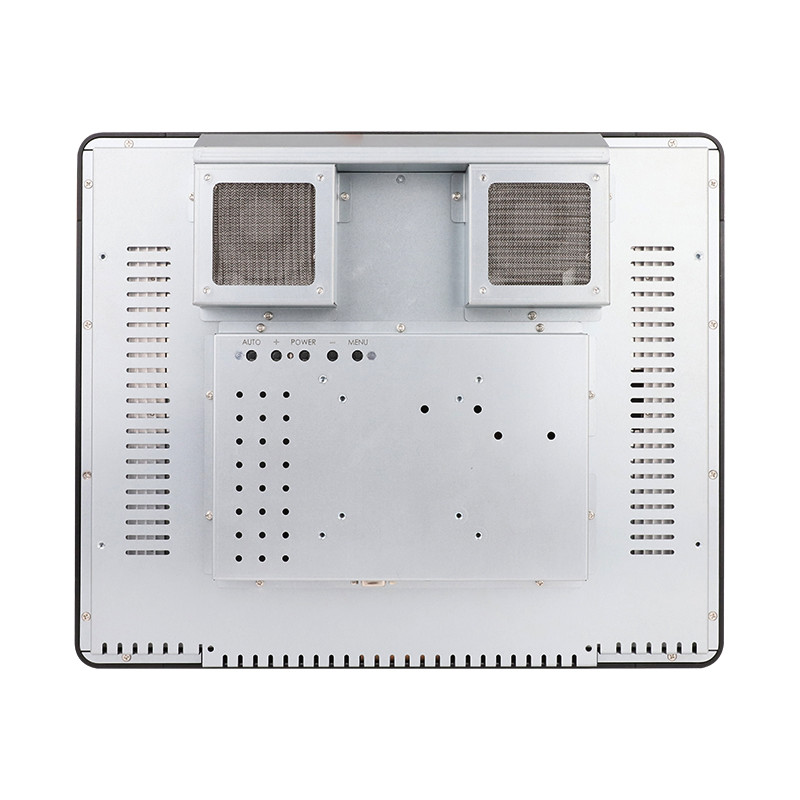

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 19” Projected Capacitive Touchscreen | |
Support System | 1point touch in XP,10 points touch in win7,win8 OS | |
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
2. ublic Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
3. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Our Services & Strength
After Serive products manual & after service manual for each model
Before-sales support: Help customer designing item in reasonable, make our product to satisfy with customer demanding.
After-sales support:
1. Install the drivers for customer if in need.
2. Technical support any time
3. Service parts supplied in 3 years, 1 year as free for spare parts
4. Customer service and maintenance
5. Repair replacement and compensation of faulty products
6. Consulting,collecting feedback and resolving problem and improving model immediately
FAQ:
1. How about mini quantity per item?
No MOQ
2. Shipping terms?
FOB Shenzhen /Ex-work/ CIF all ok.
3. Payment terms?
Paypal, T/T payment.
4. Sample production?
Lead time 1 day.
5. Bulk order lead time?
15 days lead time for 200-500pcs.
6. Quality warranty/RMA?
1 year free spare parts exchange for broken one, 3 years spare parts quality maintenance.
7. Technical supporting on hardware?
Products manual & after service manual for each model ; Senior engineers who can speak english to help buyers resolve problem right now.
