21.5 Inch High Brightness Touch Monitor VGA/DVI/HDMI Input For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Support Colors | 16.7M | Suggested Resolution | 1920*1080 @ 60Hz |
|---|---|---|---|
| Video Input | VGA/DVI/HDMI | Active Area | 476.1*268.1(mm) |
| Brightness-Pure LCD Panel | 1500cd/m² | Brightness-Touch Monitor | 1275cd/m² |
| Viewing Angle(Typ.at CR＞10)） | 89°/89°/89°/89° | Contrast Ratio (Typ.) | 1000:1 |
| High Light | VGA Kiosks High Brightness Touch Monitor,High Brightness Touch Monitor For Kiosks | ||
Product Description

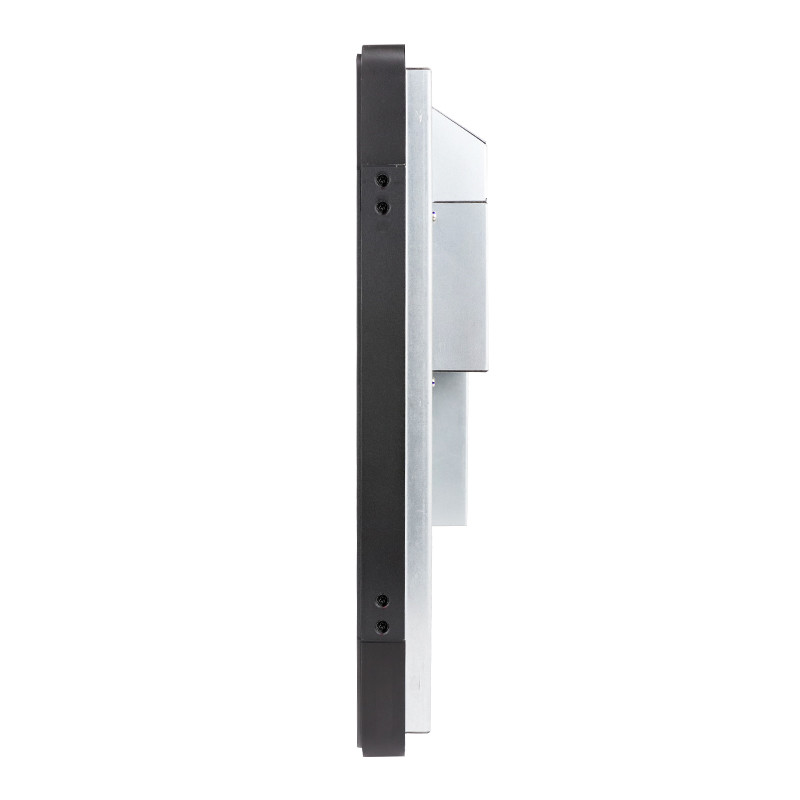

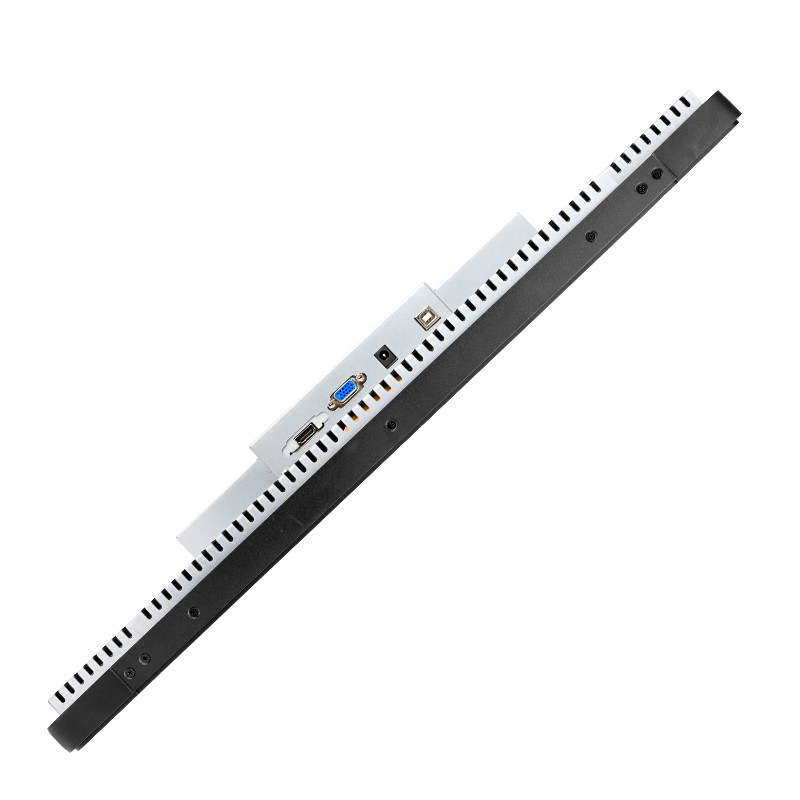

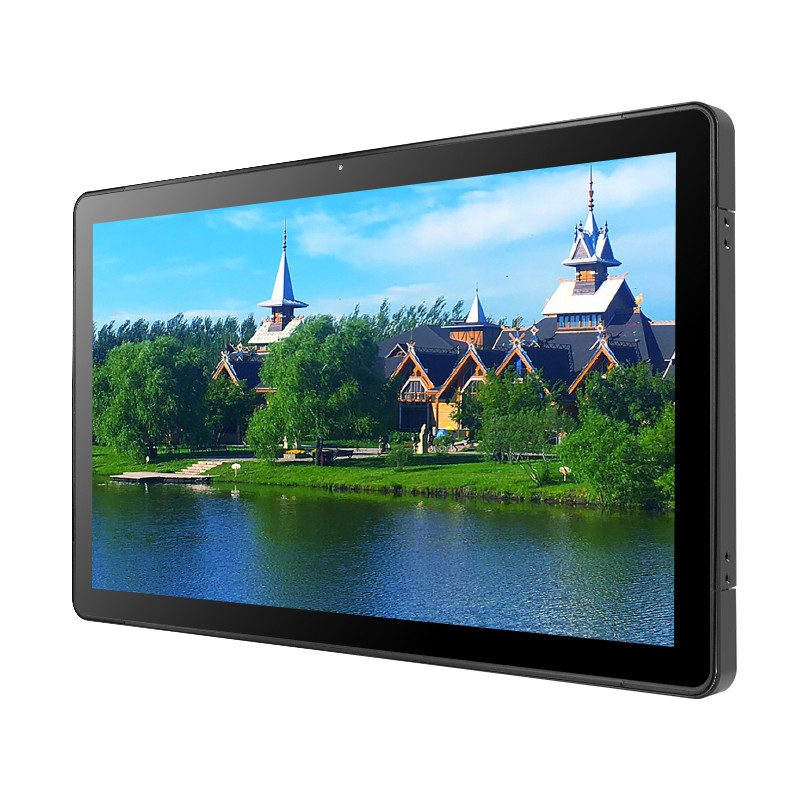

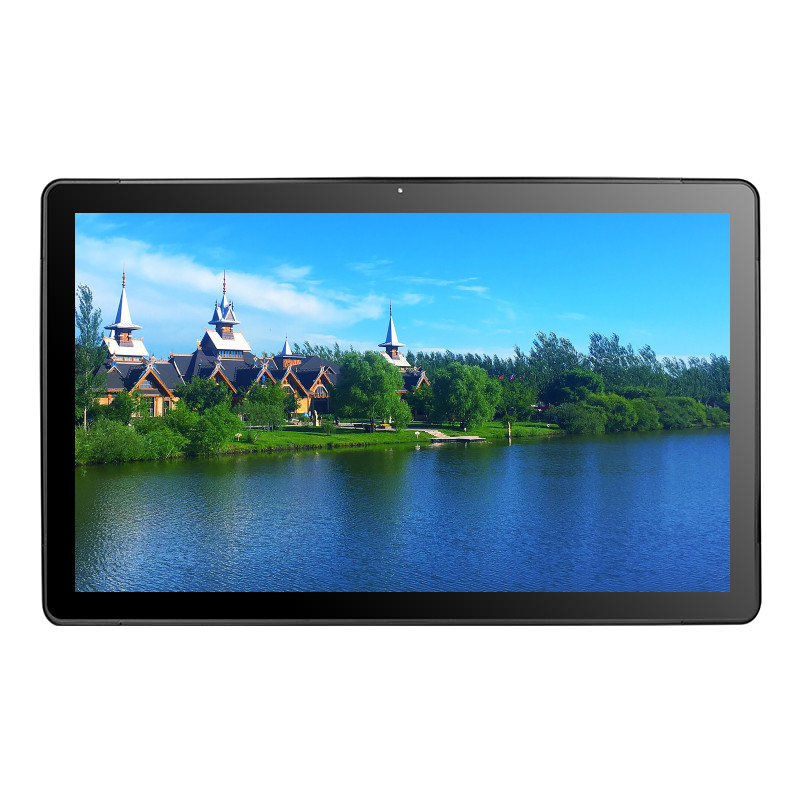

21.5 Inch High Brightness Touch Monitor 16:9 Ratio for Kiosks
This 21.5 inch high brightness module touch screen delivers high durability, accuracy and multi-touch support, which can be used normally in very harsh environments. The high brightness touch monitor is a type of display that is designed to produce brighter and clearer images. And it is an anti-glare, dust-proof, vandal-proof and IP65 waterproof touch monitor. Also, full sizes (7''-43'') can be for your option. And OEM & ODM services are available.
Specification of High Brightness Touch Monitor
Complete Machine | ||
Model No. | KOT-0215U-CA4PH (P/N:KOT-215P-028) | |
Series | ||
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 477.6*269.6(mm) | |
Monitor Dimensions (W*H*D) | 535.1*327.1*56.4(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1500cd/m² |
With Touch Monitor | 1245cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -15～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
LED Back Light Life (Typ.) | 30,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 21.5”Projected Capacitive Touchscreen, | |
Touch System Interface | USB(or Serial port,one point) | |
Support System | 10 points in win7 | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
High Brightness module touch screen are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products' prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the high brightness touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the high brightness touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
