16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor

16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor 16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor 16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor 16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor 16/9 Ratio High Brightness Touch Monitor 32 Inch Anti Vandal multi touch Monitor
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-320P-025(KOT-0320U-CA4PH)
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

carton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 32" TFT-LCD
Suggested Resolution1920x1080 @ 60HzAgency ApprovalsCCC, UL, FCC, CE, CB, RoHS
Response Time≤10msSupport SystemXP,WIN7,WIN8,WIN10,Linux,Android
Light Transmittance≥83%Power Consumption≤150W/190W/240W
High Light

Vandal proof High Brightness Touch Monitor

,

Vandal proof Multi Touch Monitor

,

Anti Vandal Multi Touch Monitor

Leave a Message
Product Description

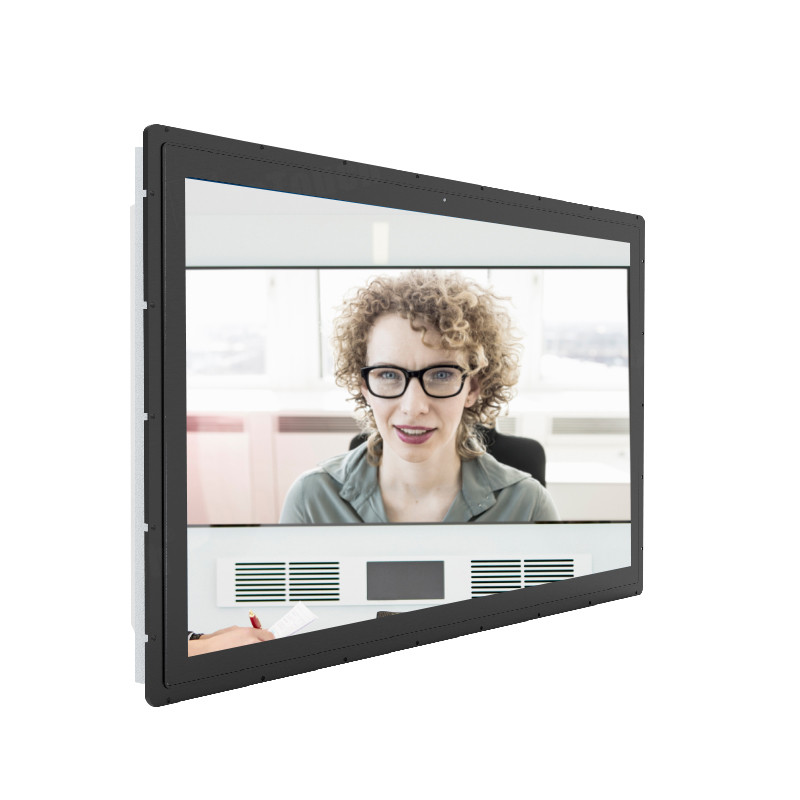

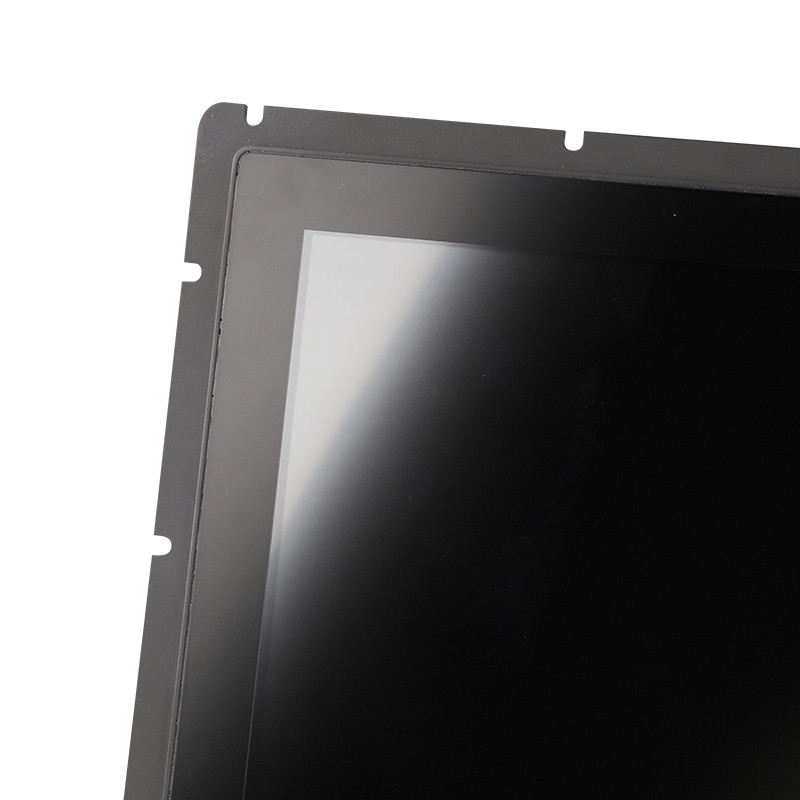

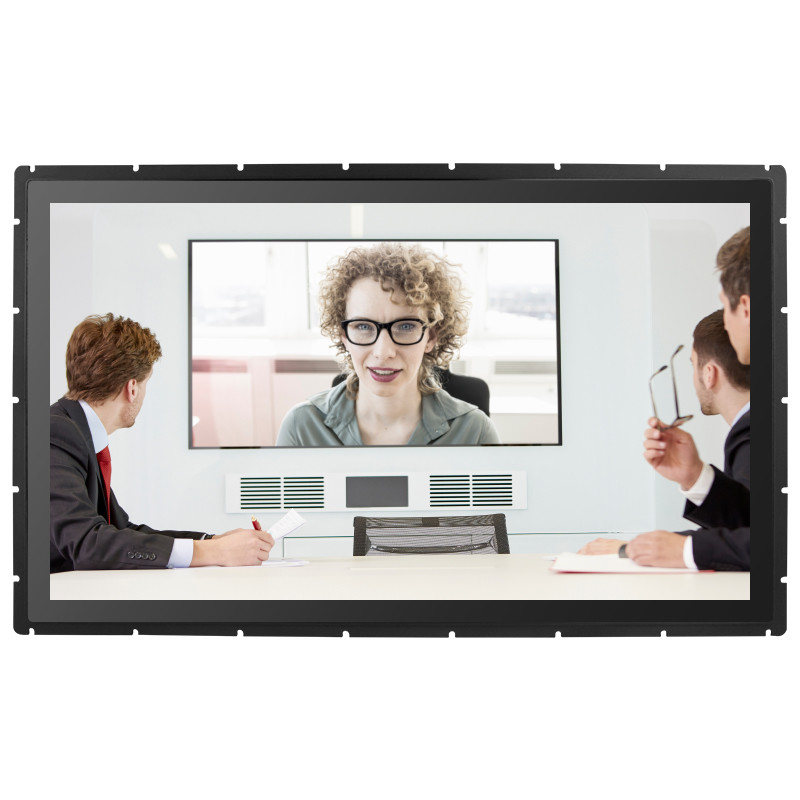

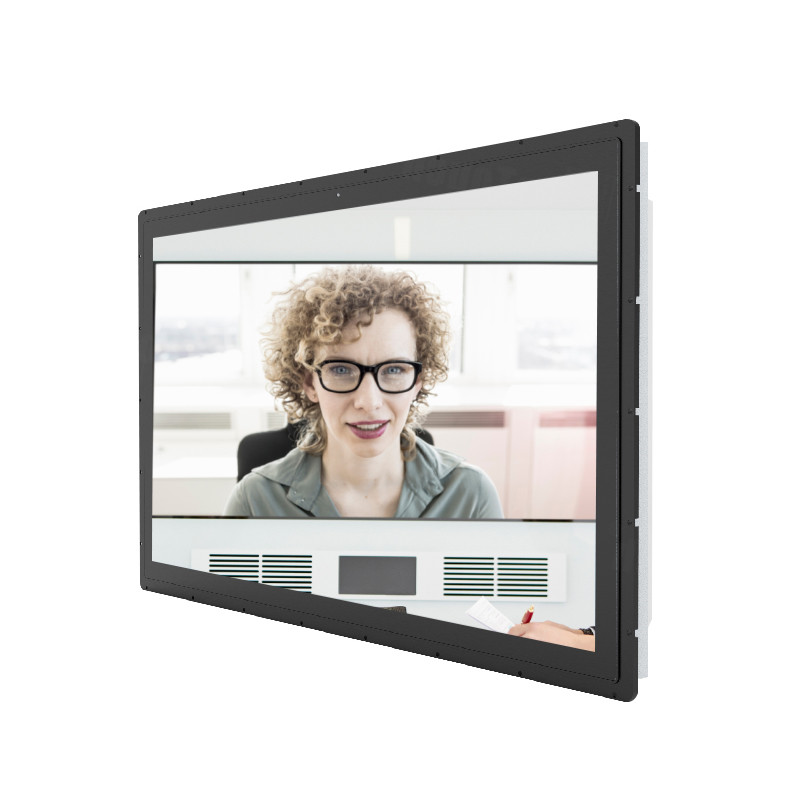

32 Inch High Brightness Touch Monitor 16:9 Ratio Anti-vandal Anti-glare


This 32 inch high brightness interface touch screen delivers high durability, accuracy and multi-touch support, which can be used normally in very harsh environments. The high brightness touch monitor is a type of display that is designed to produce brighter and clearer images compared to traditional displays. It is an anti-glare, dust-proof, vandal-proof and IP65 front frame waterproof high brightness touch monitor. Also, full sizes (7''-43'') can be offered.




High Brightness Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0320U-CA4PH (P/N:KOT-320P-025)

 Display Type

16:9 Ratio 32" TFT-LCD

 Active Area

698.4*392.85   (mm)

 Monitor Dimensions (W*H*D)

780*474*84.2(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

1000cd/m² , 1500cd/m² , 2000cd/m²

With Touch Monitor

850cd/m² , 1250cd/m² , 1650cd/m²

 Response Time (Typ.)

6.5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

4000:1(Typ.)/3000:1(Min.)

 Video Input

VGADVIHDMI

 Frequency (H/V)

60～73KHz / 47～63Hz

 Power Supply

Type: External brick

Display voltage: DC 24V/ 10A
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

30,000 Hours

 LED Back Light Life (Typ.)

30,000 Hours

 Power Consumption

≤150W/190W/240W

 Mount Interface

 Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

32" Capacitive touch screens

Touch   input

USB

Response Time

≤10ms

Hardness

≥6H

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.






Products Applications

High Brightness 10 point multi touch screen are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
