Antibacterial 23 Inch Touch Screen Monitor Dust Proof IP65 Waterproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSeries | OT | Support Colors | 16.7 |
---|---|---|---|
Video Input | VGA/DVI | LED Back Light Life | ≥30,000 Hours |
Hardness | 6H | Response Time | 14m |
Power Consumption | ≤19W | Product Name | Antibacterial Touch Screen |
High Light | Antibacterial 23 Inch Touch Screen Monitor,IP65 23 Inch Touch Screen Monitor,Waterproof 23 inch touch monitor |

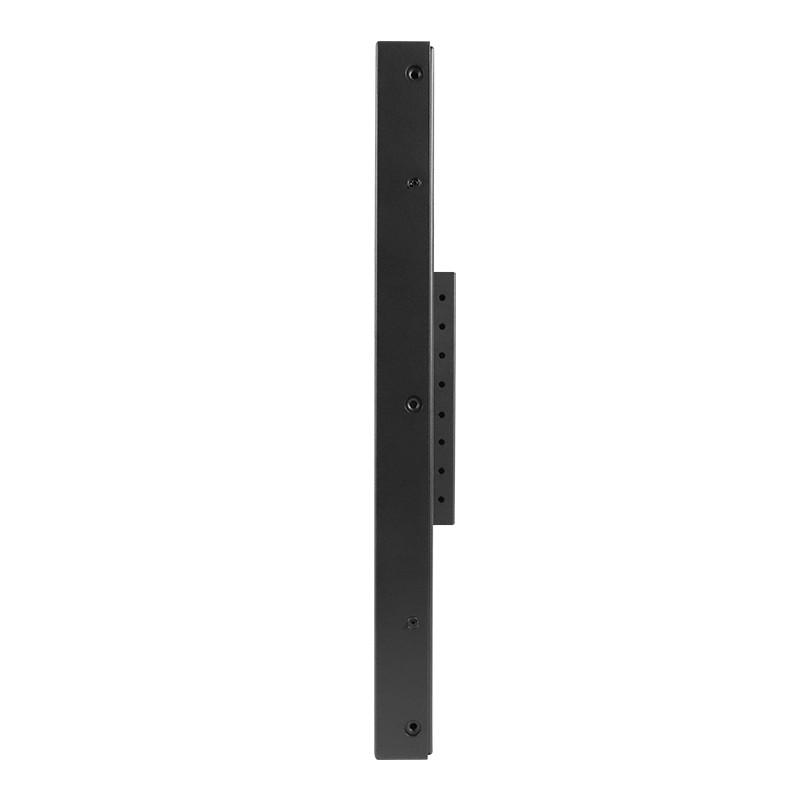

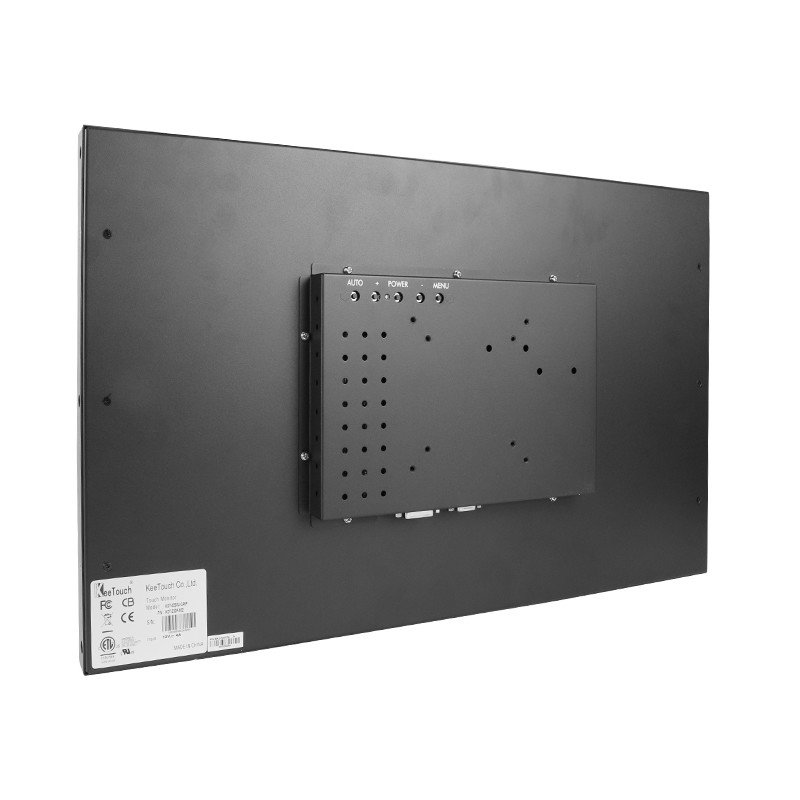

23 Inch Antibacterial Touch Screen Monitor Antiglare Anti-Vandal IP65
Antibacterial Touch Screen Main Features
Using ion-exchange process, permanent antibacterial
Ag+ antibacterial, security, broad-spectrum and long-acting, no drug resistance
With antibacterial function, the bacteria on the panel's surface is reduced by 99.9%
Multi-points Antibacterial Touch Screen, PCAP touch panel, high sensitive and fast-response
High resolution, high contrast ratio Antibacterial Touch Screen, full viewing angle, perfect interactive experience
Vandal-proof and dust-proof, IP65 surface waterproof
VGA+DVI+HDMI interfaces,USB for touch
Multiple mounting options, support system: XP,WIN7,WIN8,WIN10, Linux, Android
Other sizes are available (15''- 43'')
Antibacterial Touch Screen Specifications
Complete Machine | ||
Model No. | KOT-0230U-CA5P (P/N:KOT-230P-802) | |
Series | OT | |
Display Type | 16:9 Ratio 23" TFT-LCD | |
Active Area | 509.184*286.416(mm) | |
Monitor Dimensions (W*H*D) | 569*348.2*47.2(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 14ms | |
Viewing Angle(Typ.at CR>10)) | Horizontal(left/right) | 89°/89° |
Vertical(up/down) | 89°/89° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 37.9~80KHz / 60~75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0~50°C |
Operating RH | 20%~80% | |
Storage Temp. | -20~60°C | |
Storage RH | 10%~90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight(N.W/G.W) | 7.7Kg(1pcs)/20.8Kg(2pcs in one package) | |
Package dimensions | 650*435*195(mm)(2pcs in one package) | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year |
Touch Screen | |
Touch Type | 23" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 513.80*291.00(mm) |
Thickness | 5.3±0.35(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What's your MOQ for the Antibacterial Touch Screen?
Our minimum order quantity is 1pc only.
3. What is your warranty period the Antibacterial Touch Screen?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the Antibacterial Touch Screen according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
