17 Inch PCAP Touch Monitor, TFT Panel Monitor 1280×1024 Resolution

17 Inch PCAP Touch Monitor, TFT Panel Monitor 1280×1024 Resolution
17 Inch PCAP Touch Monitor, TFT Panel Monitor 1280×1024 Resolution 17 Inch PCAP Touch Monitor, TFT Panel Monitor 1280×1024 Resolution 17 Inch PCAP Touch Monitor, TFT Panel Monitor 1280×1024 Resolution 17 Inch PCAP Touch Monitor, TFT Panel Monitor 1280×1024 Resolution 17 Inch PCAP Touch Monitor, TFT Panel Monitor 1280×1024 Resolution
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0170U-CA4P
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contrast Ratio (Typ.)1000:1Suggested Resolution1280*1024 @ 60Hz
Brightness300cd/m²Video InputVGA/DVI
Support Colors16.7MResponse Time5s
Thickness3.9±0.3(mm)Touch Test≥50,000,000 Times
Product NamePCAP Touch MonitorWarrantyOne Year
High Light

17 Inch PCAP Touch Monitor

,

TFT PCAP Touch Monitor 1280×1024

,

PCAP TFT Panel Monitor 1280×1024

Leave a Message
Product Description

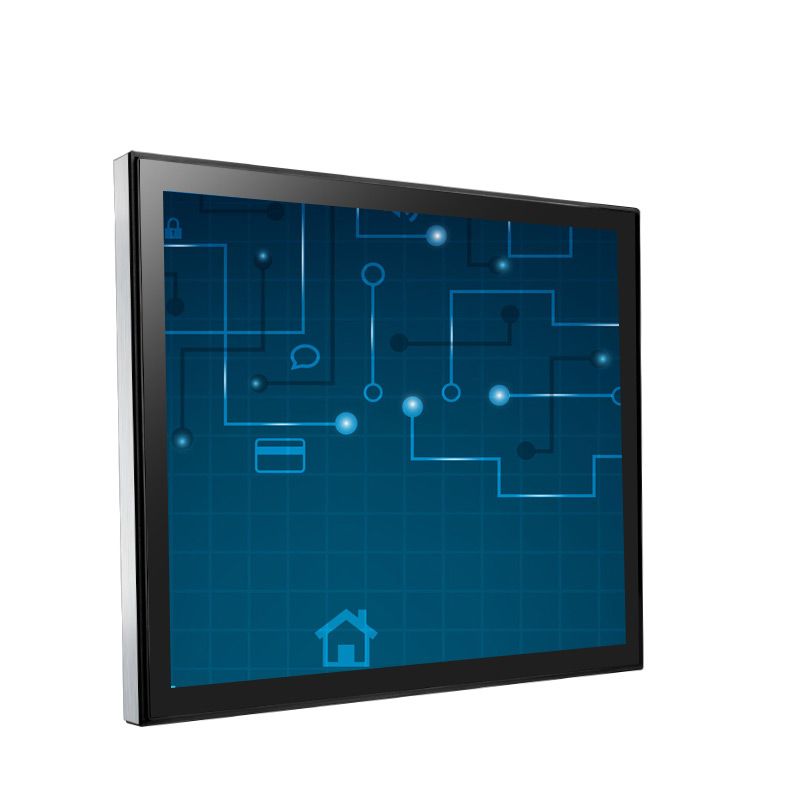

17 Inch PCAP Touch Monitor TFT LCD Panel Resolution 1280*1024 HD VGA Input



PCAP Touch Monitor Description


Using PCAP Technology, it supports multi-points for major operating systems XP, WIN7, WIN8, WIN10, Linux, Android. The PCAP Touch Monitor deliver high sensitive and fast response excellent touch experience. It is anti-vandal with 3.9 mm tempered glass and compliant with UL-60950 &IK-08 impact testing.





PCAP Touch Monitor Specifications



Complete Machine

Model No.

KOT-0170U-CA4P

Series

OT

Display Type

5:4 Ratio 17" TFT-LCD

Active Area

337.9*270.3(mm)

Monitor Dimensions (W*H*D)

378.9*313.3*47.3(mm)

Suggested Resolution

1280*1024 @ 60Hz

Support Colors

16.7M

Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

Response Time (Typ.)

5ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/DVI

Frequency (H/V)

37.9～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

Weight（ N.W/G.W ）

4.1Kg(1pcs)/9.85Kg(2pcs in one package)

Package dimensions

466*185*403(mm)(2pcs in one package)

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount

OSD Control

Buttons

AUTO, +,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year


Touch Screen

Touch Type

17" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

340.92*273.34(mm)

Thickness

3.9±0.3(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%




Why Choose Us



Price:

With the experience of 16 years in the display industry, we already accumulate many leading suppliers for raw materials, which help us save the cost effectively and support our clients with a very competitive price.

Customized

Your any special request for the design, function, logo, package, (software & hardware), etc, our professional R & D team can make them reality at our factory.

Quality:

Our products are certified with CE, UL, CB, BIS, ISO 14001, ISO 9001 etc, they are all go through strict and comprehensive quality management system test, which enable us to control every production aspect and ensure the reliable and good performance of products from the very beginning to the finished process.




Applications

Our PCAP touch monitors are widely mounted in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



17 Inch PCAP Touch Monitor , TFT Panel Monitor 1280×1024 Resolution 0






FAQ

1. Are you a manufacturer?

    Yes, KeeTouch is a professional touch product manufacturer for over 18 years, located in Shenzhen, China.



2. What’s your MOQ for the PCAP Touch Monitor?

    Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP Touch Monitor?

    Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
