Light Bar PCAP 23 Inch Touch Screen Monitor For Slot Machines OEM ODM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | OT , With LED Flexible Stripes | Display Type | 16:9 Ratio 23” Active Matrix TFT-LCD |
|---|---|---|---|
| Support Colors | 16.7M | Video Input | VGA/DVI/HDMI |
| Horizontal(left/right) | 89°/89° | Vertical(up/down) | 89°/89° |
| Storage Temp. | -20～60°C | MTBF | 30,000 Hours |
| Product Name | PCAP Touch Monitor | Warranty | One Year |
| High Light | ODM 23 Inch Touch Screen Monitor,PCAP 23 Inch Touch Screen Monitor,Light Bar 23 inch touch monitor | ||
Product Description
Light Bar 23 Inch PCAP Touch Screen Gaming Monitors For Slot Machines
PAP Touch Monitor Description
Designed with LED light strips, this PCAP touch monitor is very eye-catching and fashionable for the gaming, casino and amusement industry. They use capacitive touch screen with 10poitns touch, high transmission, drift-free operation, more than 50,000,000 times touch test, which offers smooth and accurate touch experience.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0230U-CA5P | |
Series | OT , With LED Flexible Stripes | |
Display Type | 16:9 Ratio 23” Active matrix TFT-LCD | |
Active Area | 511.8mm×289mm | |
Monitor Dimensions (W*H*D) | 588.2*365.4*45(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel (Brightness from 300~1000cd/m² can be customized) | 250 cd/m² |
With Projected Capacitive Touchscreen | 212 cd/m² | |
Response Time (Typ.) | 14ms | |
Viewing Angle(Typ.at CR＞10)） | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/HDMI/DVI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 7.5kg/17.3kg(2 pcs) | |
Package dimensions | 703×181×485(mm) (2pcs in one package) | |
Power Consumption | 37W(approximately, Includes touch display and LED lamp) | |
Mount Interface | VESA 100*300mm and 100*400mm | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 23” Projected Capacitive Touchscreen 10 Points Touch |
Touch Input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥85% |
Active Area | 511.8mm×289mm |
Thickness | 4.3±0.2(mm) |
Touch Test | More than 50,000,000 touches in one location without failure |
Input Voltage | DC 5V±5% |

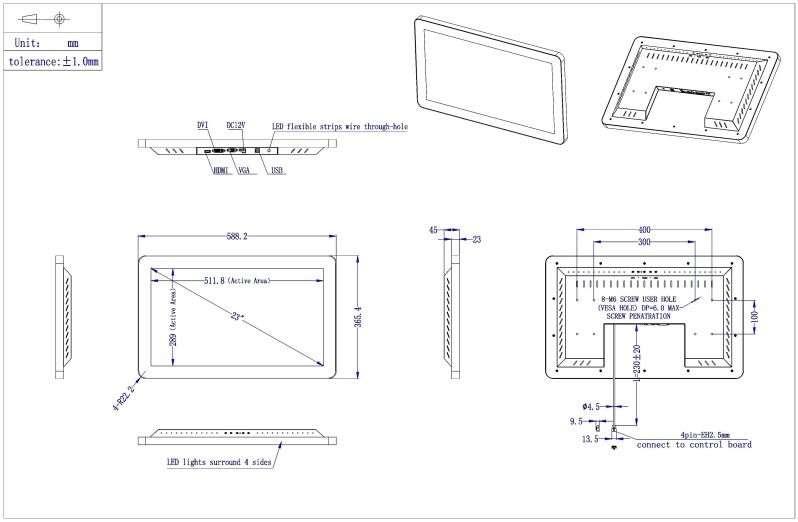

PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch PCAP touch monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
5. What package do you provide?
Our package usually is carton.
