Vandal Proof 32 Inch Open Frame Monitor For Smart Lockers Kiosks
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | KeeTouch |
| Certification | CCC, UL, FCC, CE, CB, RoHS |
| Model Number | KOT-0320U-IR4P (KOT-320P-010) |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | two pieces per carton |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10000 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 16:9 Ratio 31.5" TFT-LCD | Suggested Resolution | 1920x1080 @ 60Hz |
|---|---|---|---|
| Contrast Ratio | 1000:1 | Video Input | VGA\DVI\HDMI |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | Regular Warranty | 1 Year |
| Touch Test | Test ≥50,000,000 Times | Product Name | Infrared Touch Monitor |
| High Light | Lockers 32 Inch Open Frame Monitor,Kiosks 32 Inch Open Frame Monitor | ||
Product Description
32 Inch Infrared Touch Monitor Open Frame For Smart Lockers Kiosks
Infrared Touch Monitor Main Features
With infrared touch technology, 1- 40 points optional
High resolution, high contrast infrared touch monitor with wide viewing angle
IP65 surface waterproof, vandal-proof Infrared Touch Monitor
Industrial grade, lasting touch, durable even in harsh environment
Multiple mounting options include VESA mount, horizontal vertical brackets mount
VGA + DVI + HDMI interfaces,USB for touch
Support system: XP, WIN7, WIN8,WIN10, Linux, Android
Other sizes are optional (7’’- 32’’)
Infrared Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0320U-IR4P (P/N:KOT-320P-010) | |
| Series | OT | |
| Display Type | 16:9 Ratio 31.5" TFT-LCD | |
| Active Area | 698.4*392.85(mm) | |
| Monitor Dimensions (W*H*D) | 756*453*75.7(mm) | |
| Suggested Resolution | 1920x1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 280cd/m2 |
| With Touch Monitor | 252cd/m2 | |
| Response Time (Typ.) | 8ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGADVIHDMI | |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 13Kg(1pcs)/15Kg(1pcs in one package) | |
| Package dimensions | 851*153*553(mm)(1pcs in one package) | |
| Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W | |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 32" Infrared touch screen |
| Touch input | USB |
| Response Time | ≤32ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 702.6*395.8±0.5(mm) |
| Thickness | <5(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |

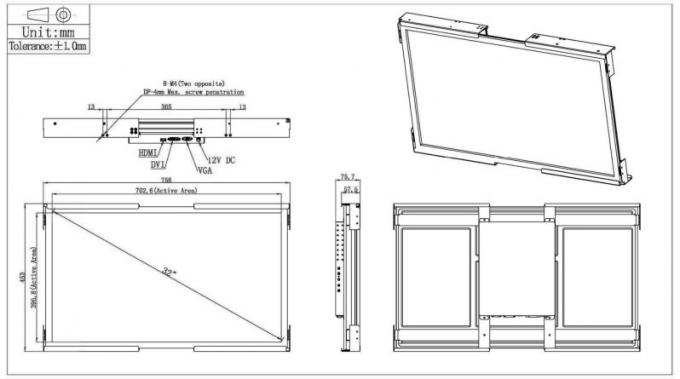

Infrared Touch Monitor Mechanical Dimensions

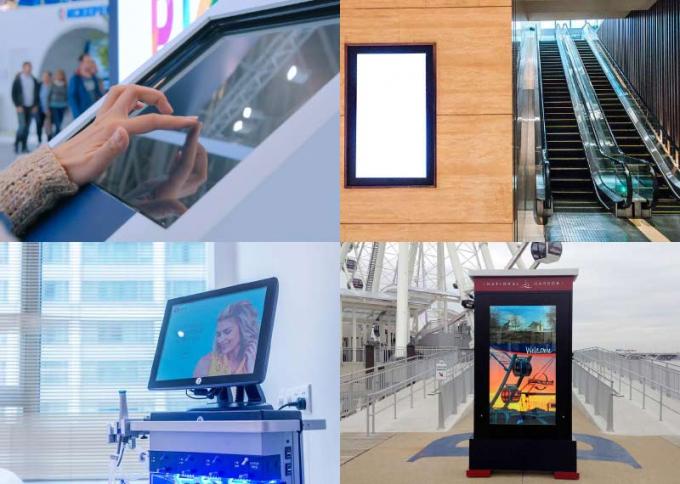

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the infrared touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the infrared touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the infrared touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
